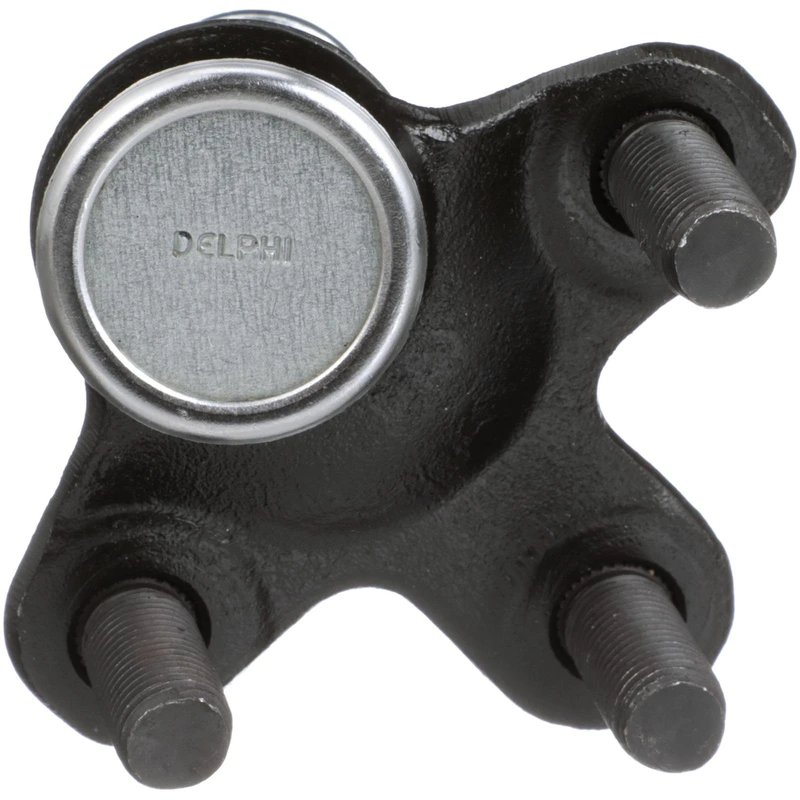

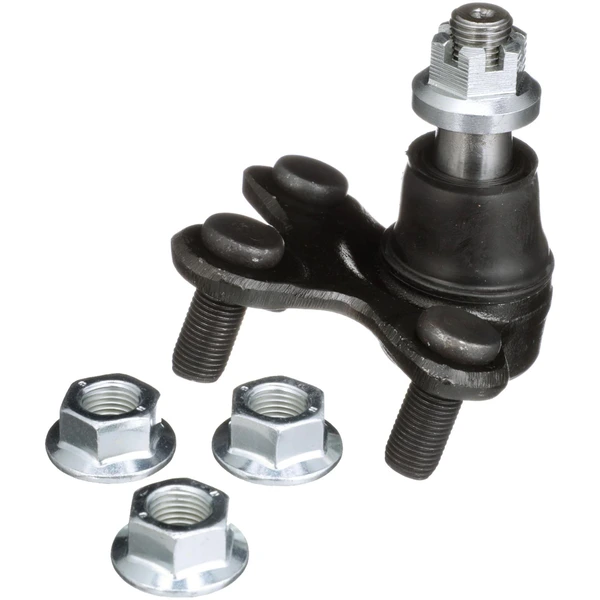

Ball Joint - Front Lower - Delphi TC3803
Part # TC3803
Item # 1001VD1R
$59.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Lower
- Material
- Steel
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushing Quantity
- 0
- Bushings Included
- No
- Castle Nut Included
- Yes
- Cotter Pin Hole
- Yes
- Cotter Pin Included
- Yes
- Distance Between Mounting Holes (mm)
- 35.10
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Greaseable
- No
- Height (in)
- 3.307
- Height (mm)
- 84.00
- Length (in)
- 3.860
- Length (mm)
- 98.00
- Maximum Outside Diameter (in)
- 3.583
- Maximum Outside Diameter (mm)
- 91.00
- Mount Plate Included
- No
- Mounting Bolt Head Diameter (in)
- 0.709
- Mounting Bolt Head Diameter (mm)
- 18.00
- Mounting Bolt Length (in)
- 1.378
- Mounting Bolt Length (mm)
- 35.00
- Mounting Bolt Thread Length (in)
- 0.906
- Mounting Bolt Thread Length (mm)
- 23.00
- Mounting Bolt Thread Pitch (mm)
- 1.25
- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 3
- Mounting Type
- Bolt-In
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.752
- Stud Tapered End 1 Diameter (mm)
- 19.1
- Stud Tapered End 2 Diameter (in)
- 0.614
- Stud Tapered End 2 Diameter (mm)
- 15.6
- Stud Thread Length (in)
- 0.791
- Stud Thread Length (mm)
- 20.1
- Stud Thread Pitch (mm)
- 1.5
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Premium
- Washers Included
- No
- Width (mm)
- 91
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5122 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5122 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
06510TBAA00, 06510-TBA-A00Ā - ACURA, HONDA
TC3803Ā - DELPHI
6510TBAA00Ā - HONDA
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (41)vehicles
All
Acura
Honda
| 2019 - 2021 | Acura | RDX |
| 2016 - 2016 | Honda | Civic |
| 2017 - 2017 | Honda | Civic |
| 2017 - 2018 | Honda | Civic |
| 2017 - 2018 | Honda | Civic |
| 2017 - 2018 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2019 | Honda | Civic |
| 2017 - 2021 | Honda | CR-V |
| 2017 - 2021 | Honda | Clarity |
| 2018 - 2018 | Honda | Civic |
Highlights
Note detail
Shipping and warranty
Fast shipping
The order will be dispatched within 1 business day, and the package will arrive within your order's estimated date. Please click Shipping Policy for more details.
Easy return
Every order comes with a 90-day free return which means you don't have to pay for a return slip. Please click Return Policy for more details.
Warranty policy
All parts are quality-tested to meet the top-tier aftermarket standards. Please click Warranty Policy for more details.
Item description
Your vehicle's suspension and steering systems work together to provide a smooth and controlled ride. That's why we're proud to offer the Delphi TC3803 Ball Joint for the front lower. This ball joint is engineered to provide precise steering control and superior suspension support, helping to reduce vibrations and noise. Its high-quality materials and construction ensure durability and resistance to wear and tear, making it a reliable choice for your vehicle. Plus, its easy installation process means you can quickly upgrade your suspension and steering systems and enjoy a smoother, more controlled ride. Whether you're driving on winding roads or straight highways, the Delphi TC3803 Ball Joint has you covered. Choose A-Premium for all your auto part needs and experience the difference in quality and performance.
