Delphi

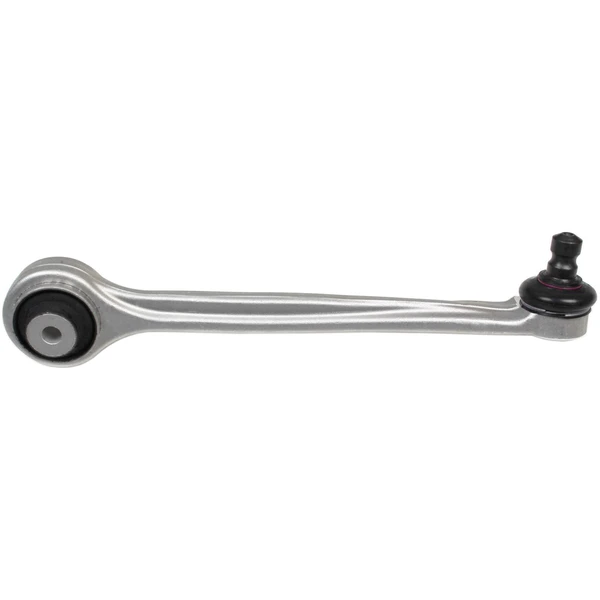

Control Arm and Ball Joint Assembly - Front Right Upper Forward - Delphi TC3797

Part # TC3797
Item # 1001XUZ9
$94.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Front Right Upper Forward
Ball Joint Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Right Upper Forward
Ball Joint Included
Yes
Adjustable
No
Ball Joint Mounting Type
Press In
Ball Joint Stud Type
Grooved
Boot Color
Black
Boot Material
Choloroprene Rubber (CR)
Bushing Color
Black
Bushing Inside Diameter (in)
0.402
Bushing Inside Diameter (mm)
10.20
Bushing Length (in)
1.969
Bushing Length (mm)
50.00
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Gray
Control Arm Construction
Casting/Forged
Control Arm Material
Aluminum
Control Arm Maximum Length (in)
12.470
Control Arm Maximum Length (mm)
316.75
Control Arm Maximum Width (in)
1.969
Control Arm Maximum Width (mm)
50.00
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Grade Type
Premium
Grease Fitting Included
No
Greaseable
No
Mounting Hardware Included
No
Mounting Hole Diameter (in)
0.402
Mounting Hole Diameter (mm)
10.20
Mounting Hole Quantity
1
Pre-Greased
Yes
Steering Type
Power
Thread Direction
Clockwise (Right)
Type
Control Arm and Ball Joint Assembly
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā— With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā— Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā— Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā— Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 8044 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
8W0407506C, 8W0 407 506 CĀ - AUDI, VOLKSWAGEN
TC3797Ā - DELPHI

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Audi
2017 - 2019AudiA4
2017 - 2022AudiA4 Quattro
2017 - 2022AudiA4 allroad
2017 - 2022AudiS4
2018 - 2018AudiA5 Sportback
2018 - 2018AudiS5 Sportback
2018 - 2019AudiRS5
2018 - 2022AudiA5 Quattro
2018 - 2022AudiS5
2019 - 2019AudiRS5 Sportback
2021 - 2022AudiRS5
2021 - 2022AudiRS5 Sportback
