Delphi

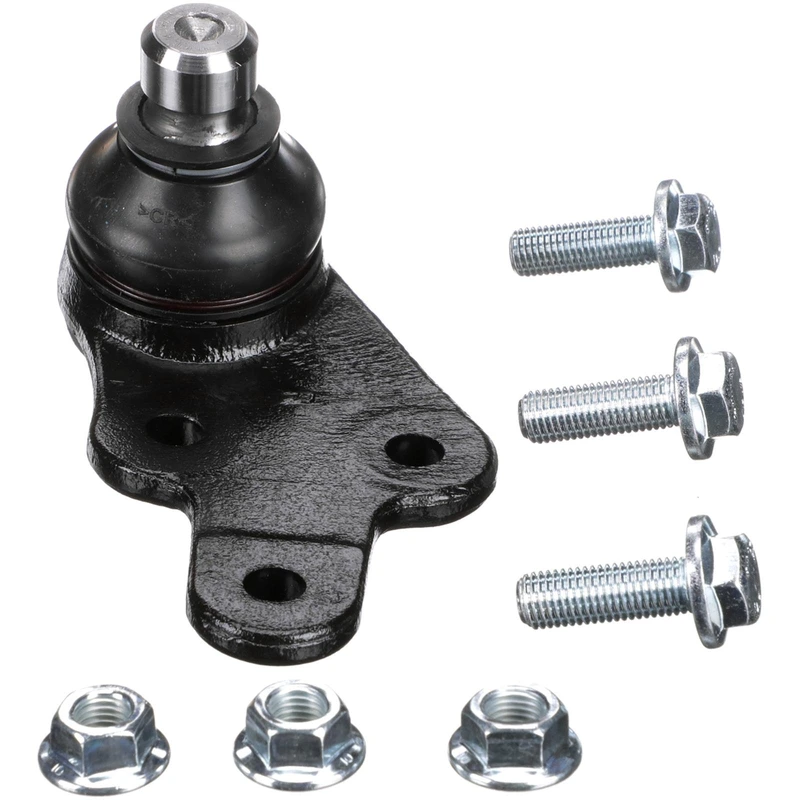

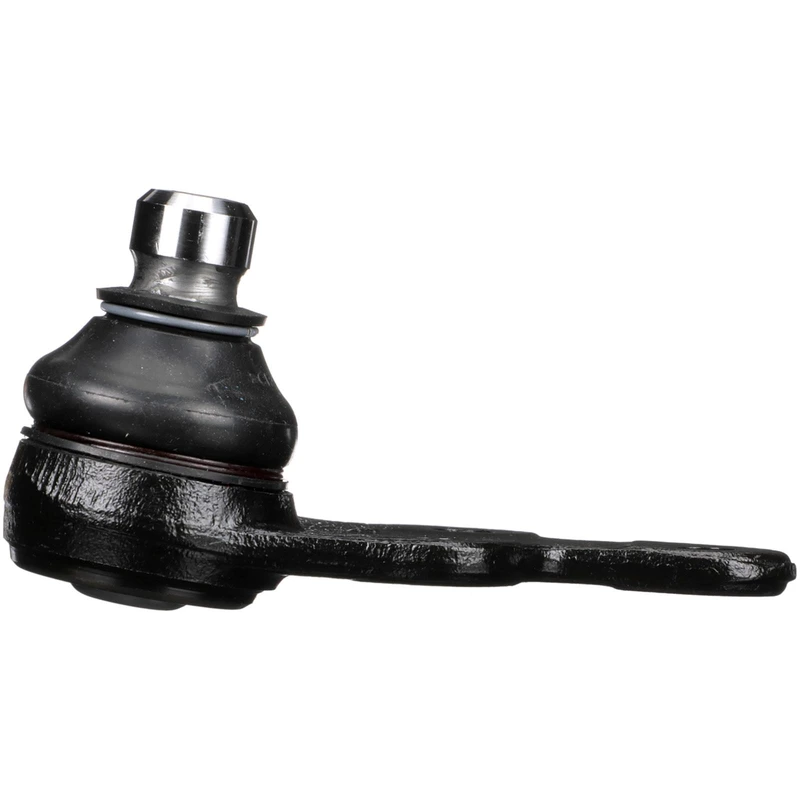

Ball Joint - Front Right Lower - Delphi TC3672

Part # TC3672
Item # 1001VKE7
$28.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
One Set
Installation Position
Front Right Lower
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
One Set
Installation Position
Front Right Lower
Material
Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Color
Black
Adjustable
No
Ball Joint Assembly
Yes
Bushings Included
No
Castle Nut Included
No
Cotter Pin Hole
No
Cotter Pin Included
No
Dust Boot Included
Yes
Dust Boot Material
Rubber
Grease Fitting Included
No
Greaseable
No
Height (in)
2.827
Height (mm)
71.80
Mount Plate Included
No
Mounting Bolt Head Diameter (in)
0.878
Mounting Bolt Head Diameter (mm)
22.30
Mounting Bolt Length (in)
1.535
Mounting Bolt Length (mm)
39.00
Mounting Bolt Shank Diameter (in)
0.394
Mounting Bolt Shank Diameter (mm)
10.00
Mounting Bolt Thread Diameter (in)
0.390
Mounting Bolt Thread Diameter (mm)
10.00
Mounting Bolt Thread Length (in)
1.181
Mounting Bolt Thread Length (mm)
30.00
Mounting Bolt Thread Pitch (mm)
1.25
Mounting Bolts Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
3
Nuts Included
Yes
Stud Thread Diameter (in)
0.83
Stud Thread Diameter (mm)
21.08
Tapered Stud
No
Type
Ball Joint
Washers Included
No
Width (mm)
107.8
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5100 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K500346 - MOOG CHASSIS PRODUCTS, PRECISION CHASSIS
MCF2228 - FORD
TC3672 - DELPHI
CV6Z3078C, CV6Z 3078-C - FORD
523623, 523-623 - DORMAN
1723323, 1 723 323 - FORD
CB85464 - MAS INDUSTRIES
8V413A423AB, 8V41-3A423-AB - FORD
8V413A423AC, 8V41-3A423-AC - FORD
RK622161 - MOOG CHASSIS PRODUCTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Ford
2013 - 2013FordEscape
2014 - 2014FordEscape
2018 - 2018FordEscape
2019 - 2019FordEscape
