Delphi

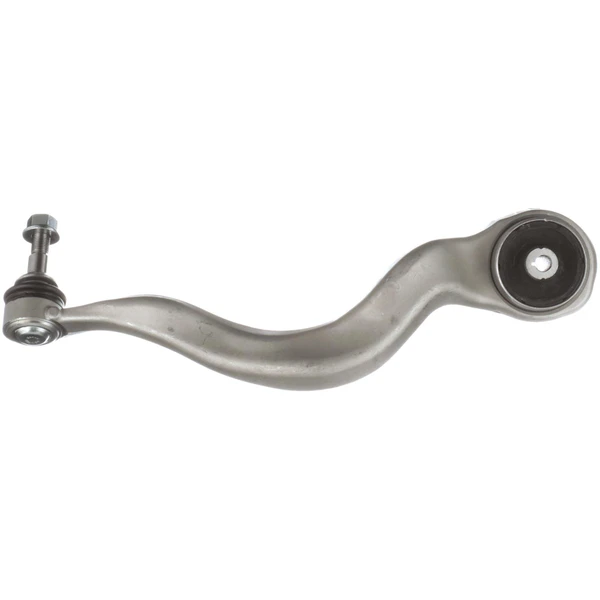

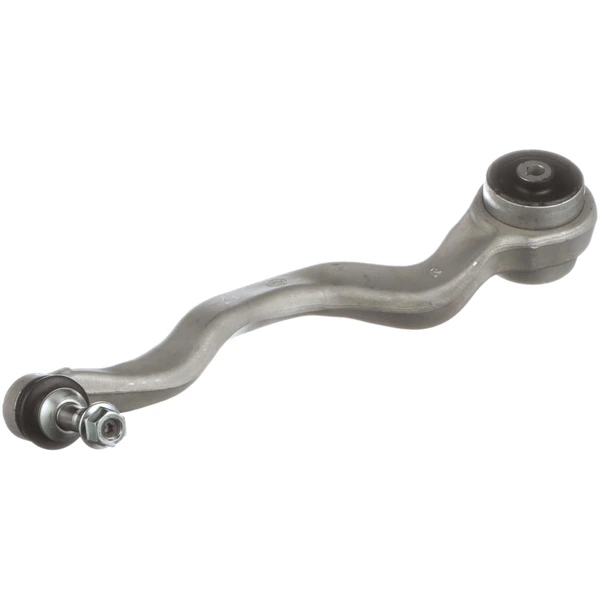

Control Arm and Ball Joint Assembly - Front Right Lower Forward - Delphi TC3438

Part # TC3438
Item # 1001XTEX
$177.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Front Right Lower Forward
Ball Joint Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Right Lower Forward
Ball Joint Included
Yes
Adjustable
No
Ball Joint Mounting Type
Machined
Ball Joint Stud Length (in)
3.228
Ball Joint Stud Length (mm)
82.00
Ball Joint Stud Type
Threaded
Ball Joint Thread Diameter (in)
0.551
Ball Joint Thread Diameter (mm)
14.00
Bearing Material
Plastic
Boot Color
Black
Boot Material
Choloroprene Rubber (CR)
Bushing Color
Black
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Gray
Control Arm Construction
Casting/Forged
Control Arm Material
Aluminum
Control Arm Maximum Length (in)
17.795
Control Arm Maximum Length (mm)
452.00
Control Arm Maximum Width (in)
5.827
Control Arm Maximum Width (mm)
148.00
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Finish
Uncoated
Grade Type
Premium
Greaseable
No
Locking Nut Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Diameter (in)
0.480
Mounting Hole Diameter (mm)
12.20
Mounting Hole Quantity
1
Pre-Greased
Yes
Steering Type
Power
Thread Direction
Clockwise (Right)
Thread Size
14
Type
Control Arm and Ball Joint Assembly
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā— With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā— Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā— Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā— Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7952 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
CB14454PRĀ - MAS INDUSTRIES, DORMAN
CB14454Ā - MAS INDUSTRIES, DORMAN
521242, 521-242Ā - DORMAN
TC3438Ā - DELPHI
31126854724, 31 12 6 854 724Ā - BMW

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (23)vehicles
All
BMW
2013 - 2015BMW328i xDrive
2013 - 2015BMW335i xDrive
2013 - 2018BMW320i xDrive
2014 - 2015BMW328d xDrive
2014 - 2015BMW428i xDrive
2014 - 2016BMW435i xDrive
2015 - 2015BMW428i xDrive Gran Coupe
2015 - 2015BMW435i xDrive Gran Coupe
2015 - 2016BMW228i xDrive
2015 - 2016BMWM235i xDrive
2016 - 2016BMW328i xDrive
2016 - 2016BMW428i xDrive
2016 - 2016BMW428i xDrive Gran Coupe
2016 - 2016BMW435i xDrive Gran Coupe
2016 - 2018BMW328d xDrive
2016 - 2018BMW340i xDrive
2017 - 2019BMW330i xDrive
2017 - 2020BMW230i xDrive
2017 - 2020BMW430i xDrive
2017 - 2020BMW430i xDrive Gran Coupe
