Delphi

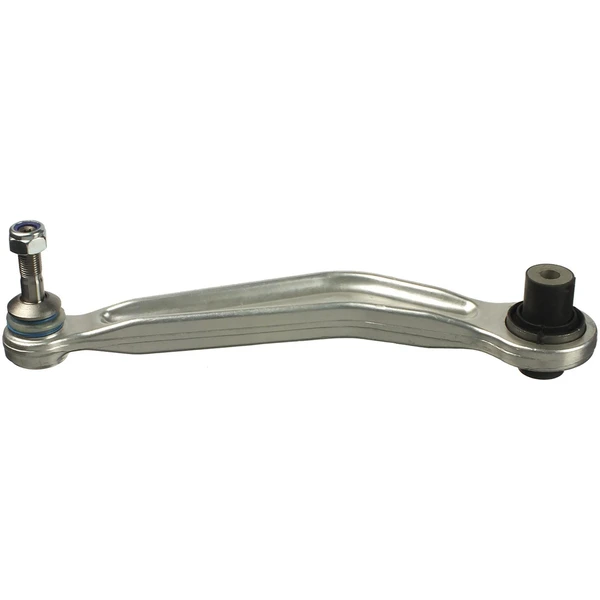

Control Arm and Ball Joint Assembly - Rear Left Upper Rearward - Delphi TC2954

Part # TC2954
Item # 1001XPDN
$99.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Rear Left Upper Rearward
Ball Joint Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Left Upper Rearward
Ball Joint Included
Yes
Adjustable
No
Ball Joint Stud Length (in)
3.386
Ball Joint Stud Length (mm)
86.00
Ball Joint Stud Type
Threaded
Ball Joint Thread Diameter (in)
0.551
Ball Joint Thread Diameter (mm)
14.00
Bearing Material
Plastic
Boot Color
Black
Boot Material
Choloroprene Rubber (CR)
Bushing Color
Black
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Gray
Control Arm Construction
Casting/Forged
Control Arm Material
Aluminum
Control Arm Maximum Length (in)
14.173
Control Arm Maximum Length (mm)
360.00
Control Arm Maximum Width (in)
3.701
Control Arm Maximum Width (mm)
94.00
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Finish
Uncoated
Grade Type
Premium
Greaseable
No
Locking Nut Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Diameter (in)
0.480
Mounting Hole Diameter (mm)
12.20
Mounting Hole Quantity
1
Pre-Greased
Yes
Steering Type
Power
Thread Direction
Clockwise (Right)
Thread Size
14
Type
Control Arm and Ball Joint Assembly
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7856 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
JTC1122 - TRW STEERING AND SUSPENSION PARTS, TRW
CB14527 - MAS INDUSTRIES, DORMAN
51842924S2, 518 429 24 S2 - BMW
1027748, 102-7748 - MOOG CHASSIS PRODUCTS
33306772241, 33 30 6 772 241 - BMW
RK620131 - MOOG CHASSIS PRODUCTS
CMS101020 - MEVOTECH
RK620136 - MOOG CHASSIS PRODUCTS
33326770775, 33 32 6 770 775 - BMW
TC2954 - DELPHI
33326774793, 3332 6774 793, 33 32 6 774 793 - BMW
33322347991, 3332 2347 991, 33 32 2 347 991 - BMW
33326767759, 33 32 6 767 759, 3332 6767 759 - BMW
33326758141, 33 32 6 758 141, 3332 6758 141 - BMW
K620136 - MOOG CHASSIS PRODUCTS
33326769971, 33 32 6 769 971, 3332 6769 971 - BMW
MS101244 - MEVOTECH
101-5027
102-5027

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (25)vehicles
All
BMW
2002 - 2005BMW745Li
2002 - 2005BMW745i
2003 - 2008BMW760Li
2004 - 2005BMW545i
2004 - 2005BMW645Ci
2004 - 2006BMW760i
2004 - 2007BMW530i
2005 - 2007BMW525i
2006 - 2006BMW525xi
2006 - 2007BMW530xi
2006 - 2007BMW750i
2006 - 2008BMW750Li
2006 - 2010BMW550i
2006 - 2010BMW650i
2006 - 2010BMWM5
2006 - 2010BMWM6
2007 - 2007BMW525xi
2007 - 2008BMWAlpina B7
2008 - 2008BMW528xi
2008 - 2008BMW535xi
