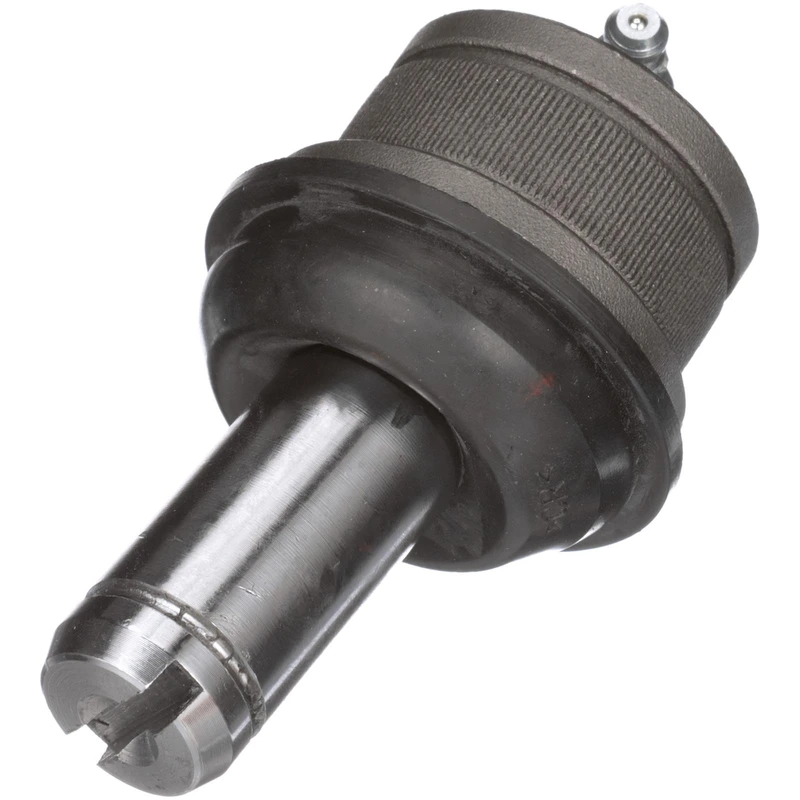

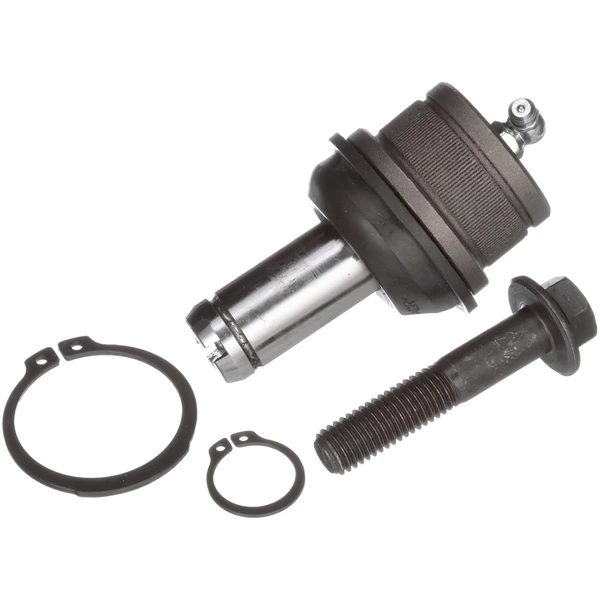

Ball Joint - Front Upper - Delphi TC2214
Part # TC2214
Item # 1001V10T
$44.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Upper
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Upper
- Material
- Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- No
- Cotter Pin Hole
- No
- Cotter Pin Included
- No
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- Yes
- Greaseable
- Yes
- Height (in)
- 3.819
- Height (mm)
- 97.00
- Length (in)
- 3.820
- Length (mm)
- 97.00
- Maximum Outside Diameter (in)
- 1.890
- Maximum Outside Diameter (mm)
- 48.00
- Mount Plate Included
- No
- Mounting Bolt Head Diameter (in)
- 1.047
- Mounting Bolt Head Diameter (mm)
- 26.60
- Mounting Bolt Length (in)
- 2.362
- Mounting Bolt Length (mm)
- 60.00
- Mounting Bolt Shank Diameter (in)
- 0.470
- Mounting Bolt Shank Diameter (mm)
- 12.00
- Mounting Bolt Thread Length (in)
- 1.300
- Mounting Bolt Thread Length (mm)
- 33.00
- Mounting Bolt Thread Pitch (mm)
- 1.75
- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Type
- Press-In
- Nuts Included
- Yes
- Stud Thread Length (in)
- 3.82
- Stud Thread Length (mm)
- 97
- Stud Type
- Non-Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- No
- Type
- Ball Joint
- Washers Included
- Yes
- Width (mm)
- 48
- Wrench Size
- 16mm
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4907 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4907 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K8676Ā - MOOG CHASSIS PRODUCTS, QUICKSTEER, PRECISION CHASSIS, PARTS MASTER, FIRESTONE, XRF
F0TZ3049B, F0TZ-3049BĀ - MAZDA, FORD
B8676Ā - MAS INDUSTRIES, DORMAN
JBJ929Ā - TRW STEERING AND SUSPENSION PARTS, TRW
ZZL033051, ZZL0-33051, ZZL0-33-051Ā - MAZDA, FORD
F0TZ3049A, F0TZ-3049AĀ - MAZDA, FORD
MK8676Ā - MEVOTECH
TC2214Ā - DELPHI
101-5198
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Ford
Mazda
| 1993 - 1993 | Ford | Explorer |
| 1994 - 1994 | Ford | Explorer |
| 1994 - 1997 | Ford | Ranger |
| 1993 - 1993 | Mazda | Navajo |
| 1994 - 1994 | Mazda | Navajo |
| 1994 - 1997 | Mazda | B3000 |
| 1994 - 1997 | Mazda | B4000 |
| 1995 - 1996 | Mazda | B2300 |
