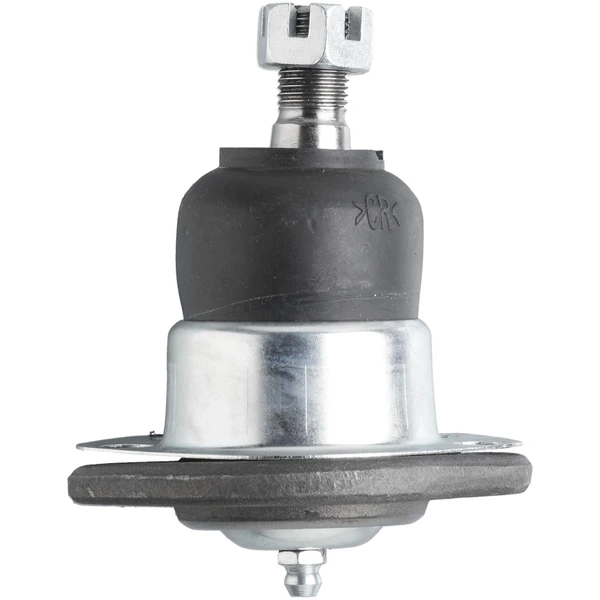

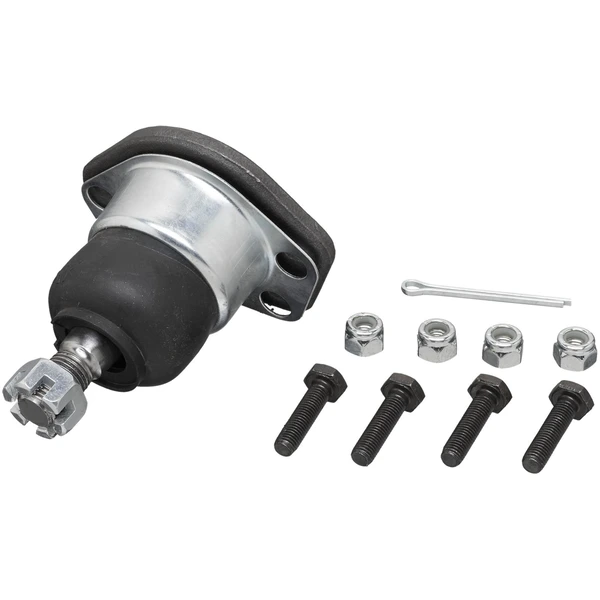

Ball Joint - Front Upper - Delphi TC2202
Part # TC2202
Item # 1001V4HU
$44.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Upper
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Upper
- Material
- Steel
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- Yes
- Cotter Pin Hole
- Yes
- Cotter Pin Included
- Yes
- Distance Between Mounting Holes (mm)
- 46.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- Yes
- Height (in)
- 4.138
- Height (mm)
- 105.10
- Length (in)
- 3.110
- Length (mm)
- 79.00
- Maximum Outside Diameter (in)
- 1.917
- Maximum Outside Diameter (mm)
- 48.70
- Mount Plate Included
- No
- Mounting Bolt Head Diameter (in)
- 0.484
- Mounting Bolt Head Diameter (mm)
- 12.30
- Mounting Bolt Length (in)
- 1.161
- Mounting Bolt Length (mm)
- 29.50
- Mounting Bolt Shank Diameter (in)
- 0.250
- Mounting Bolt Shank Diameter (mm)
- 6.35
- Mounting Bolt Thread Diameter (in)
- 0.250
- Mounting Bolt Thread Diameter (mm)
- 6.35
- Mounting Bolt Thread Length (in)
- 0.906
- Mounting Bolt Thread Length (mm)
- 23.00
- Mounting Bolt Threads Per Inch
- 28
- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 4
- Mounting Type
- Bolt-In
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.539
- Stud Tapered End 1 Diameter (mm)
- 13.7
- Stud Tapered End 2 Diameter (in)
- 0.661
- Stud Tapered End 2 Diameter (mm)
- 16.8
- Stud Thread Diameter (in)
- 0.5
- Stud Thread Diameter (mm)
- 12.7
- Stud Thread Length (in)
- 0.74
- Stud Thread Length (mm)
- 18.8
- Stud Threads Per Inch
- 20
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Ball Joint
- Washers Included
- No
- Width (mm)
- 80.5
- Wrench Size
- 11mm
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4902 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4902 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K5320 - MOOG CHASSIS PRODUCTS, QUICKSTEER, IMPORT DIRECT CHASSIS, TRANSBEC, PRECISION CHASSIS, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS
19133669 - GENERAL MOTORS, OLDSMOBILE, GMC, CHEVROLET, ISUZU
17980952 - GENERAL MOTORS, OLDSMOBILE, GMC, CHEVROLET, ISUZU
8179809520, 8-17980-952-0 - OLDSMOBILE, GMC, CHEVROLET, ISUZU
JBJ7035 - TRW STEERING AND SUSPENSION PARTS, TRW
B5320 - MAS INDUSTRIES, DORMAN
8191336690 - GENERAL MOTORS, ISUZU
10372887 - GENERAL MOTORS
MK5320 - MEVOTECH
TC2202 - DELPHI
101-6755
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Chevrolet
GMC
Isuzu
Oldsmobile
| 1983 - 1994 | Chevrolet | S10 Blazer |
| 1983 - 2004 | Chevrolet | S10 |
| 1995 - 2005 | Chevrolet | Blazer |
| 1984 - 1990 | GMC | S15 |
| 1984 - 1991 | GMC | S15 Jimmy |
| 1991 - 1991 | GMC | Syclone |
| 1991 - 2004 | GMC | Sonoma |
| 1992 - 1993 | GMC | Typhoon |
| 1992 - 2005 | GMC | Jimmy |
| 1998 - 2000 | Isuzu | Hombre |
| 1991 - 1994 | Oldsmobile | Bravada |
| 1996 - 2001 | Oldsmobile | Bravada |
