Delphi

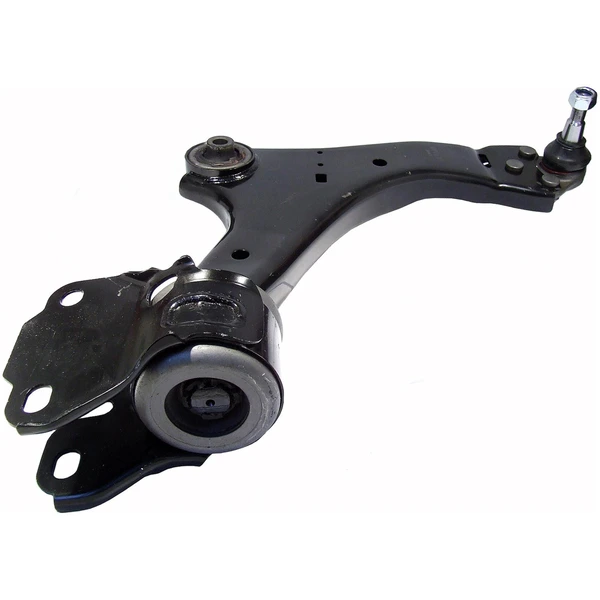

Control Arm and Ball Joint Assembly - Front Right Lower - Delphi TC2159

Part # TC2159
Item # 1001XHCS
$162.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Front Right Lower
Ball Joint Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Right Lower
Ball Joint Included
Yes
Ball Joint Stud Length (in)
1.102
Ball Joint Stud Length (mm)
28.00
Ball Joint Stud Type
Threaded
Ball Joint Thread Diameter (in)
0.551
Ball Joint Thread Diameter (mm)
14.00
Bearing Material
Plastic
Boot Color
Black
Boot Material
Choloroprene Rubber (CR)
Bushing Color
Black
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Black
Control Arm Construction
Stamped
Control Arm Material
Steel
Control Arm Maximum Length (in)
16.618
Control Arm Maximum Length (mm)
422.10
Control Arm Maximum Width (in)
4.189
Control Arm Maximum Width (mm)
106.40
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Finish
Painted
Grade Type
Premium
Greaseable
No
Locking Nut Included
Yes
Mounting Hardware Included
Yes
Pre-Greased
Yes
Steering Type
Power
Thread Direction
Clockwise (Right)
Thread Size
14
Type
Control Arm and Ball Joint Assembly
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7700 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
RK620601 - MOOG CHASSIS PRODUCTS, MOOG DRIVELINE PRODUCTS, ULTRAPOWER AUTO PARTS
CB45204 - MAS INDUSTRIES, DORMAN
6G9N3A052DC - FORD, VOLVO
7G9N3A052BB, 7G9N-3A052-BB - FORD, VOLVO
7G9N3A052BA, 7G9N-3A052-BA - FORD, VOLVO
6G9N3A052DG, 6G9N-3A052-DG - FORD, VOLVO
6G9N3A052DH, 6G9N-3A052-DH - FORD, VOLVO
1435745, 1 435 745 - FORD, VOLVO
1469024, 1 469 024 - FORD, VOLVO
1466186, 1 466 186 - FORD, VOLVO
1507181, 1 507 181 - FORD, VOLVO
1458773, 1 458 773 - FORD, VOLVO
CMS101062 - MEVOTECH
TC2159 - DELPHI
6G9N3395AA - FORD
31317662, 31 317 662 - VOLVO
MS101062 - MEVOTECH
BJ45215 - MAS INDUSTRIES
31200775, 31 200 775 - VOLVO
K620601 - MOOG CHASSIS PRODUCTS
MS104127 - MEVOTECH
102-7548

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Volvo
2007 - 2015VolvoS80
2011 - 2011VolvoS60
2013 - 2015VolvoS60
2015 - 2018VolvoV60

Highlights
