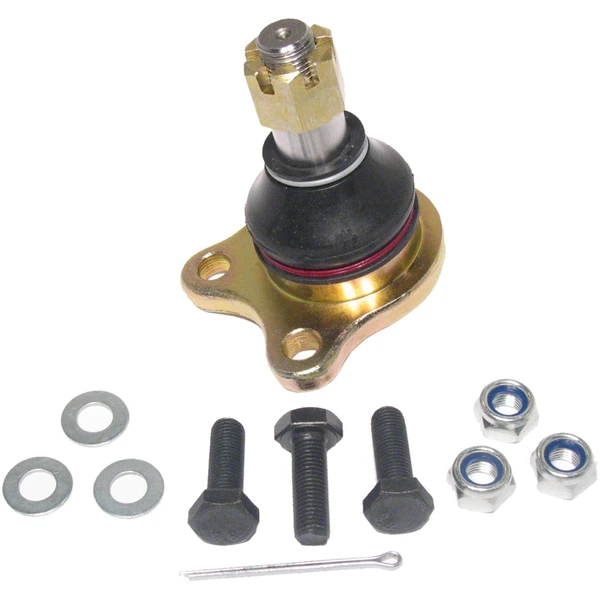

Ball Joint - Front Lower - Delphi TC2048
Part # TC2048
Item # 1001V2CG
$37.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Lower
- Material
- Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
- Color
- Silver
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushing Quantity
- 0
- Castle Nut Included
- Yes
- Cotter Pin Hole
- Yes
- Cotter Pin Included
- Yes
- Distance Between Mounting Holes (mm)
- 27.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Greaseable
- No
- Height (in)
- 3.740
- Height (mm)
- 95.00
- Maximum Outside Diameter (in)
- 1.476
- Maximum Outside Diameter (mm)
- 37.50
- Mount Plate Included
- No
- Mounting Bolt Head Diameter (in)
- 0.770
- Mounting Bolt Head Diameter (mm)
- 19.60
- Mounting Bolt Length (in)
- 1.430
- Mounting Bolt Length (mm)
- 36.40
- Mounting Bolt Shank Diameter (in)
- 0.390
- Mounting Bolt Shank Diameter (mm)
- 10.00
- Mounting Bolt Thread Length (in)
- 1.180
- Mounting Bolt Thread Length (mm)
- 30.00
- Mounting Bolt Thread Pitch (mm)
- 1.25
- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 3
- Mounting Type
- Bolt-In
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.787
- Stud Tapered End 1 Diameter (mm)
- 20
- Stud Tapered End 2 Diameter (in)
- 0.866
- Stud Tapered End 2 Diameter (mm)
- 22
- Stud Thread Diameter (in)
- 0.63
- Stud Thread Diameter (mm)
- 16
- Stud Thread Length (in)
- 1.024
- Stud Thread Length (mm)
- 26
- Stud Thread Pitch (mm)
- 1.5
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Premium
- Washers Included
- No
- Width (mm)
- 80
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4865 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4865 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K9044, K-9044Ā - FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, PRECISION CHASSIS, SYD
MB109585Ā - MITSUBISHI, PLYMOUTH, DODGE, CHRYSLER
MB337277Ā - MITSUBISHI
MK9044Ā - MEVOTECH
MB112476Ā - MITSUBISHI
TC2048Ā - DELPHI
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Plymouth
| 1979 - 1981 | Plymouth | Arrow Pickup |
Highlights
Note detail
Shipping and warranty
Fast shipping
The order will be dispatched within 1 business day, and the package will arrive within your order's estimated date. Please click Shipping Policy for more details.
Easy return
Every order comes with a 90-day free return which means you don't have to pay for a return slip. Please click Return Policy for more details.
Warranty policy
All parts are quality-tested to meet the top-tier aftermarket standards. Please click Warranty Policy for more details.
Item description
When it comes to your vehicle's suspension, it's essential to have high-quality parts. That's why we offer the Delphi TC2048 Ball Joint - Front Lower from A-Premium. This ball joint is designed to connect your vehicle's control arm to the steering knuckle, providing a smooth and stable ride. Made from durable materials, this ball joint is built to last and withstand the elements. Plus, it's easy to install, so you can get back on the road in no time. At A-Premium, we understand the importance of having a reliable ball joint. That's why we only offer high-quality products that meet or exceed OEM standards. Our team of experts is always here to help you find the right parts for your vehicle. So why wait? Improve your vehicle's suspension with the Delphi TC2048 Ball Joint - Front Lower from A-Premium today!
