Delphi

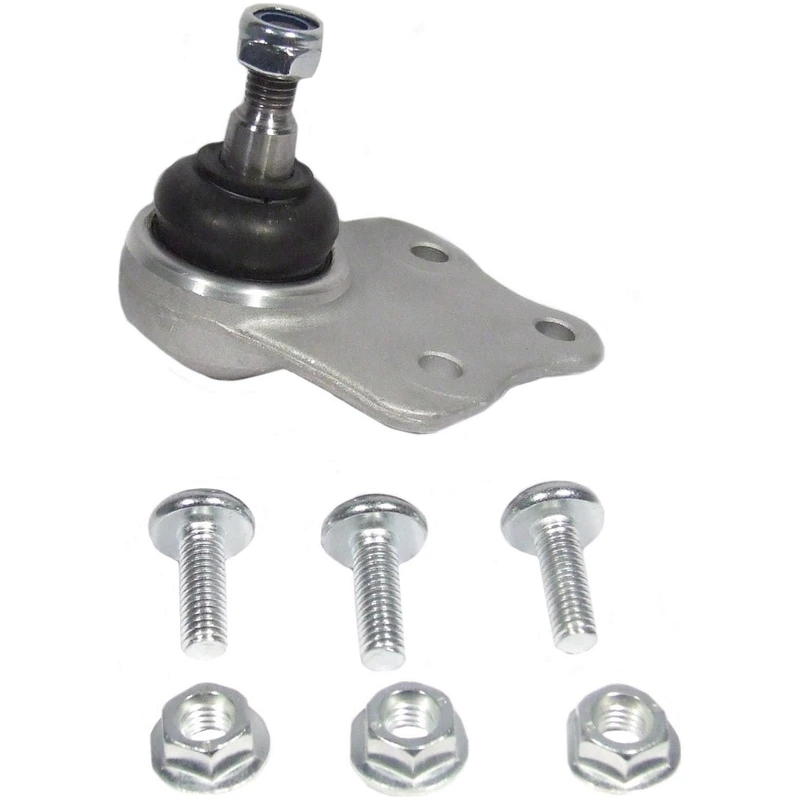

Ball Joint - Front Upper - Delphi TC1995

Part # TC1995
Item # 1001V1NN
$33.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
One Set
Installation Position
Front Upper
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
One Set
Installation Position
Front Upper
Material
Steel
Color
Black
Adjustable
No
Ball Joint Assembly
Yes
Bushing Material
Rubber
Bushings Included
No
Castle Nut Included
No
Cotter Pin Hole
No
Cotter Pin Included
No
Distance Between Mounting Holes (mm)
50.20
Dust Boot Included
Yes
Dust Boot Material
Rubber
Grease Fitting Included
No
Greaseable
No
Height (in)
34.331
Height (mm)
872.01
Length (in)
3.940
Length (mm)
100.00
Maximum Outside Diameter (in)
1.969
Maximum Outside Diameter (mm)
50.00
Mounting Bolt Length (in)
1.181
Mounting Bolt Length (mm)
30.00
Mounting Bolt Shank Diameter (in)
0.310
Mounting Bolt Shank Diameter (mm)
8.00
Mounting Bolt Thread Length (in)
0.866
Mounting Bolt Thread Length (mm)
22.00
Mounting Bolt Thread Pitch (mm)
1
Mounting Bolts Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
3
Mounting Type
Bolt-In
Nuts Included
Yes
Stud Thread Diameter (in)
0.394
Stud Thread Diameter (mm)
10
Stud Thread Length (in)
2.008
Stud Thread Length (mm)
51
Stud Type
Threaded
Suspension Grade Type
Standard
Type
Ball Joint
Washers Included
No
Width (mm)
85
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4864 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
JBJ783 - TRW STEERING AND SUSPENSION PARTS, TRW
0003301007, 000 330 10 07, 000-330-10-07 - URO PARTS, MERCEDESBENZ
BJ28006 - MAS INDUSTRIES, DORMAN
BJ07074 - IMPORT DIRECT, IMPORT DIRECT CHASSIS
CMS101390 - MEVOTECH
A0003301007, A000 330 1007, A 000 330 10 07 - MERCEDESBENZ
CMS101391 - MEVOTECH
A2113309907, A 211 330 99 07, A211 330 9907 - MERCEDESBENZ
2113309907, 211-330-99-07, 211 330 99 07 - MERCEDESBENZ
TC1995 - DELPHI
3301007 - MERCEDESBENZ
K500222 - MOOG CHASSIS PRODUCTS
MS10578 - MEVOTECH
101-6897
102-6299

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (17)vehicles
All
Mercedes-Benz
2003 - 2006Mercedes-BenzE500
2003 - 2006Mercedes-BenzE55 AMG
2003 - 2006Mercedes-BenzSL500
2003 - 2008Mercedes-BenzSL55 AMG
2003 - 2009Mercedes-BenzE320
2004 - 2011Mercedes-BenzSL600
2005 - 2011Mercedes-BenzSL65 AMG
2006 - 2006Mercedes-BenzCLS500
2006 - 2006Mercedes-BenzCLS55 AMG
2006 - 2009Mercedes-BenzE350
2007 - 2009Mercedes-BenzE550
2007 - 2009Mercedes-BenzE63 AMG
2007 - 2011Mercedes-BenzCLS550
2007 - 2011Mercedes-BenzCLS63 AMG
2007 - 2012Mercedes-BenzSL550
2009 - 2009Mercedes-BenzSL63 AMG
2011 - 2012Mercedes-BenzSL63 AMG
