Delphi

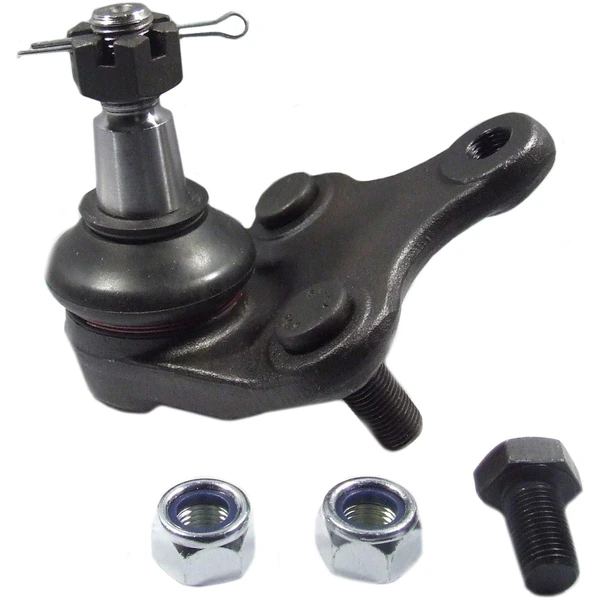

Ball Joint - Front Lower - Delphi TC1994

Part # TC1994
Item # 1001V1XW
$41.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
One Set
Installation Position
Front Lower
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
One Set
Installation Position
Front Lower
Material
Steel
Color
Black
Adjustable
No
Ball Joint Assembly
Yes
Bushings Included
No
Castle Nut Included
Yes
Cotter Pin Hole
Yes
Cotter Pin Included
Yes
Distance Between Mounting Holes (mm)
23.00
Dust Boot Included
Yes
Dust Boot Material
Rubber
Grease Fitting Included
No
Greaseable
No
Height (in)
3.614
Height (mm)
91.80
Maximum Outside Diameter (in)
1.890
Maximum Outside Diameter (mm)
48.00
Mount Plate Included
No
Mounting Bolt Head Diameter (in)
0.866
Mounting Bolt Head Diameter (mm)
22.00
Mounting Bolt Length (in)
1.476
Mounting Bolt Length (mm)
37.50
Mounting Bolt Shank Diameter (in)
0.472
Mounting Bolt Shank Diameter (mm)
12.00
Mounting Bolt Thread Diameter (in)
0.470
Mounting Bolt Thread Diameter (mm)
12.00
Mounting Bolt Thread Length (in)
1.181
Mounting Bolt Thread Length (mm)
30.00
Mounting Bolt Thread Pitch (mm)
1.75
Mounting Bolts Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
3
Mounting Type
Bolt-In
Nuts Included
Yes
Stud Tapered End 1 Diameter (in)
0.591
Stud Tapered End 1 Diameter (mm)
15
Stud Tapered End 2 Diameter (in)
0.728
Stud Tapered End 2 Diameter (mm)
18.5
Stud Thread Diameter (in)
0.472
Stud Thread Diameter (mm)
12
Stud Thread Length (in)
0.74
Stud Thread Length (mm)
18.8
Stud Thread Pitch (mm)
1.75
Stud Type
Threaded
Suspension Grade Type
Standard
Tapered Stud
Yes
Type
Ball Joint
Washers Included
No
Width (mm)
83.5
Wrench Size
19mm
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4862 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K500062 - MOOG CHASSIS PRODUCTS, QUICKSTEER, TRANSIT PARTS, MASTERPRO CHASSIS, XRF
4333049095, 43330-49095 - LEXUS, TOYOTA, SCION
4333019245, 43330-19245 - TOYOTA, SCION
4333009A30, 43330-09A30 - LEXUS, TOYOTA
4333019275, 43330-19275 - TOYOTA, SCION
5051384, 505-1384 - RAYBESTOS BRAKES, RAYBESTOS CHASSIS
BJ11010 - IMPORT DIRECT, IMPORT DIRECT CHASSIS
BJ71015 - MAS INDUSTRIES, DORMAN
BJ74335 - MAS INDUSTRIES, DORMAN
JBJ1072 - TRW STEERING AND SUSPENSION PARTS, TRW
FA2320 - MCQUAYNORRIS
TYF218, TY-F218 - DEEZA
4333049215, 43330-49215 - TOYOTA
MS86505 - MEVOTECH
TC1994 - DELPHI
BJ14081 - IMPORT DIRECT
4333009631, 43330-09631 - TOYOTA
4333009630, 43330-09630 - TOYOTA
101-5777
101-6935

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (18)vehicles
All
Lexus
Scion
Toyota
2015 - 2017LexusNX200t
2015 - 2021LexusNX300h
2018 - 2021LexusNX300
2019 - 2022LexusES300h
2019 - 2022LexusES350
2020 - 2022LexusUX200
2020 - 2022LexusUX250h
2021 - 2022LexusES250
2008 - 2015ScionxB
2011 - 2016SciontC
2016 - 2016ScioniM
2006 - 2018ToyotaRAV4
2012 - 2017ToyotaPrius V
2016 - 2020ToyotaMirai
2018 - 2020ToyotaCamry
2018 - 2022ToyotaC-HR
2019 - 2022ToyotaAvalon
2021 - 2022ToyotaCamry
