Delphi

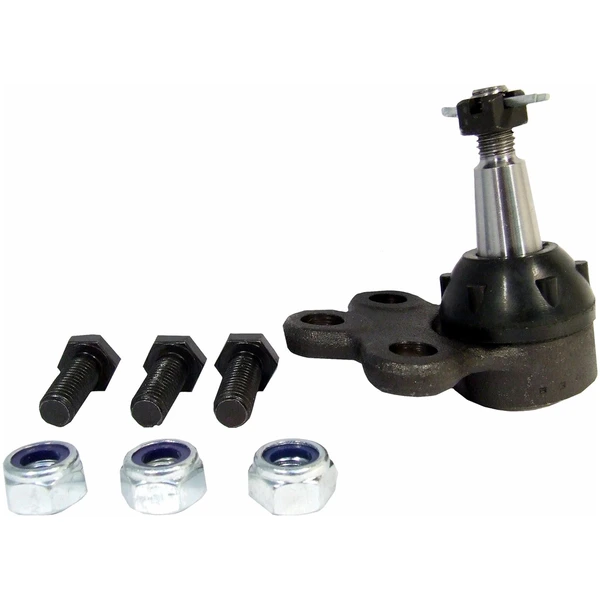

Ball Joint - Front Lower - Delphi TC1834

Part # TC1834
Item # 1001V4AP
$56.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
One Set
Installation Position
Front Lower
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
One Set
Installation Position
Front Lower
Material
Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Color
Gray
Adjustable
No
Ball Joint Assembly
Yes
Bushings Included
No
Castle Nut Included
Yes
Cotter Pin Hole
Yes
Cotter Pin Included
Yes
Dust Boot Included
Yes
Dust Boot Material
Rubber
Height (in)
3.701
Height (mm)
95.00
Maximum Outside Diameter (in)
1.063
Maximum Outside Diameter (mm)
27.00
Mount Plate Included
No
Mounting Bolt Head Diameter (in)
0.827
Mounting Bolt Head Diameter (mm)
21.00
Mounting Bolt Length (in)
1.181
Mounting Bolt Length (mm)
30.00
Mounting Bolt Shank Diameter (in)
0.470
Mounting Bolt Shank Diameter (mm)
12.00
Mounting Bolt Thread Length (in)
1.080
Mounting Bolt Thread Length (mm)
27.50
Mounting Bolt Thread Pitch (mm)
1.75
Mounting Bolts Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
3
Mounting Type
Bolt-In
Nuts Included
Yes
Stud Taper Per Foot (in)
0.167
Stud Tapered End 1 Diameter (in)
0.768
Stud Tapered End 1 Diameter (mm)
19.5
Stud Tapered End 2 Diameter (in)
0.591
Stud Tapered End 2 Diameter (mm)
15
Stud Thread Diameter (in)
0.47
Stud Thread Diameter (mm)
12
Stud Thread Length (in)
0.866
Stud Thread Length (mm)
22
Stud Thread Pitch (mm)
1.75
Stud Type
Threaded
Suspension Grade Type
Standard
Tapered Stud
Yes
Type
Ball Joint
Washers Included
Yes
Width (mm)
101
Wrench Size
19mm
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4803 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K5331, K-5331 - NAPA, MOOG CHASSIS PRODUCTS, QUICKSTEER, IMPORT DIRECT CHASSIS, TRANSBEC, PRECISION CHASSIS, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS, SYD
88965333 - CADILLAC, SUZUKI, GENERAL MOTORS, OLDSMOBILE, PONTIAC, SATURN, BUICK, GMC, CHEVROLET
88955451 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, SATURN, BUICK, GMC, CHEVROLET
22156822 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, SATURN, BUICK, GMC, CHEVROLET
10443711 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, SATURN, BUICK, GMC, CHEVROLET
15877580 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, SATURN, BUICK, GMC, CHEVROLET
22157089 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, SATURN, BUICK, CHEVROLET
B5331 - MAS INDUSTRIES, DORMAN
BJ92105 - MAS INDUSTRIES, DORMAN
JBJ7008 - TRW STEERING AND SUSPENSION PARTS, TRW
MK5331 - MEVOTECH
TC1834 - DELPHI

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (30)vehicles
All
Buick
Cadillac
Chevrolet
Oldsmobile
Pontiac
Saturn
Suzuki
1997 - 2004BuickRegal
1997 - 2005BuickCentury
2002 - 2007BuickRendezvous
2005 - 2007BuickTerraza
2005 - 2009BuickAllure
2005 - 2009BuickLaCrosse
1997 - 1997CadillacSeville
1997 - 1999CadillacDeVille
1997 - 2002CadillacEldorado
1997 - 2005ChevroletVenture
2000 - 2007ChevroletMonte Carlo
2000 - 2013ChevroletImpala
2005 - 2009ChevroletEquinox
2005 - 2009ChevroletUplander
2012 - 2015ChevroletCaptiva Sport
2014 - 2016ChevroletImpala Limited
1997 - 1999OldsmobileAurora
1997 - 2004OldsmobileSilhouette
1998 - 2002OldsmobileIntrigue
2001 - 2003OldsmobileAurora
