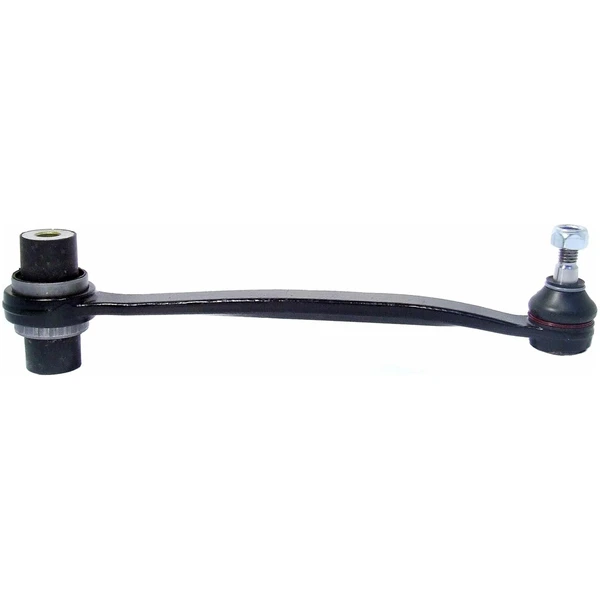

Control Arm and Ball Joint Assembly - Rear Side - Delphi TC1754
Part # TC1754
Item # 1001XGC1
$68.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Rear Side
- Ball Joint Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Rear Side
- Ball Joint Included
- Yes
- Adjustable
- No
- Ball Joint Stud Length (in)
- 3.701
- Ball Joint Stud Length (mm)
- 94.00
- Ball Joint Stud Type
- Threaded
- Bearing Material
- Plastic
- Boot Color
- Black
- Boot Material
- Choloroprene Rubber (CR)
- Bushing Color
- Black
- Bushing Material
- Rubber
- Bushings Included
- Yes
- Control Arm Color
- Gray
- Control Arm Construction
- Casting/Forged
- Control Arm Material
- Steel
- Control Arm Maximum Length (in)
- 12.244
- Control Arm Maximum Length (mm)
- 311.00
- Control Arm Maximum Width (in)
- 3.465
- Control Arm Maximum Width (mm)
- 88.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Chloroprene Rubber (CR)
- Grade Type
- Premium
- Greaseable
- No
- Locking Nut Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Diameter (in)
- 0.476
- Mounting Hole Diameter (mm)
- 12.10
- Mounting Hole Quantity
- 1
- Pre-Greased
- Yes
- Steering Type
- Power
- Thread Direction
- Clockwise (Right)
- Type
- Control Arm and Ball Joint Assembly
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7622 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7622 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
JTC2178 - TRW STEERING AND SUSPENSION PARTS, TRW
CB30429 - MAS INDUSTRIES, DORMAN
CB28645 - MAS INDUSTRIES, DORMAN
CMS101182 - MEVOTECH
2203500453, 220 350 04 53, 220 350 0453, 220-350-04-53 - MERCEDESBENZ
MS101182 - MEVOTECH
A2203500453, A 220 350 04 53, A220 350 0453 - MERCEDESBENZ
RK620146 - MOOG CHASSIS PRODUCTS
CK620146 - MOOG CHASSIS PRODUCTS
JTC998 - TRW
TC1754 - DELPHI
CMS101168 - MEVOTECH
102-6156
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (10)vehicles
All
Mercedes-Benz
| 2000 - 2006 | Mercedes-Benz | CL500 |
| 2000 - 2006 | Mercedes-Benz | S430 |
| 2000 - 2006 | Mercedes-Benz | S500 |
| 2001 - 2006 | Mercedes-Benz | CL55 AMG |
| 2001 - 2006 | Mercedes-Benz | CL600 |
| 2001 - 2006 | Mercedes-Benz | S55 AMG |
| 2001 - 2006 | Mercedes-Benz | S600 |
| 2005 - 2006 | Mercedes-Benz | CL65 AMG |
| 2006 - 2006 | Mercedes-Benz | S350 |
| 2006 - 2006 | Mercedes-Benz | S65 AMG |
