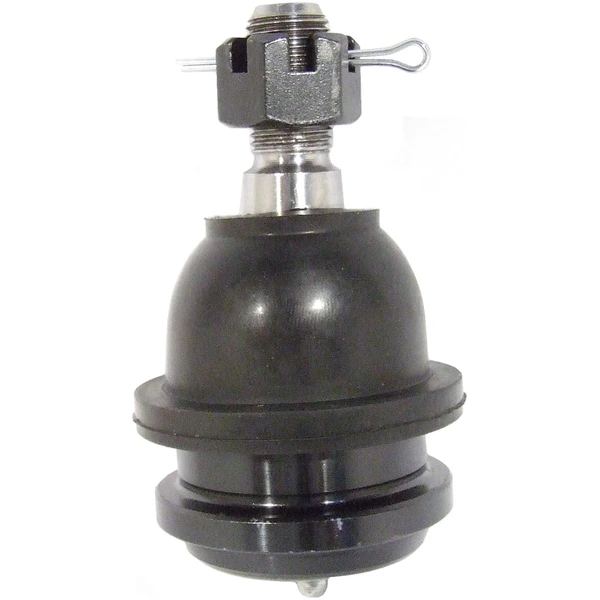

Ball Joint - Front Lower - Delphi TC1705
Part # TC1705
Item # 1001UVVA
$42.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Lower
- Material
- Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- Yes
- Cotter Pin Hole
- Yes
- Cotter Pin Included
- Yes
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- Yes
- Height (in)
- 4.488
- Height (mm)
- 114.00
- Length (in)
- 4.490
- Length (mm)
- 114.00
- Maximum Outside Diameter (in)
- 2.323
- Maximum Outside Diameter (mm)
- 59.00
- Mount Plate Included
- No
- Mounting Bolts Included
- No
- Mounting Hardware Included
- Yes
- Mounting Type
- Press-In
- Nuts Included
- Yes
- Stud Taper Per Foot (in)
- 0.125
- Stud Tapered End 1 Diameter (in)
- 0.854
- Stud Tapered End 1 Diameter (mm)
- 21.7
- Stud Tapered End 2 Diameter (in)
- 0.726
- Stud Tapered End 2 Diameter (mm)
- 18.45
- Stud Thread Diameter (in)
- 0.63
- Stud Thread Diameter (mm)
- 16
- Stud Thread Length (in)
- 1.181
- Stud Thread Length (mm)
- 30
- Stud Thread Pitch (mm)
- 1.5
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Ball Joint
- Washers Included
- No
- Width (mm)
- 59
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4784 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4784 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K8749 - FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, QUICKSTEER, IMPORT DIRECT CHASSIS, PRECISION CHASSIS, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS
K8685, K-8685 - MOOG CHASSIS PRODUCTS, QUICKSTEER, IMPORT DIRECT CHASSIS, PRECISION CHASSIS, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS, SYD
F8AZ3050A, F8AZ-3050-A - MERCURY, LINCOLN, FORD
F8AZ3050AA, F8AZ-3050-AA, F8AZ 3050-AA - MERCURY, LINCOLN, FORD
2W7Z3050AA, 2W7Z 3050-AA, 2W7Z-3050-AA - MERCURY, LINCOLN, FORD
B8685 - MAS INDUSTRIES, DORMAN
MCSOE190145 - MOTORCRAFT, FORD
JBJ875 - TRW STEERING AND SUSPENSION PARTS, TRW
F4ZZ3050B - FORD
TC1705 - DELPHI
F4ZZ3050A, F4ZZ 3050-A - FORD
MK8685 - MEVOTECH
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Ford
Lincoln
Mercury
| 1995 - 2002 | Ford | Crown Victoria |
| 1995 - 2002 | Lincoln | Town Car |
| 1995 - 2002 | Mercury | Grand Marquis |
