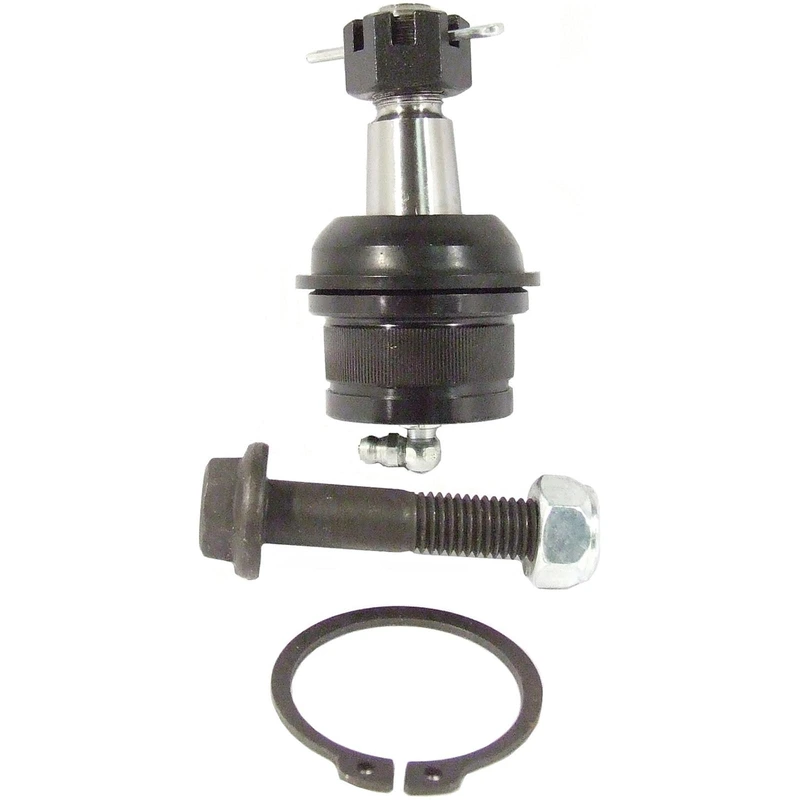

Ball Joint - Front Lower - Delphi TC1703
Part # TC1703
Item # 1001UWNA
$42.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Lower
- Material
- Steel
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- Yes
- Cotter Pin Hole
- Yes
- Cotter Pin Included
- Yes
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- Yes
- Greaseable
- Yes
- Height (in)
- 3.937
- Height (mm)
- 100.00
- Length (in)
- 2.130
- Length (mm)
- 54.00
- Maximum Outside Diameter (in)
- 2.126
- Maximum Outside Diameter (mm)
- 54.00
- Mount Plate Included
- No
- Mounting Bolt Head Diameter (in)
- 1.024
- Mounting Bolt Head Diameter (mm)
- 26.00
- Mounting Bolt Length (in)
- 2.815
- Mounting Bolt Length (mm)
- 71.50
- Mounting Bolt Shank Diameter (in)
- 0.472
- Mounting Bolt Shank Diameter (mm)
- 12.00
- Mounting Bolt Thread Diameter (in)
- 0.470
- Mounting Bolt Thread Diameter (mm)
- 12.00
- Mounting Bolt Thread Length (in)
- 1.260
- Mounting Bolt Thread Length (mm)
- 32.00
- Mounting Bolt Thread Pitch (mm)
- 1.75
- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 0
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.72
- Stud Tapered End 1 Diameter (mm)
- 18.3
- Stud Tapered End 2 Diameter (in)
- 0.827
- Stud Tapered End 2 Diameter (mm)
- 21
- Stud Thread Diameter (in)
- 0.625
- Stud Thread Diameter (mm)
- 15.8
- Stud Thread Length (in)
- 0.807
- Stud Thread Length (mm)
- 20.5
- Stud Thread Pitch (mm)
- 0.7
- Stud Threads Per Inch
- 18
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Ball Joint
- Washers Included
- No
- Width (mm)
- 54
- Wrench Size
- 17mm
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4769 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4769 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K8673, K-8673 - MOOG CHASSIS PRODUCTS, QUICKSTEER, PRECISION CHASSIS, PARTS MASTER, FIRESTONE, XRF, SYD
K8561T - MOOG CHASSIS PRODUCTS, QUICKSTEER, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS
K8413T - FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, QUICKSTEER, XRF
K8563 - MOOG CHASSIS PRODUCTS, QUICKSTEER, PRECISION CHASSIS, XRF
B8673 - MAS INDUSTRIES, DORMAN
ZZMM133051, ZZMM-133051 - MAZDA, FORD
ZZL034550, ZZL0-34-550 - MAZDA, FORD
F0TZ3050A, F0TZ-3050A - MAZDA, FORD
ZZM133051, ZZM1-33-051 - MAZDA, FORD
BJ86385 - MAS INDUSTRIES, DORMAN
B8673PR - DORMAN
TC1703 - DELPHI
531396, 531-396 - DORMAN
1015199, 101-5199 - MOOG CHASSIS PRODUCTS
MK8673 - MEVOTECH
BJ86385XL - DORMAN
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (9)vehicles
All
Ford
Mazda
| 1993 - 1993 | Ford | Explorer |
| 1993 - 1993 | Ford | Ranger |
| 1994 - 1994 | Ford | Explorer |
| 1994 - 1997 | Ford | Ranger |
| 1993 - 1993 | Mazda | Navajo |
| 1994 - 1994 | Mazda | Navajo |
| 1994 - 1996 | Mazda | B3000 |
| 1994 - 1997 | Mazda | B4000 |
| 1995 - 1996 | Mazda | B2300 |
