Return your purchase within 90 days at no cost.

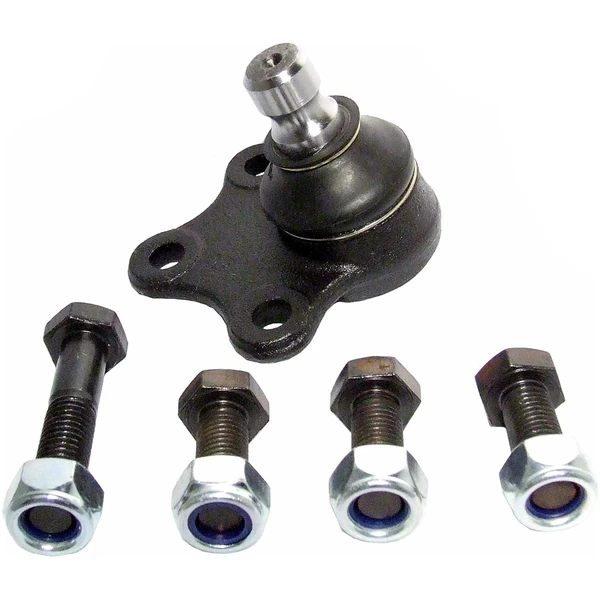

Ball Joint - Front Lower - Delphi TC1670
Part # TC1670
Item # 1001UVAR
$48.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Lower
- Material
- Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- No
- Cotter Pin Hole
- No
- Cotter Pin Included
- No
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Greaseable
- No
- Height (in)
- 2.874
- Height (mm)
- 73.00
- Length (in)
- 3.460
- Length (mm)
- 88.00
- Maximum Outside Diameter (in)
- 1.772
- Maximum Outside Diameter (mm)
- 45.00
- Mount Plate Included
- No
- Mounting Bolt Head Diameter (in)
- 0.748
- Mounting Bolt Head Diameter (mm)
- 19.00
- Mounting Bolt Length (in)
- 1.181
- Mounting Bolt Length (mm)
- 30.00
- Mounting Bolt Shank Diameter (in)
- 0.390
- Mounting Bolt Shank Diameter (mm)
- 10.00
- Mounting Bolt Thread Length (in)
- 1.100
- Mounting Bolt Thread Length (mm)
- 28.00
- Mounting Bolt Thread Pitch (mm)
- 1.5
- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 3
- Mounting Type
- Bolt-In
- Nuts Included
- Yes
- Stud Thread Length (in)
- 0.768
- Stud Thread Length (mm)
- 19.51
- Stud Type
- Non-Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- No
- Type
- Ball Joint
- Washers Included
- No
- Width (mm)
- 91
- Wrench Size
- 17mm
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4729 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4729 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K8683 - MOOG CHASSIS PRODUCTS, QUICKSTEER, TRANSBEC, PRECISION CHASSIS, XRF
F5RZ3079B, F5RZ 3079-B - MERCURY, FORD
B8683 - MAS INDUSTRIES, DORMAN
1S8Z3050AA, 1S8Z 3050-AA - MERCURY, FORD
F8RZ3078BA, F8RZ 3078-BA - MERCURY, FORD
JBJ144 - TRW STEERING AND SUSPENSION PARTS, TRW
F8RZ3079BA, F8RZ 3079-BA, F8RZ-3079BA - MERCURY, FORD
F5RZ3078B, F5RZ 3078-B - MERCURY, FORD
CB85083 - MAS INDUSTRIES
RK80388 - MOOG CHASSIS PRODUCTS
RK80389 - MOOG CHASSIS PRODUCTS
RK80387 - MOOG CHASSIS PRODUCTS
CB85084PR - MAS INDUSTRIES
CB85083PR - MAS INDUSTRIES
CB30811 - MAS INDUSTRIES
CB30810 - MAS INDUSTRIES
RK80390 - MOOG CHASSIS PRODUCTS
CB85084 - MAS INDUSTRIES
K200273 - MOOG CHASSIS PRODUCTS
520201, 52-0201, 520-201 - DORMAN
K200274 - MOOG CHASSIS PRODUCTS
520202, 52-0202, 520-202 - DORMAN
520203, 52-0203, 520-203 - DORMAN
K200117 - MOOG CHASSIS PRODUCTS
MS20384 - MEVOTECH
TC1670 - DELPHI
531753, 531-753 - DORMAN
CB30810PR - MAS INDUSTRIES
MS20385 - MEVOTECH
CB30811PR - MAS INDUSTRIES
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Ford
Mercury
| 1995 - 2000 | Ford | Contour |
| 1995 - 2000 | Mercury | Mystique |
| 1999 - 2000 | Mercury | Cougar |
| 2001 - 2001 | Mercury | Cougar |
| 2002 - 2002 | Mercury | Cougar |
