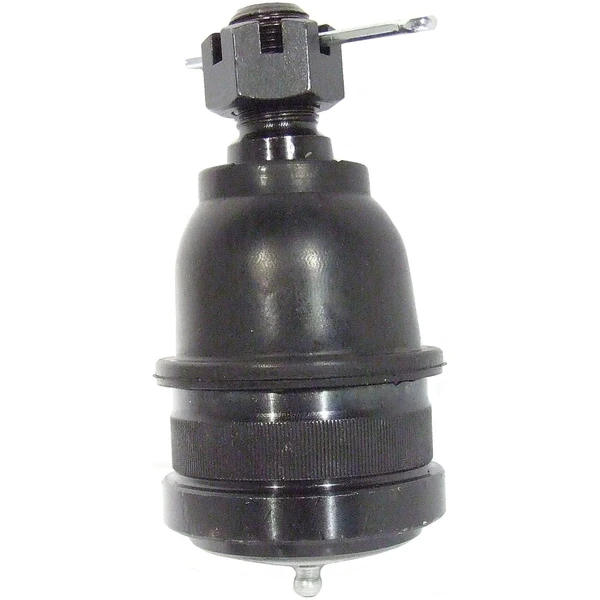

Ball Joint - Front Lower - Delphi TC1644
Part # TC1644
Item # 1001UYX6
$56.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Lower
- Material
- Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- Yes
- Cotter Pin Hole
- Yes
- Cotter Pin Included
- Yes
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- Yes
- Greaseable
- Yes
- Height (in)
- 5.197
- Height (mm)
- 132.00
- Length (in)
- 5.200
- Length (mm)
- 132.00
- Maximum Outside Diameter (in)
- 2.500
- Maximum Outside Diameter (mm)
- 63.50
- Mount Plate Included
- No
- Mounting Bolts Included
- No
- Mounting Hardware Included
- Yes
- Mounting Type
- Press-In
- Nuts Included
- Yes
- Stud Taper Per Foot (in)
- 0.125
- Stud Tapered End 1 Diameter (in)
- 1.059
- Stud Tapered End 1 Diameter (mm)
- 26.9
- Stud Tapered End 2 Diameter (in)
- 0.917
- Stud Tapered End 2 Diameter (mm)
- 23.28
- Stud Thread Diameter (in)
- 0.75
- Stud Thread Diameter (mm)
- 19.05
- Stud Thread Length (in)
- 1.161
- Stud Thread Length (mm)
- 29.49
- Stud Threads Per Inch
- 16
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Ball Joint
- Washers Included
- Yes
- Width (mm)
- 63.5
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4702 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4702 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K500050 - MOOG CHASSIS PRODUCTS, QUICKSTEER, PRECISION CHASSIS, PARTS MASTER, FIRESTONE, XRF
3683983 - PLYMOUTH, DODGE, CHRYSLER, GMC, CHEVROLET
3492129 - PLYMOUTH, DODGE, CHRYSLER, GMC, CHEVROLET
K7053T - MOOG CHASSIS PRODUCTS, QUICKSTEER, PARTS MASTER, FIRESTONE, XRF
3683983AB - PLYMOUTH, DODGE, CHRYSLER
B7053 - MAS INDUSTRIES, DORMAN
JBJ1013 - TRW STEERING AND SUSPENSION PARTS, TRW
JBJ852 - TRW STEERING AND SUSPENSION PARTS, TRW
MS25514 - MEVOTECH
MK7053T - MEVOTECH
TC1644 - DELPHI
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (45)vehicles
All
Chevrolet
Dodge
Fargo
GMC
Plymouth
| 1963 - 1970 | Chevrolet | C20 Pickup |
| 1963 - 1970 | Chevrolet | C30 Pickup |
| 1968 - 1970 | Chevrolet | C20 Suburban |
| 1968 - 1970 | Chevrolet | P20 Van |
| 1968 - 1970 | Chevrolet | P30 Van |
| 1971 - 1971 | Chevrolet | G30 Van |
| 1972 - 1974 | Dodge | B300 Van |
| 1972 - 1974 | Dodge | D200 Pickup |
| 1972 - 1974 | Dodge | D300 Pickup |
| 1973 - 1975 | Dodge | CB300 |
| 1975 - 1975 | Dodge | B300 |
| 1975 - 1975 | Dodge | D200 |
| 1975 - 1975 | Dodge | D300 |
| 1976 - 1980 | Dodge | B300 |
| 1976 - 1980 | Dodge | CB300 |
| 1976 - 1980 | Dodge | D200 |
| 1976 - 1980 | Dodge | D300 |
| 1981 - 1993 | Dodge | D250 |
| 1981 - 1993 | Dodge | D350 |
| 1981 - 1994 | Dodge | B350 |
