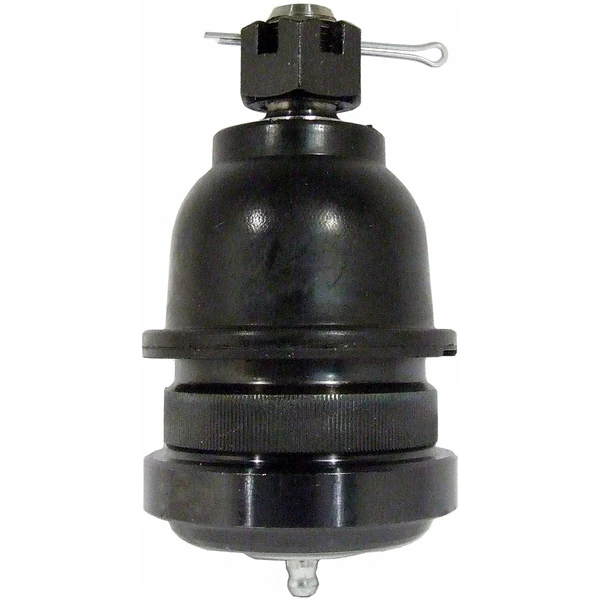

Ball Joint - Front Lower - Delphi TC1637
Part # TC1637
Item # 1001UZ40
$33.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Lower
- Material
- Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- Yes
- Cotter Pin Hole
- Yes
- Cotter Pin Included
- Yes
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- Yes
- Greaseable
- Yes
- Height (in)
- 4.685
- Height (mm)
- 119.00
- Length (in)
- 4.690
- Length (mm)
- 119.00
- Maximum Outside Diameter (in)
- 2.500
- Maximum Outside Diameter (mm)
- 63.50
- Mount Plate Included
- No
- Mounting Bolts Included
- No
- Mounting Hardware Included
- Yes
- Mounting Type
- Press-In
- Nuts Included
- Yes
- Stud Taper Per Foot (in)
- 0.167
- Stud Tapered End 1 Diameter (in)
- 0.827
- Stud Tapered End 1 Diameter (mm)
- 21
- Stud Tapered End 2 Diameter (in)
- 0.672
- Stud Tapered End 2 Diameter (mm)
- 17.08
- Stud Thread Diameter (in)
- 0.625
- Stud Thread Diameter (mm)
- 15.88
- Stud Thread Length (in)
- 0.886
- Stud Thread Length (mm)
- 22.5
- Stud Threads Per Inch
- 18
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Ball Joint
- Washers Included
- No
- Width (mm)
- 63.5
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4688 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4688 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K6141, K-6141 - MOOG CHASSIS PRODUCTS, QUICKSTEER, IMPORT DIRECT CHASSIS, TRANSBEC, PRECISION CHASSIS, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS, SYD
9766421 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK, GMC, CHEVROLET
9754378 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK, GMC, CHEVROLET
9761498 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK, GMC, CHEVROLET
7808865 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK, GMC, CHEVROLET
7814131 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK, GMC, CHEVROLET
88965475 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK, GMC, CHEVROLET
JBJ903 - TRW STEERING AND SUSPENSION PARTS, TRW
B6141 - MAS INDUSTRIES, DORMAN
K6141T - MOOG CHASSIS PRODUCTS, XRF
TC1637 - DELPHI
MK6141 - MEVOTECH
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (29)vehicles
All
Buick
Cadillac
Chevrolet
GMC
Oldsmobile
Pontiac
| 1971 - 1973 | Buick | Centurion |
| 1971 - 1976 | Buick | Electra |
| 1971 - 1976 | Buick | Estate Wagon |
| 1971 - 1976 | Buick | LeSabre |
| 1971 - 1976 | Buick | Riviera |
| 1977 - 1979 | Cadillac | Fleetwood |
| 1977 - 1982 | Cadillac | Commercial Chassis |
| 1977 - 1984 | Cadillac | DeVille |
| 1980 - 1984 | Cadillac | Fleetwood |
| 1987 - 1992 | Cadillac | Brougham |
| 1971 - 1972 | Chevrolet | Biscayne |
| 1971 - 1972 | Chevrolet | Brookwood |
| 1971 - 1972 | Chevrolet | Kingswood |
| 1971 - 1972 | Chevrolet | Townsman |
| 1971 - 1975 | Chevrolet | Bel Air |
| 1971 - 1976 | Chevrolet | Caprice |
| 1971 - 1976 | Chevrolet | Impala |
| 1985 - 2005 | Chevrolet | Astro |
| 1994 - 1996 | Chevrolet | Caprice |
| 1985 - 2005 | GMC | Safari |
