Delphi

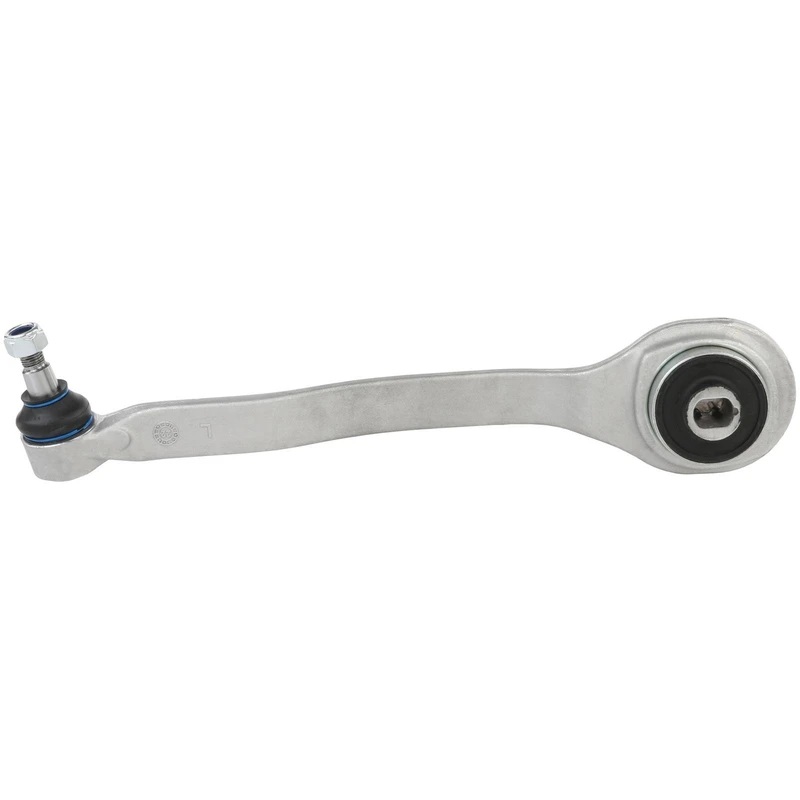

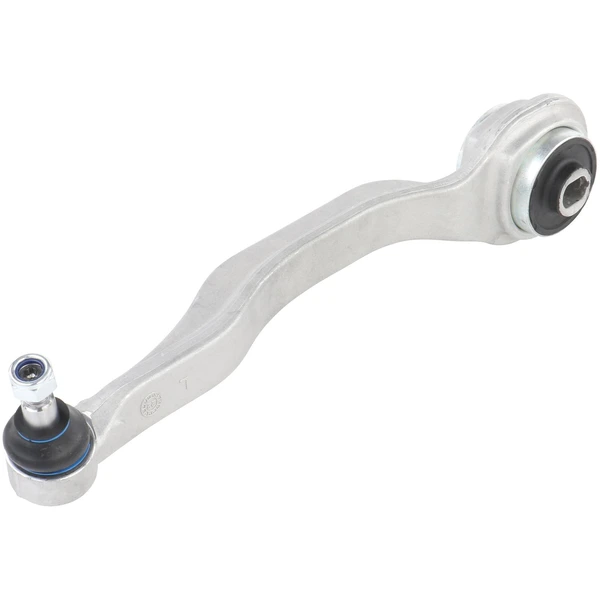

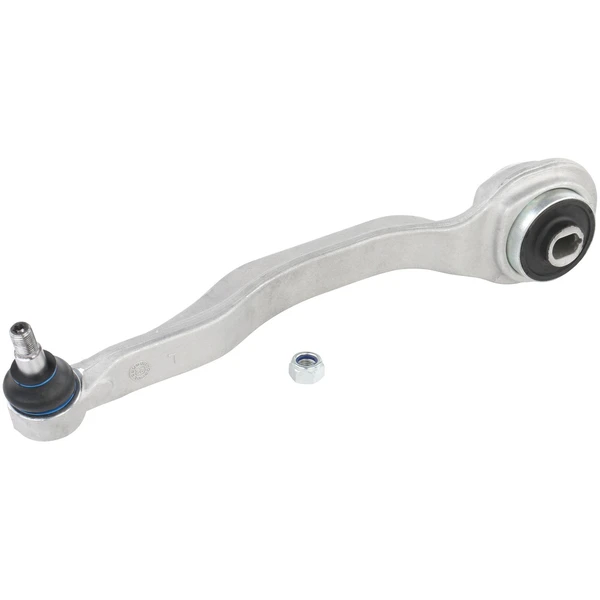

Control Arm and Ball Joint Assembly - Front Left Lower - Delphi TC1385

Part # TC1385
Item # 1001XEHE
$111.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Front Left Lower
Ball Joint Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Left Lower
Ball Joint Included
Yes
Ball Joint Stud Length (in)
2.756
Ball Joint Stud Length (mm)
70.00
Ball Joint Stud Type
Threaded
Ball Joint Thread Diameter (in)
0.551
Ball Joint Thread Diameter (mm)
14.00
Bearing Material
Plastic
Boot Color
Black
Boot Material
Choloroprene Rubber (CR)
Bushing Color
Black
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Gray
Control Arm Construction
Casting/Forged
Control Arm Material
Aluminum
Control Arm Maximum Length (in)
18.504
Control Arm Maximum Length (mm)
470.00
Control Arm Maximum Width (in)
3.937
Control Arm Maximum Width (mm)
100.00
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Finish
Uncoated
Grade Type
Premium
Greaseable
No
Locking Nut Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
1
Pre-Greased
Yes
Steering Type
Power
Thread Direction
Clockwise (Right)
Thread Size
14
Type
Control Arm and Ball Joint Assembly
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7504 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
JTC1118 - TRW STEERING AND SUSPENSION PARTS, TRW
CB28183 - MAS INDUSTRIES, DORMAN
A2113304311, A 211 330 43 11, A211 330 4311 - MERCEDESBENZ
K620538 - MOOG CHASSIS PRODUCTS
A2113301111, A211 330 1111, A 211 330 11 11 - MERCEDESBENZ
K620727 - MOOG CHASSIS PRODUCTS
MS101190 - MEVOTECH
RK622301 - MOOG CHASSIS PRODUCTS
2113301511, 211-330-15-11, 211 330 15 11 - MERCEDESBENZ
A2303301711, A230 330 1711 - MERCEDESBENZ
2113302911, 211 330 29 11, 211-330-29-11 - MERCEDESBENZ
MBH207, MB-H207 - DEEZA
RK620538 - MOOG CHASSIS PRODUCTS
TC1385 - DELPHI
2113304311, 211 330 43 11, 211-330-43-11 - MERCEDESBENZ
RK620727 - MOOG CHASSIS PRODUCTS
CK620538 - MOOG CHASSIS PRODUCTS
CMS10145 - MEVOTECH
2303301711, 230 330 17 11, 230 330 1711 - MERCEDESBENZ
2113301111, 211-330-11-11, 211 330 11 11 - MERCEDESBENZ
A2113302911, A211 330 2911, A 211 330 29 11 - MERCEDESBENZ
A2113301511, A211 330 1511, A 211 330 15 11 - MERCEDESBENZ
102-6708
101-6708

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (19)vehicles
All
Mercedes-Benz
2003 - 2003Mercedes-BenzE500
2003 - 2006Mercedes-BenzE55 AMG
2003 - 2006Mercedes-BenzSL500
2003 - 2008Mercedes-BenzSL55 AMG
2003 - 2009Mercedes-BenzE320
2004 - 2006Mercedes-BenzE500
2004 - 2010Mercedes-BenzSL600
2005 - 2011Mercedes-BenzSL65 AMG
2006 - 2006Mercedes-BenzCLS500
2006 - 2006Mercedes-BenzCLS55 AMG
2006 - 2009Mercedes-BenzE350
2007 - 2009Mercedes-BenzE550
2007 - 2009Mercedes-BenzE63 AMG
2007 - 2009Mercedes-BenzSL550
2007 - 2011Mercedes-BenzCLS550
2007 - 2011Mercedes-BenzCLS63 AMG
2009 - 2009Mercedes-BenzSL63 AMG
2011 - 2012Mercedes-BenzSL550
2011 - 2013Mercedes-BenzSL63 AMG
