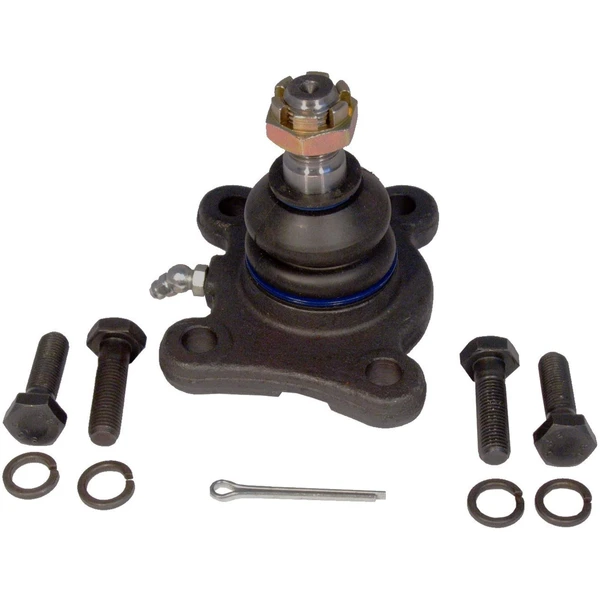

Ball Joint - Front Lower - Delphi TC1338
Part # TC1338
Item # 1001UUXL
$50.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Lower
- Material
- Steel
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- Yes
- Cotter Pin Hole
- Yes
- Cotter Pin Included
- Yes
- Distance Between Mounting Holes (mm)
- 63.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- Yes
- Greaseable
- Yes
- Height (in)
- 4.094
- Height (mm)
- 104.00
- Length (in)
- 4.010
- Length (mm)
- 103.00
- Maximum Outside Diameter (in)
- 4.539
- Maximum Outside Diameter (mm)
- 115.30
- Mount Plate Included
- No
- Mounting Bolt Head Diameter (in)
- 0.693
- Mounting Bolt Head Diameter (mm)
- 17.60
- Mounting Bolt Length (in)
- 1.240
- Mounting Bolt Length (mm)
- 31.50
- Mounting Bolt Shank Diameter (in)
- 0.394
- Mounting Bolt Shank Diameter (mm)
- 10.00
- Mounting Bolt Thread Diameter (in)
- 0.390
- Mounting Bolt Thread Diameter (mm)
- 10.00
- Mounting Bolt Thread Length (in)
- 0.984
- Mounting Bolt Thread Length (mm)
- 25.00
- Mounting Bolt Thread Pitch (mm)
- 1.25
- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 4
- Mounting Type
- Bolt-In
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.709
- Stud Tapered End 1 Diameter (mm)
- 18
- Stud Tapered End 2 Diameter (in)
- 0.787
- Stud Tapered End 2 Diameter (mm)
- 20
- Stud Thread Diameter (in)
- 0.63
- Stud Thread Diameter (mm)
- 16
- Stud Thread Length (in)
- 0.827
- Stud Thread Length (mm)
- 21
- Stud Thread Pitch (mm)
- 1.5
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Ball Joint
- Washers Included
- Yes
- Width (mm)
- 103
- Wrench Size
- 24mm
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4604 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4604 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K9519, K-9519 - MOOG CHASSIS PRODUCTS, QUICKSTEER, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS, SYD
4334039245, 43340-39245 - OEM PART NUMBER, TOYOTA
FA2054 - DURALAST, MCQUAYNORRIS
BJ07005 - IMPORT DIRECT, IMPORT DIRECT CHASSIS
5051169, 505-1169 - RAYBESTOS BRAKES, RAYBESTOS CHASSIS
JBJ457 - TRW STEERING AND SUSPENSION PARTS, TRW
4333039315, 43330-39315 - OEM PART NUMBER, TOYOTA
B9519 - MAS INDUSTRIES, DORMAN
4333039835, 43330-39835 - OEM PART NUMBER, TOYOTA
J4334039245 - TOYOTA, VOLKSWAGEN
4333039175, 43330-39175 - TOYOTA
4333039265, 43330-39265 - TOYOTA
MK9519 - MEVOTECH
4334039175, 43340-39175 - TOYOTA
43333039195, 433330-39195 - TOYOTA
TC1338 - DELPHI
BJ74056 - MAS INDUSTRIES
4336039087, 43360-39087 - TOYOTA
4336039075, 43360-39075 - TOYOTA
101-4149
101-4879
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Toyota
| 1989 - 1989 | Toyota | 4Runner |
| 1989 - 1989 | Toyota | Pickup |
| 1990 - 1995 | Toyota | 4Runner |
| 1990 - 1995 | Toyota | Pickup |
| 1993 - 1998 | Toyota | T100 |
