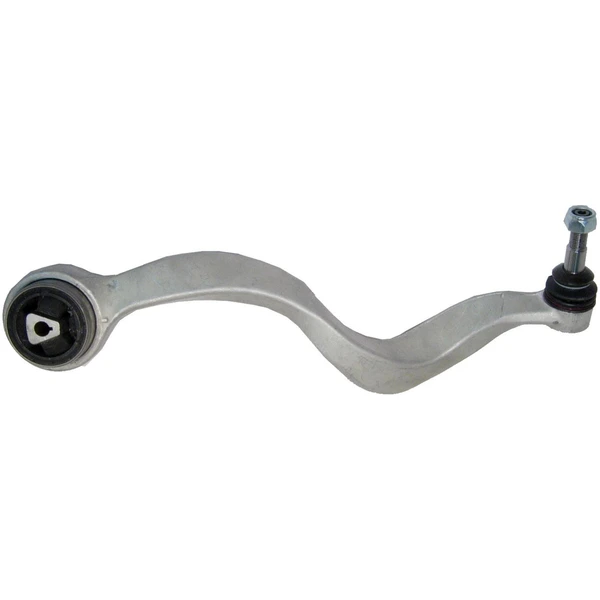

Control Arm and Ball Joint Assembly - Front Right Lower - Delphi TC1321
Part # TC1321
Item # 1001XL5G
$136.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Right Lower
- Ball Joint Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Right Lower
- Ball Joint Included
- Yes
- Adjustable
- No
- Ball Joint Stud Length (in)
- 3.346
- Ball Joint Stud Length (mm)
- 85.00
- Ball Joint Stud Type
- Threaded
- Ball Joint Thread Diameter (in)
- 0.551
- Ball Joint Thread Diameter (mm)
- 14.00
- Bearing Material
- Plastic
- Boot Color
- Black
- Boot Material
- Choloroprene Rubber (CR)
- Bushing Color
- Black
- Bushing Material
- Rubber
- Bushings Included
- Yes
- Control Arm Color
- Gray
- Control Arm Construction
- Casting/Forged
- Control Arm Material
- Aluminum
- Control Arm Maximum Length (in)
- 19.685
- Control Arm Maximum Length (mm)
- 500.00
- Control Arm Maximum Width (in)
- 3.543
- Control Arm Maximum Width (mm)
- 90.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Chloroprene Rubber (CR)
- Finish
- Uncoated
- Grade Type
- Premium
- Greaseable
- No
- Locking Nut Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Diameter (in)
- 0.480
- Mounting Hole Diameter (mm)
- 12.20
- Mounting Hole Quantity
- 1
- Pre-Greased
- Yes
- Steering Type
- Power
- Thread Direction
- Clockwise (Right)
- Thread Size
- 14
- Type
- Control Arm and Ball Joint Assembly
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7480 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7480 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
JTC1068 - TRW STEERING AND SUSPENSION PARTS, TRW
CB14124 - MAS INDUSTRIES, DORMAN
CB14124PR - MAS INDUSTRIES, DORMAN
MS10156 - MEVOTECH
31126774832, 31 12 6 774 832, 31-12-6-774-832 - BMW
BWH115, BW-H115 - DEEZA
31124026454, 31 12 4 026 454, 31-12-4-026-454, 3112 4026 454 - BMW
RK620459 - MOOG CHASSIS PRODUCTS
TC1321 - DELPHI
CMS10156 - MEVOTECH
31126756102, 3112 6756 102, 31-12-6-756-102, 31 12 6 756 102 - BMW
520792, 520-792 - DORMAN
31126760520, 3112 6760520, 31-12-6-760-520, 31 12 6 760 520 - BMW
31126765994, 31 12 6 765 994, 3112 6765 994, 31-12-6-765-994 - BMW
K620459 - MOOG CHASSIS PRODUCTS
101-6089
102-6089
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
BMW
| 2002 - 2005 | BMW | 745Li |
| 2002 - 2005 | BMW | 745i |
| 2003 - 2008 | BMW | 760Li |
| 2004 - 2006 | BMW | 760i |
| 2006 - 2008 | BMW | 750Li |
| 2006 - 2008 | BMW | 750i |
| 2007 - 2008 | BMW | Alpina B7 |
