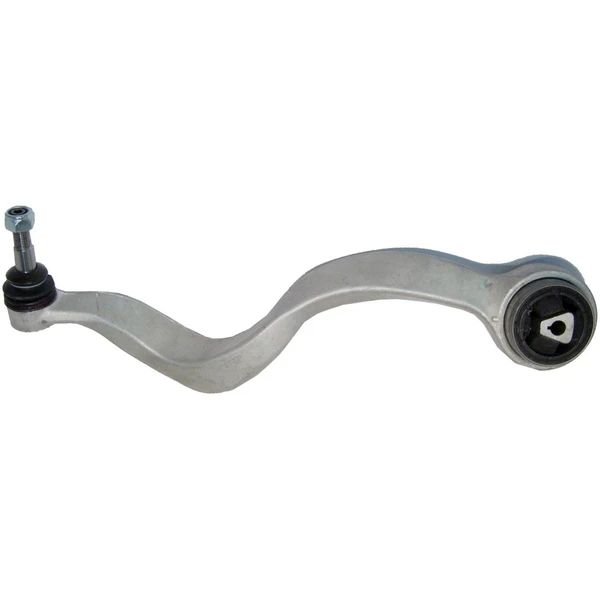

Control Arm and Ball Joint Assembly - Front Left Lower - Delphi TC1320
Part # TC1320
Item # 1001XKC2
$136.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Left Lower
- Ball Joint Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Left Lower
- Ball Joint Included
- Yes
- Adjustable
- No
- Ball Joint Stud Length (in)
- 3.346
- Ball Joint Stud Length (mm)
- 85.00
- Ball Joint Stud Type
- Threaded
- Ball Joint Thread Diameter (in)
- 0.551
- Ball Joint Thread Diameter (mm)
- 14.00
- Bearing Material
- Plastic
- Boot Color
- Black
- Boot Material
- Choloroprene Rubber (CR)
- Bushing Color
- Black
- Bushing Material
- Rubber
- Bushings Included
- Yes
- Control Arm Color
- Gray
- Control Arm Construction
- Casting/Forged
- Control Arm Material
- Aluminum
- Control Arm Maximum Length (in)
- 19.685
- Control Arm Maximum Length (mm)
- 500.00
- Control Arm Maximum Width (in)
- 3.543
- Control Arm Maximum Width (mm)
- 90.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Chloroprene Rubber (CR)
- Finish
- Uncoated
- Grade Type
- Premium
- Greaseable
- No
- Locking Nut Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Diameter (in)
- 0.480
- Mounting Hole Diameter (mm)
- 12.20
- Mounting Hole Quantity
- 1
- Pre-Greased
- Yes
- Steering Type
- Power
- Thread Direction
- Clockwise (Right)
- Thread Size
- 14
- Type
- Control Arm and Ball Joint Assembly
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7481 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7481 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31124046441, 3112 4046 441, 31 12 4 046 441, 31-12-4-046-441 - BMW, MERCEDESBENZ
31124026453, 3112 4026 453, 31 12 4 026 453, 31-12-4-026-453 - BMW, MERCEDESBENZ
JTC1067 - TRW STEERING AND SUSPENSION PARTS, TRW
520791, 520-791 - DRIVEWORKS, DORMAN
CB14123 - MAS INDUSTRIES, DORMAN
K620458 - MOOG CHASSIS PRODUCTS, XRF
CB14123PR - MAS INDUSTRIES, DORMAN
31126774831, 31 12 6 774 831, 31-12-6-774-831 - BMW
MS10155 - MEVOTECH
RK620458 - MOOG CHASSIS PRODUCTS
31126760519, 3112 6760519, 31-12-6-760-519, 31 12 6 760 519 - BMW
CMS10155 - MEVOTECH
31126756101, 3112 6756 101, 31-12-6-756-101, 31 12 6 756 101 - BMW
TC1320 - DELPHI
31126765993, 31 12 6 765 993, 3112 6765 993, 31-12-6-765-993 - BMW
31126750519, 3112 6750 519 - BMW
101-6088
102-6088
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
BMW
| 2002 - 2005 | BMW | 745Li |
| 2002 - 2005 | BMW | 745i |
| 2003 - 2008 | BMW | 760Li |
| 2004 - 2006 | BMW | 760i |
| 2006 - 2008 | BMW | 750Li |
| 2006 - 2008 | BMW | 750i |
| 2007 - 2008 | BMW | Alpina B7 |
