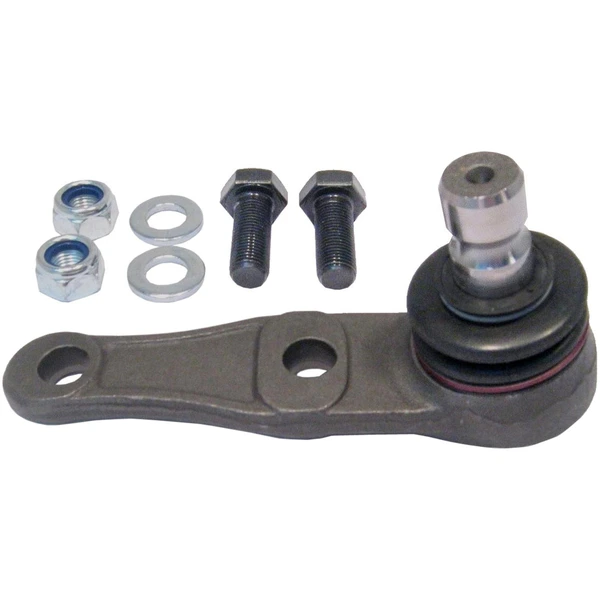

Ball Joint - Front Lower - Delphi TC1228
Part # TC1228
Item # 1001US1Q
$31.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Lower
- Material
- Steel
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushing Quantity
- 0
- Bushings Included
- No
- Castle Nut Included
- No
- Cotter Pin Hole
- No
- Cotter Pin Included
- No
- Distance Between Mounting Holes (mm)
- 63.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Greaseable
- No
- Height (in)
- 1.732
- Height (mm)
- 44.0
- Length (in)
- 5.910
- Length (mm)
- 150.0
- Maximum Outside Diameter (in)
- 2.913
- Maximum Outside Diameter (mm)
- 74.00
- Mount Plate Included
- No
- Mounting Bolt Shank Diameter (in)
- 0.480
- Mounting Bolt Shank Diameter (mm)
- 12.20
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 2
- Mounting Type
- Bolt-In
- Nuts Included
- Yes
- Suspension Grade Type
- Standard
- Tapered Stud
- No
- Type
- Premium
- Washers Included
- Yes
- Width (mm)
- 74.0
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4567 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4567 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K90362 - FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, QUICKSTEER, TRANSBEC, XRF
JBJ956 - TRW STEERING AND SUSPENSION PARTS, TRW
B90362 - MAS INDUSTRIES, DORMAN
KIF206, KI-F206 - DEEZA
BJ07022 - IMPORT DIRECT
0K2A134550A, 0K2A1-34-550A - KIA
TC1228 - DELPHI
5051342, 505-1342 - RAYBESTOS CHASSIS
0K2FA34550, 0K2FA-34-550 - KIA
MK90362 - MEVOTECH
101-5122
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Kia
| 1998 - 2001 | Kia | Sephia |
| 2000 - 2003 | Kia | Spectra |
| 2004 - 2004 | Kia | Spectra |
