Delphi

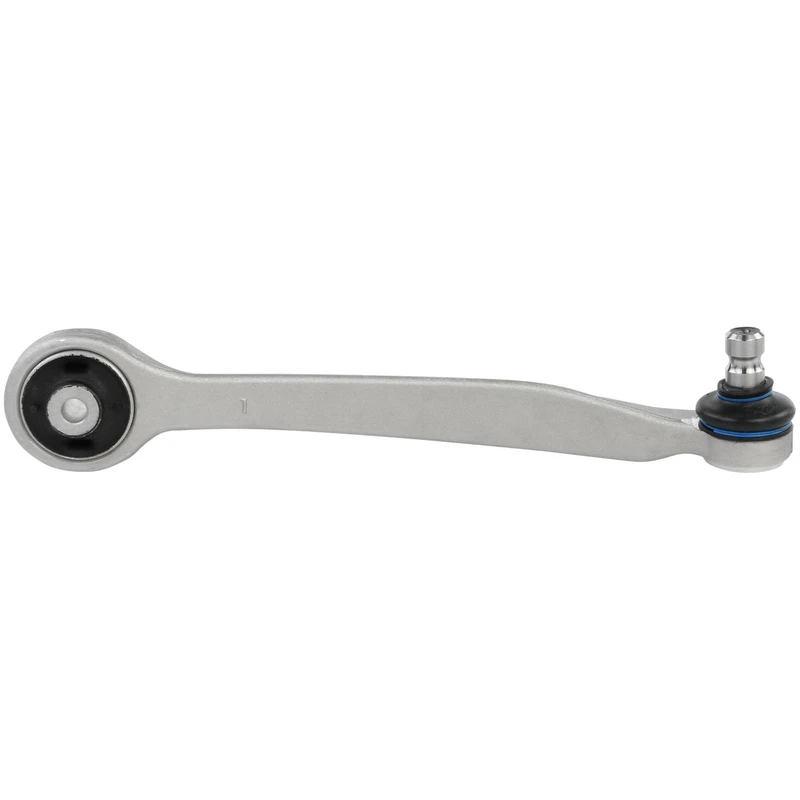

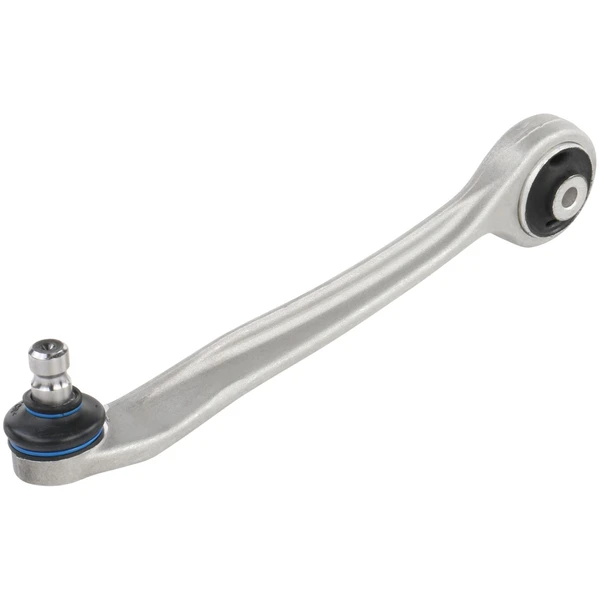

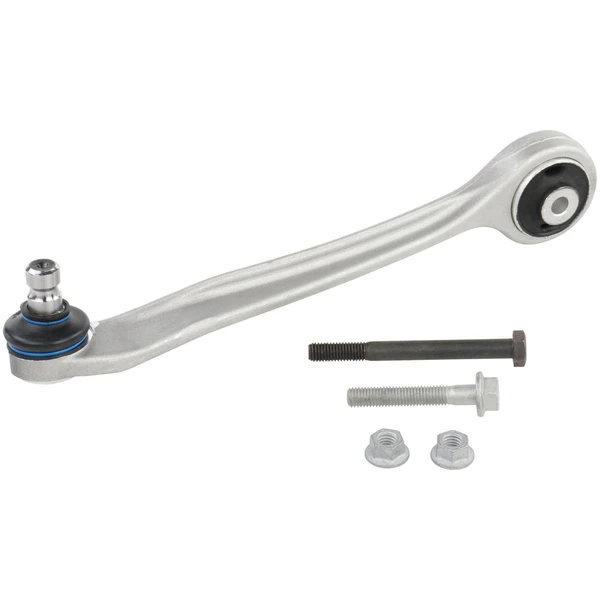

Control Arm and Ball Joint Assembly - Front Left Upper Forward - Delphi TC1177

Part # TC1177
Item # 1001X7E7
$43.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Front Left Upper Forward
Ball Joint Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Left Upper Forward
Ball Joint Included
Yes
Adjustable
No
Ball Joint Stud Length (in)
1.693
Ball Joint Stud Length (mm)
43.00
Ball Joint Stud Type
Grooved
Bearing Material
Plastic
Boot Color
Black
Boot Material
Choloroprene Rubber (CR)
Bushing Color
Black
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Gray
Control Arm Construction
Casting/Forged
Control Arm Material
Aluminum
Control Arm Maximum Length (in)
12.795
Control Arm Maximum Length (mm)
325.00
Control Arm Maximum Width (in)
2.559
Control Arm Maximum Width (mm)
65.00
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Finish
Uncoated
Grade Type
Premium
Greaseable
No
Mounting Hardware Included
No
Mounting Hole Diameter (in)
0.402
Mounting Hole Diameter (mm)
10.20
Mounting Hole Quantity
1
Pre-Greased
Yes
Steering Type
Power
Type
Control Arm and Ball Joint Assembly
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 7424 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K90497 - FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, AUDI, PARTS MASTER, VOLKSWAGEN
8E0407505P, 8E0-407-505P, 8E0 407 505 P, 8E0 407 505P - SKODA, SEAT, URO PARTS, AUDI, VOLKSWAGEN
8E0407505A, 8E0-407-505A, 8E0 407 505 A, 8E0 407 505A - SKODA, URO PARTS, AUDI, VOLKSWAGEN
8D0407505H, 8D0 407 505H, 8D0-407-505H, 8D0 407 505 H, 8D0-407-505-H - SKODA, AUDI, VOLKSWAGEN, SYD
8D0407505B, 8D0 407 505 B, 8D0 407 505B, 8D0-407-505B - SKODA, AUDI, VOLKSWAGEN
8D0407505A, 8D0 407 505A - SKODA, AUDI, VOLKSWAGEN
8D0407505F, 8D0 407 505F, 8D0 407 505 F, 8D0-407-505F - SKODA, AUDI, VOLKSWAGEN
8D0407507E, 8D0 407 507E, 8D0 407 507 E - SKODA, AUDI, VOLKSWAGEN
8E0407505C, 8E0 407 505 C, 8E0-407-505C, 8E0 407 505C - SKODA, AUDI, VOLKSWAGEN
8D0407505K, 8D0-407-505K, 8D0 407 505 K, 8D0 407 505K - SKODA, AUDI, VOLKSWAGEN
CB90497 - MAS INDUSTRIES, DORMAN
5021013, 502-1013 - RAYBESTOS BRAKES, RAYBESTOS CHASSIS
CB30831 - MAS INDUSTRIES, DORMAN
CB12027 - MAS INDUSTRIES, DORMAN
JTC421 - TRW STEERING AND SUSPENSION PARTS, TRW
CB121000 - MAS INDUSTRIES, DORMAN
CB121000PR - MAS INDUSTRIES, DORMAN
4Z7407505A, 4Z7 407 505 A, 4Z7-407-505A, 4Z7 407 505A - AUDI, VOLKSWAGEN
CB30831PR - MAS INDUSTRIES, DORMAN
VWH120, VW-H120 - DEEZA
895407505P, 895 407 505 P - AUDI
CK90497 - MOOG CHASSIS PRODUCTS
895407505C, 895 407 505 C - AUDI
MK90497 - MEVOTECH
895407505A, 895 407 505 A - AUDI
RK100092 - MOOG CHASSIS PRODUCTS
520763, 520-763 - DORMAN
FA4041 - MCQUAYNORRIS
TC1177 - DELPHI
531775, 531-775 - DORMAN

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (14)vehicles
All
Audi
Volkswagen
1996 - 2008AudiA4
1996 - 2008AudiA4 Quattro
1998 - 2004AudiA6
1998 - 2004AudiA6 Quattro
2000 - 2002AudiS4
2001 - 2005AudiAllroad Quattro
2002 - 2003AudiS6
2003 - 2004AudiRS6
2004 - 2009AudiS4
2007 - 2008AudiRS4
2009 - 2009AudiA4
2009 - 2009AudiA4 Quattro
2009 - 2009AudiA4 Quattro
1998 - 2005VolkswagenPassat
