Delphi

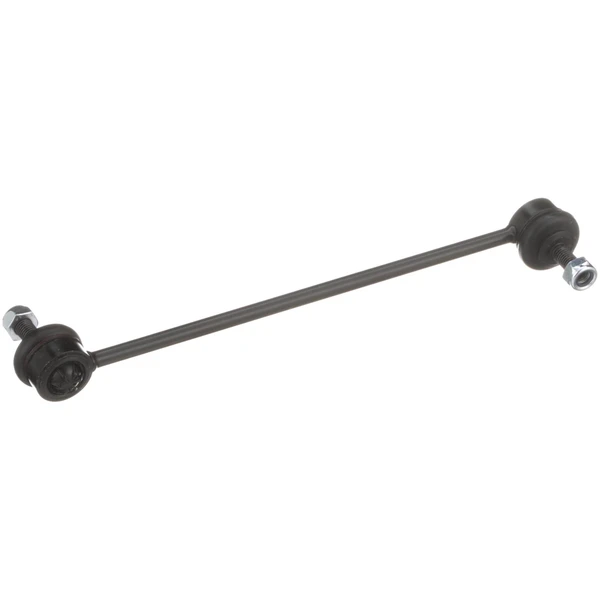

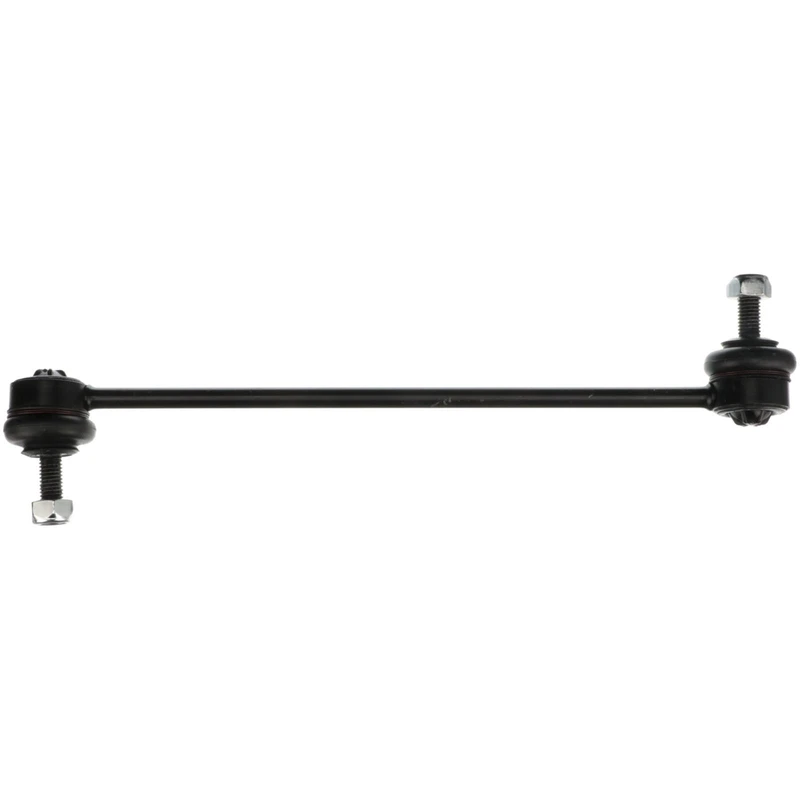

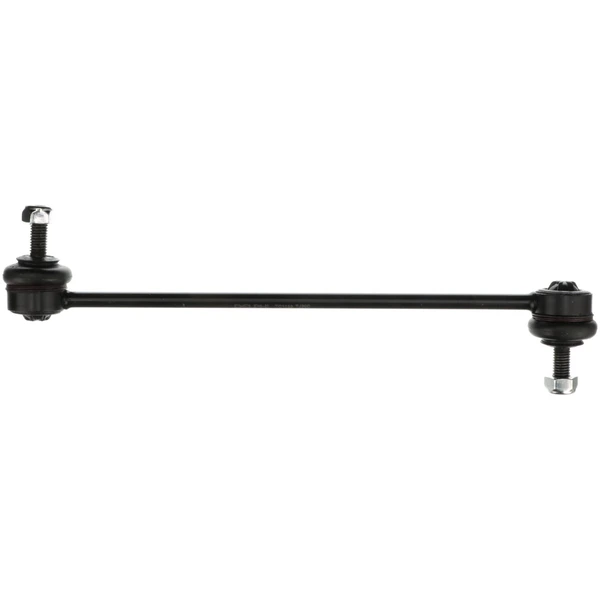

Suspension Stabilizer Bar Link - Delphi TC1133

Part # TC1133
Item # 1001VDNG
$24.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Material
Steel
Bolt Length (in)
11.417
Bolt Length (mm)
290.00
Bolt Thread Diameter (in)
0.390
Bolt Thread Diameter (mm)
10.00
Bolt Thread Size
M10x1.50
Bolts Included
No
Bushing Color
Black
Bushing Material
Rubber
Bushings Included
No
Dust Boot Included
Yes
End 1 Type
Ball Joint
End 2 Type
Ball Joint
Grade Type
Regular
Greaseable
No
Height (in)
3.780
Height (mm)
96.00
Housing Material
Steel
Length (in)
11.417
Length (mm)
290.00
Locking Nuts Included
Yes
Position(s)
Front
Type
Suspension Stabilizer Bar Link
Washers Included
No
Weight (lb)
0.75
Width (in)
1.417
Width (mm)
36
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5139 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K80296 - MOOG CHASSIS PRODUCTS, QUICKSTEER, IMPORT DIRECT CHASSIS, PRECISION CHASSIS, PARTS MASTER, MASTERPRO CHASSIS, FIRESTONE, XRF, FALCON STEERING SYSTEMS
50700464 - FIAT, LANCIA, CHRYSLER, ABARTH
51801136 - FIAT, LANCIA, CHRYSLER, ABARTH
51795269 - FIAT, LANCIA, CHRYSLER, ABARTH
50700941 - FIAT, LANCIA, ABARTH
1580517 - FIAT, MAZDA, FORD
K750507 - MOOG CHASSIS PRODUCTS, QUICKSTEER, ULTRAPOWER AUTO PARTS
JTS7552 - TRW STEERING AND SUSPENSION PARTS, TRW
SL20005 - MAS INDUSTRIES, DORMAN
JTS1487 - TRW
TC1133 - DELPHI
SL74105 - MAS INDUSTRIES
9S515K484AA - FORD
MS108148 - MEVOTECH
SL68075 - MAS INDUSTRIES
FIL130, FI-L130 - DEEZA
1540281 - FORD
SL85245 - MAS INDUSTRIES
MK80296 - MEVOTECH
101-5090

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Fiat
2012 - 2019Fiat500
