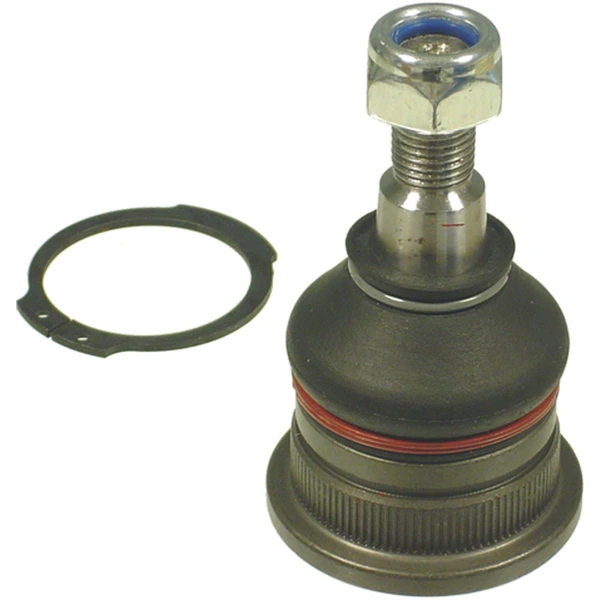

Ball Joint - Front Lower - Delphi TC1078
Part # TC1078
Item # 1001UQ89
$23.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Lower
- Material
- Steel
- Color
- Silver
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- No
- Cotter Pin Hole
- No
- Cotter Pin Included
- No
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Greaseable
- No
- Height (in)
- 3.346
- Height (mm)
- 85.00
- Maximum Outside Diameter (in)
- 1.854
- Maximum Outside Diameter (mm)
- 47.10
- Mount Plate Included
- No
- Mounting Bolts Included
- No
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 0
- Mounting Type
- Press-In
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.591
- Stud Tapered End 1 Diameter (mm)
- 15
- Stud Tapered End 2 Diameter (in)
- 0.673
- Stud Tapered End 2 Diameter (mm)
- 17.1
- Stud Thread Diameter (in)
- 0.472
- Stud Thread Diameter (mm)
- 12
- Stud Thread Length (in)
- 0.866
- Stud Thread Length (mm)
- 22
- Stud Thread Pitch (mm)
- 1.25
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Ball Joint
- Washers Included
- No
- Width (mm)
- 47.1
- Wrench Size
- 19mm
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4549 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 4549 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K500031 - FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, QUICKSTEER, PARTS MASTER, FIRESTONE, XRF
5452011011, 54520-11011 - MITSUBISHI, HYUNDAI, PLYMOUTH, DODGE
BJ60025 - MAS INDUSTRIES, DORMAN
5453031600, 54530-31600 - HYUNDAI, KIA
BJ60535 - MAS INDUSTRIES, DORMAN
545302F000, 54530-2F000 - HYUNDAI, KIA
5450331600, 54503-31600 - HYUNDAI, KIA
545303X000, 54530-3X000 - HYUNDAI, KIA
JBJ154 - TRW STEERING AND SUSPENSION PARTS, TRW
BJ60025XL - MAS INDUSTRIES, DORMAN
BJ06007 - IMPORT DIRECT, IMPORT DIRECT CHASSIS
5450338A00, 54503-38A00 - HYUNDAI, KIA
MK500031 - MEVOTECH
TC1078 - DELPHI
MK9455 - MEVOTECH
5452031600, 54520-31600 - HYUNDAI
BJ60535XL - DORMAN
101-4113
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Hyundai
Kia
| 1996 - 2006 | Hyundai | Elantra |
| 1997 - 2001 | Hyundai | Tiburon |
| 2003 - 2008 | Hyundai | Tiburon |
| 2004 - 2004 | Kia | Spectra |
| 2005 - 2009 | Kia | Spectra |
| 2005 - 2009 | Kia | Spectra5 |
