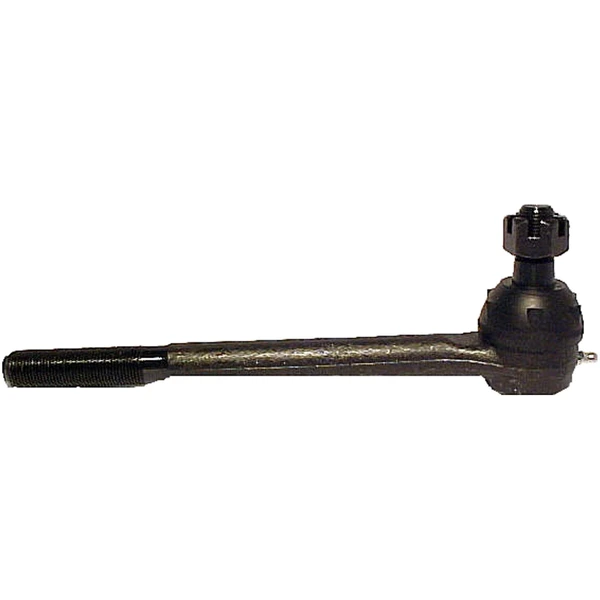

Tie Rod End - Inner - Delphi TA2136
Part # TA2136
Item # 1001XVRT
$26.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Inner
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Inner
- Color
- Gray
- Adjustable
- No
- Bearing Material
- Plastic
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- End 1 Gender
- Male
- End 1 Thread Diameter (in)
- 0.688
- End 1 Thread Diameter (mm)
- 17.48
- End 1 Thread Direction
- Counterclockwise (Left)
- End 1 Threads Per Inch
- 18
- End 2 Gender
- Male
- End 2 Thread Diameter (in)
- 0.625
- End 2 Thread Diameter (mm)
- 15.88
- End 2 Thread Direction
- Clockwise (Right)
- End 2 Threads Per Inch
- 18
- Grade
- Premium
- Grade Type
- Standard
- Grease Fitting Included
- Yes
- Greaseable
- Yes
- Height (mm)
- 92.00
- Housing Material
- Steel
- Length (mm)
- 247.00
- Length - Stud Center to End (in)
- 8.858
- Length - Stud Center to End (mm)
- 225.00
- Mounting Hardware Included
- Yes
- Pre-Greased
- Yes
- Stud Type
- Threaded
- Tie Rod Material
- Steel
- Type
- Straight
- Weight (lb)
- 1.9
- Width (mm)
- 44
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 1429 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 1429 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
ES409L, ES-409L, ES-409-LĀ - NAPA, MOOG CHASSIS PRODUCTS, BARCAP, TRANSBEC, PRECISION CHASSIS, ELGIN, FALCON STEERING SYSTEMS, DURALAST, MCQUAYNORRIS, TRW STEERING AND SUSPENSION PARTS, IMPORT DIRECT CHASSIS, GMC, QUALIS, CHEVROLET, STEMPF, SYD
ES409LTĀ - MOOG CHASSIS PRODUCTS, QUICKSTEER, TRANSBEC, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS
14002550Ā - GENERAL MOTORS, GMC, CHEVROLET
T409LĀ - MAS INDUSTRIES, DORMAN
JTE7045Ā - TRW STEERING AND SUSPENSION PARTS, TRW
MES409LTĀ - MEVOTECH
TA2136Ā - DELPHI
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (64)vehicles
All
Chevrolet
GMC
| 1971 - 1972 | Chevrolet | G20 Van |
| 1971 - 1974 | Chevrolet | C30 Pickup |
| 1971 - 1974 | Chevrolet | G30 Van |
| 1971 - 1974 | Chevrolet | P20 Van |
| 1971 - 1974 | Chevrolet | P30 Van |
| 1973 - 1974 | Chevrolet | Blazer |
| 1973 - 1974 | Chevrolet | C10 Pickup |
| 1973 - 1974 | Chevrolet | G10 Van |
| 1973 - 1974 | Chevrolet | G20 Van |
| 1973 - 1974 | Chevrolet | P10 Van |
| 1973 - 1986 | Chevrolet | C10 Suburban |
| 1975 - 1980 | Chevrolet | P10 |
| 1975 - 1982 | Chevrolet | G10 |
| 1975 - 1982 | Chevrolet | G20 |
| 1975 - 1982 | Chevrolet | G30 |
| 1975 - 1982 | Chevrolet | K5 Blazer |
| 1975 - 1986 | Chevrolet | C10 |
| 1975 - 1986 | Chevrolet | C20 |
| 1975 - 1986 | Chevrolet | C30 |
| 1975 - 1989 | Chevrolet | P20 |
