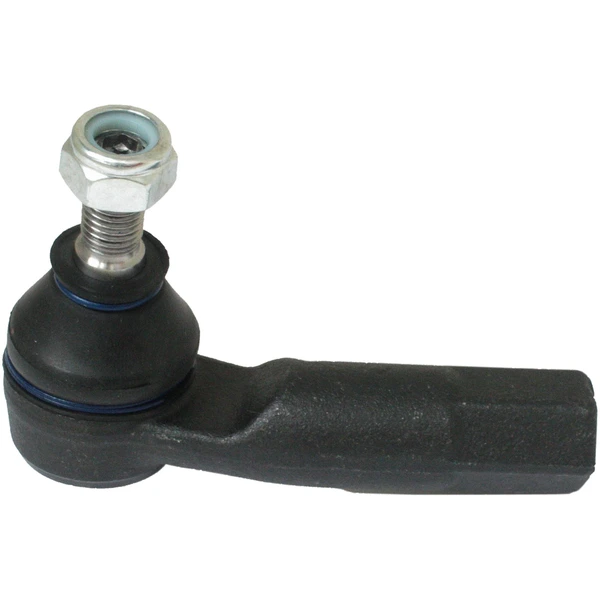

Tie Rod End - Left Outer - Delphi TA1914
Part # TA1914
Item # 1001XTU3
$23.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Left Outer
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Left Outer
- Color
- Gray
- Adjustable
- No
- Bearing Material
- Plastic
- Cone Outside Diameter (in)
- 0.646
- Cone Outside Diameter (mm)
- 16.40
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- End 1 Thread Diameter (in)
- 0.472
- End 1 Thread Diameter (mm)
- 12.00
- End 1 Thread Direction
- Clockwise (Right)
- End 2 Gender
- Female
- End 2 Thread Diameter (in)
- 0.630
- End 2 Thread Diameter (mm)
- 16.00
- End 2 Thread Direction
- Clockwise (Right)
- End 2 Thread Pitch (mm)
- 1.5
- Grade
- Premium
- Grade Type
- Standard
- Grease Fitting Included
- No
- Greaseable
- No
- Height (mm)
- 76.40
- Housing Material
- Steel
- Length - Stud Center to End (in)
- 3.740
- Length - Stud Center to End (mm)
- 95.00
- Mounting Hardware Included
- Yes
- Pre-Greased
- Yes
- Shank Length (in)
- 0.646
- Shank Length (mm)
- 16.40
- Stud Length (in)
- 0.646
- Stud Length (mm)
- 16.40
- Stud Type
- Threaded
- Tie Rod Material
- Steel
- Tube Diameter (in)
- 0.984
- Tube Diameter (mm)
- 25.00
- Type
- Bent
- Weight (lb)
- 1.11
- Width (mm)
- 37
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 1180 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 1180 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
ES80666 - DURALAST, NAPA, MOOG CHASSIS PRODUCTS, TRW STEERING AND SUSPENSION PARTS, QUICKSTEER, XRF
1K0423811J, 1K0 423 811 J - SKODA, SEAT, URO PARTS, AUDI, VOLKSWAGEN
1K0423811E, 1K0 423 811 E, 1K0 423 811E - SKODA, SEAT, AUDI, VOLKSWAGEN, BALKAMP
1K0423811K, 1K0 423 811 K - SKODA, SEAT, AUDI, VOLKSWAGEN
1K0423811C, 1K0 423 811 C, 1K0423 811C, 1K0 423 811C - SKODA, SEAT, AUDI, VOLKSWAGEN
1K0423811A, 1K0 423 811 A, 1K0 423 811A - SKODA, SEAT, AUDI, VOLKSWAGEN
1K0423811B, 1K0 423 811B - SKODA, SEAT, AUDI, VOLKSWAGEN
1K0426811E, 1K0 426 811E - SEAT, AUDI, VOLKSWAGEN
1K0423811G, 1K0 423 811 G - SKODA, AUDI, VOLKSWAGEN
1K0423811F, 1K0 423 811F - SEAT, AUDI, VOLKSWAGEN
ES4441 - MCQUAYNORRIS, QUALIS
ER02050 - IMPORT DIRECT, IMPORT DIRECT CHASSIS
ES800505 - DURALAST, MOOG CHASSIS PRODUCTS
JTE1052 - TRW STEERING AND SUSPENSION PARTS, TRW
TO43001 - MAS INDUSTRIES, DORMAN
JTE1054 - TRW STEERING AND SUSPENSION PARTS, TRW
JTE1053 - TRW STEERING AND SUSPENSION PARTS, TRW
ADT203, AD-T203 - DEEZA
MS10624 - MEVOTECH
TA1914 - DELPHI
101-5850
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (31)vehicles
All
Audi
Volkswagen
| 2006 - 2013 | Audi | A3 Quattro |
| 2006 - 2020 | Audi | A3 |
| 2015 - 2018 | Audi | Q3 Quattro |
| 2015 - 2020 | Audi | A3 Quattro |
| 2015 - 2020 | Audi | S3 |
| 2015 - 2022 | Audi | Q3 |
| 2016 - 2018 | Audi | A3 Sportback e-tron |
| 2022 - 2022 | Audi | A3 |
| 2022 - 2022 | Audi | A3 Quattro |
| 2022 - 2022 | Audi | S3 |
| 2005 - 2009 | Volkswagen | Jetta |
| 2006 - 2009 | Volkswagen | Rabbit |
| 2006 - 2010 | Volkswagen | Passat |
| 2006 - 2021 | Volkswagen | GTI |
| 2007 - 2016 | Volkswagen | Eos |
| 2008 - 2008 | Volkswagen | R32 |
| 2009 - 2010 | Volkswagen | Passat CC |
| 2009 - 2017 | Volkswagen | CC |
| 2009 - 2022 | Volkswagen | Tiguan |
| 2010 - 2021 | Volkswagen | Golf |
