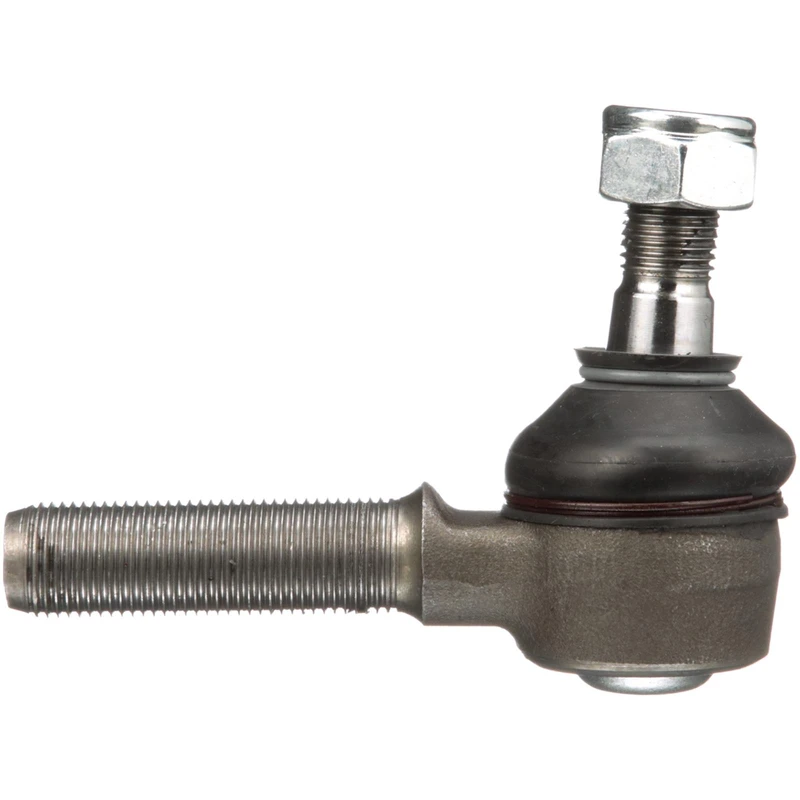

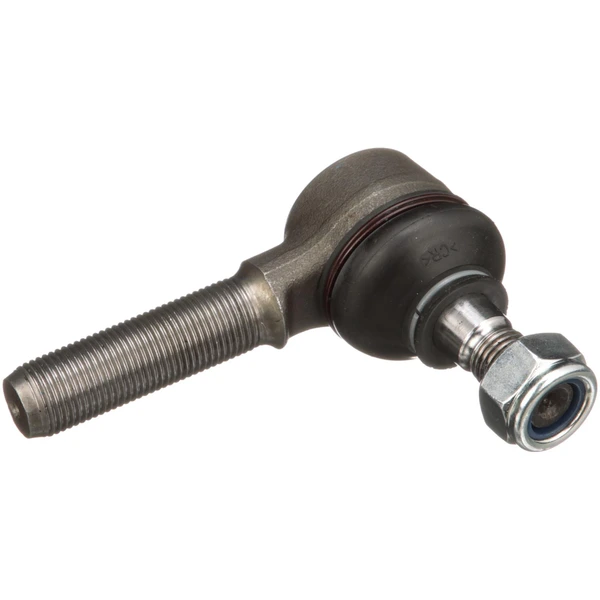

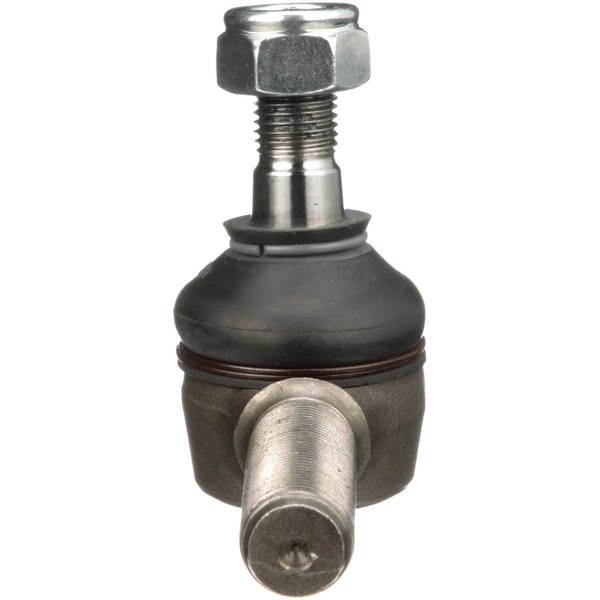

Tie Rod End - Outer - Delphi TA1545
Part # TA1545
Item # 1001XNGY
$23.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Outer
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Outer
- Color
- Gray
- Adjustable
- No
- Bearing Material
- Plastic
- Boot Color
- Black
- Cone Outside Diameter (in)
- 0.630
- Cone Outside Diameter (mm)
- 16.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- End 1 Gender
- Male
- End 1 Thread Diameter (in)
- 0.551
- End 1 Thread Diameter (mm)
- 14.00
- End 1 Thread Direction
- Clockwise (Right)
- End 2 Gender
- Male
- End 2 Thread Diameter (in)
- 0.669
- End 2 Thread Diameter (mm)
- 17.00
- End 2 Thread Direction
- Counterclockwise (Left)
- End 2 Thread Pitch (mm)
- 1.5
- Grade
- Premium
- Grade Type
- Standard
- Height (mm)
- 75.60
- Housing Material
- Steel
- Length - Stud Center to End (in)
- 3.543
- Length - Stud Center to End (mm)
- 90.00
- Mounting Hardware Included
- Yes
- Pre-Greased
- Yes
- Shank Length (in)
- 0.630
- Shank Length (mm)
- 16.00
- Stud Length (in)
- 0.630
- Stud Length (mm)
- 16.00
- Stud Type
- Threaded
- Tie Rod Material
- Steel
- Tube Diameter (in)
- 0.669
- Tube Diameter (mm)
- 17.00
- Type
- Straight
- Weight (lb)
- 1
- Width (mm)
- 40
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 940 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 940 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
ES2376, ES-2376 - DURALAST, NAPA, MOOG CHASSIS PRODUCTS, MCQUAYNORRIS, QUICKSTEER, PARTS MASTER, QUALIS, MASTERPRO CHASSIS, FIRESTONE, XRF, FALCON STEERING SYSTEMS, SYD
4504639106, 45046-39106 - OEM PART NUMBER, TOYOTA
T2376 - MAS INDUSTRIES, DORMAN
534386, 534-386 - MAS INDUSTRIES, DORMAN
4504629115, 45046-29115 - OEM PART NUMBER, TOYOTA
4504629125, 45046-29125 - OEM PART NUMBER, TOYOTA
ER02001 - IMPORT DIRECT, IMPORT DIRECT CHASSIS
4504639165, 45046-39165 - OEM PART NUMBER, TOYOTA
4504639175, 45046-39175 - OEM PART NUMBER, TOYOTA
JTE469 - TRW STEERING AND SUSPENSION PARTS, TRW
4504639125, 45046-39125 - OEM PART NUMBER, TOYOTA
4504639105, 45046-39105 - OEM PART NUMBER, TOYOTA
4504639215, 45046-39215 - OEM PART NUMBER, TOYOTA
J4504639175, J45 046 391 75 - TOYOTA, VOLKSWAGEN
TA1545 - DELPHI
TYS608, TY-S608 - DEEZA
4504639385, 45046-39385 - TOYOTA
J4504639235, J45 046 392 35 - VOLKSWAGEN
4504639235, 45046-39235 - TOYOTA
MES2376 - MEVOTECH
4504639135, 45046-39135 - TOYOTA
101-1766
101-3317
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Toyota
| 1979 - 1995 | Toyota | Pickup |
| 1986 - 1995 | Toyota | 4Runner |
| 1993 - 1998 | Toyota | T100 |
