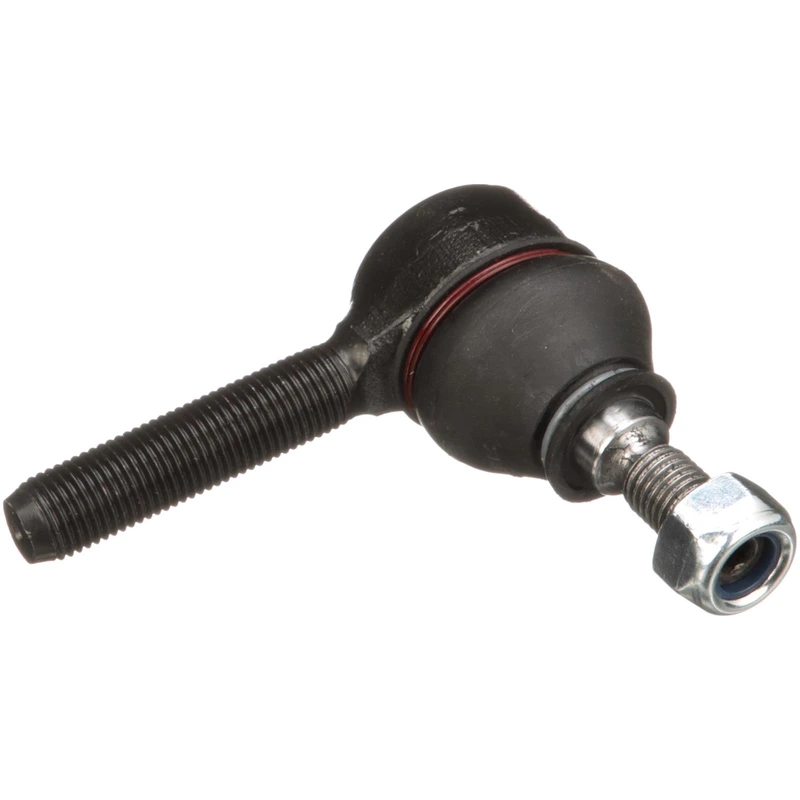

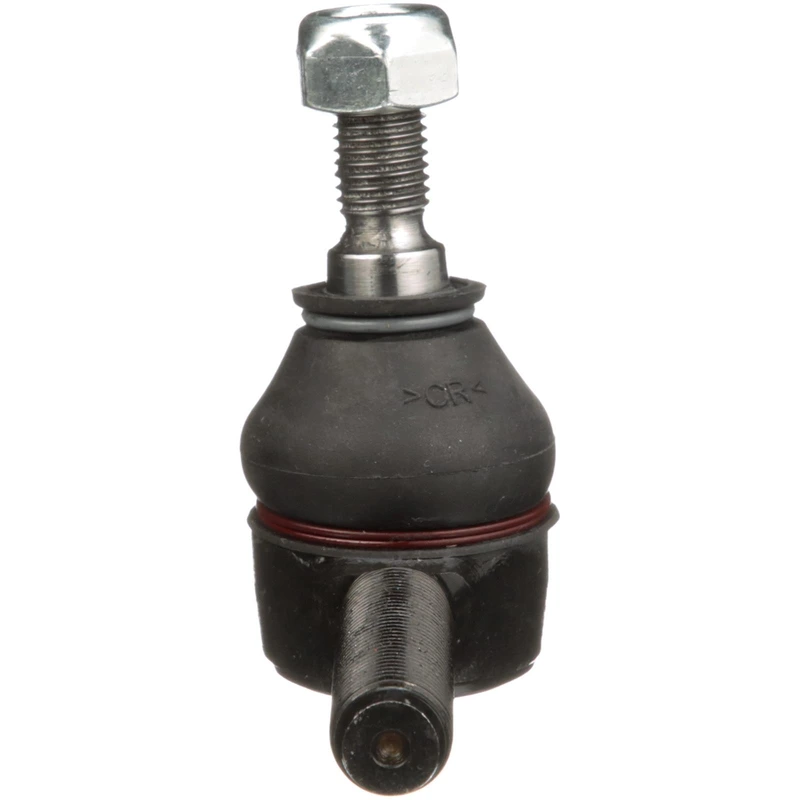

Tie Rod End - Outer - Delphi TA1528
Part # TA1528
Item # 1001XN38
$22.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Outer
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Outer
- Color
- Black
- Adjustable
- No
- Bearing Material
- Plastic
- Cone Outside Diameter (in)
- 0.650
- Cone Outside Diameter (mm)
- 16.50
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- End 1 Gender
- Male
- End 1 Thread Diameter (in)
- 0.472
- End 1 Thread Diameter (mm)
- 12.00
- End 1 Thread Direction
- Clockwise (Right)
- End 2 Gender
- Male
- End 2 Thread Diameter (in)
- 0.551
- End 2 Thread Diameter (mm)
- 14.00
- End 2 Thread Direction
- Clockwise (Right)
- End 2 Thread Pitch (mm)
- 1.5
- Grade
- Premium
- Grade Type
- Standard
- Grease Fitting Included
- No
- Greaseable
- No
- Height (mm)
- 79.40
- Housing Material
- Steel
- Length - Stud Center to End (in)
- 3.228
- Length - Stud Center to End (mm)
- 82.00
- Mounting Hardware Included
- Yes
- Pre-Greased
- Yes
- Shank Length (in)
- 0.650
- Shank Length (mm)
- 16.50
- Stud Length (in)
- 0.650
- Stud Length (mm)
- 16.50
- Stud Type
- Threaded
- Tie Rod Material
- Steel
- Tube Diameter (in)
- 0.551
- Tube Diameter (mm)
- 14.00
- Type
- Straight
- Weight (lb)
- 0.83
- Width (mm)
- 37
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 922 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 922 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
ES3315 - DURALAST, NAPA, FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, MCQUAYNORRIS, QUICKSTEER, QUALIS
TO28104 - MAS INDUSTRIES, DORMAN
TO28103 - MAS INDUSTRIES, DORMAN
JTE1015 - TRW STEERING AND SUSPENSION PARTS, TRW
0013306935, 001 330 69 35 - MERCEDESBENZ
0013305435, 001 330 54 35 - MERCEDESBENZ
TA1528 - DELPHI
A0013305435, A001 330 5435 - MERCEDESBENZ
ER01021 - IMPORT DIRECT
MES3315 - MEVOTECH
0013305235, 001 330 52 35 - MERCEDESBENZ
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (10)vehicles
All
Mercedes-Benz
| 1990 - 1993 | Mercedes-Benz | 300SL |
| 1990 - 1993 | Mercedes-Benz | 500SL |
| 1992 - 1993 | Mercedes-Benz | 400E |
| 1992 - 1993 | Mercedes-Benz | 500E |
| 1993 - 1993 | Mercedes-Benz | 600SL |
| 1994 - 1994 | Mercedes-Benz | E500 |
| 1994 - 1995 | Mercedes-Benz | E420 |
| 1994 - 1997 | Mercedes-Benz | SL320 |
| 1994 - 2002 | Mercedes-Benz | SL500 |
| 1994 - 2002 | Mercedes-Benz | SL600 |
