Delphi

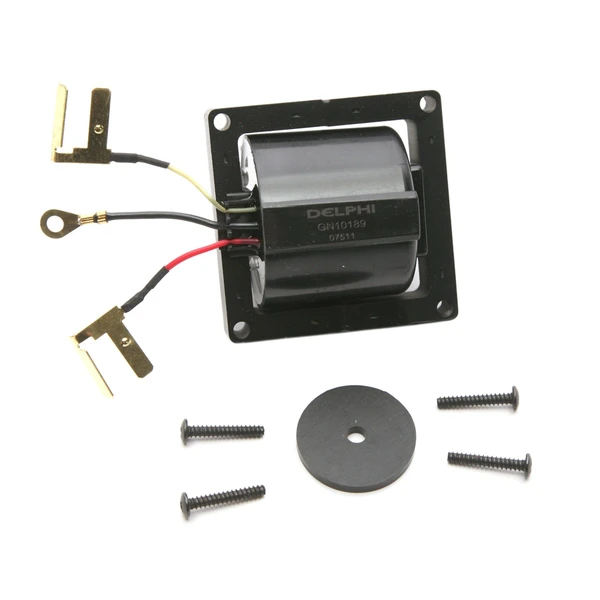

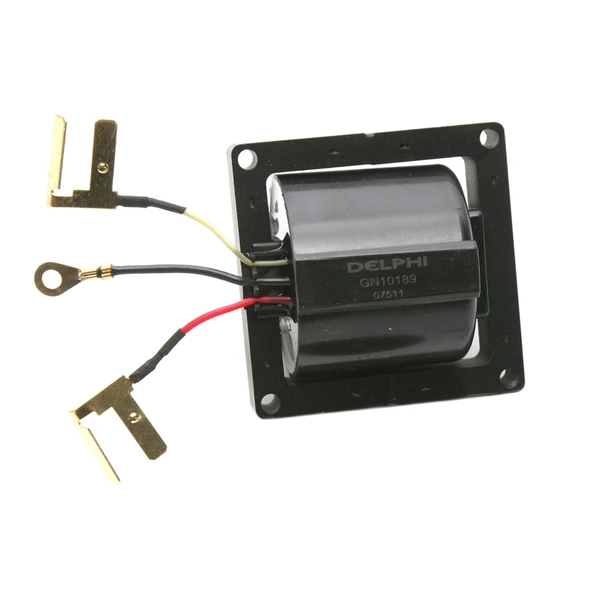

Ignition Coil - Delphi GN10189

Part # GN10189
Item # 1001VSGU
$58.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Terminal Type
Ring
Terminal Quantity
3
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Terminal Type
Ring
Terminal Quantity
3
Coil Type
HEI
Coil Wire Included
Yes
Connector Gender
Male
Grade Type
Regular
Ignition Type
Standard
Interface Description
3 Wires; 1 HV Tower ( Flat Surfaced)
Mount Type
4 Mounting Holes
Mounting Hardware Included
No
Mounting Hole Quantity
4
Oil Filled
No
Requires External Resistor
No
Terminal Gender
Male Female
Voltage (2h)
12.0
Wire Quantity
0
Show all
Note

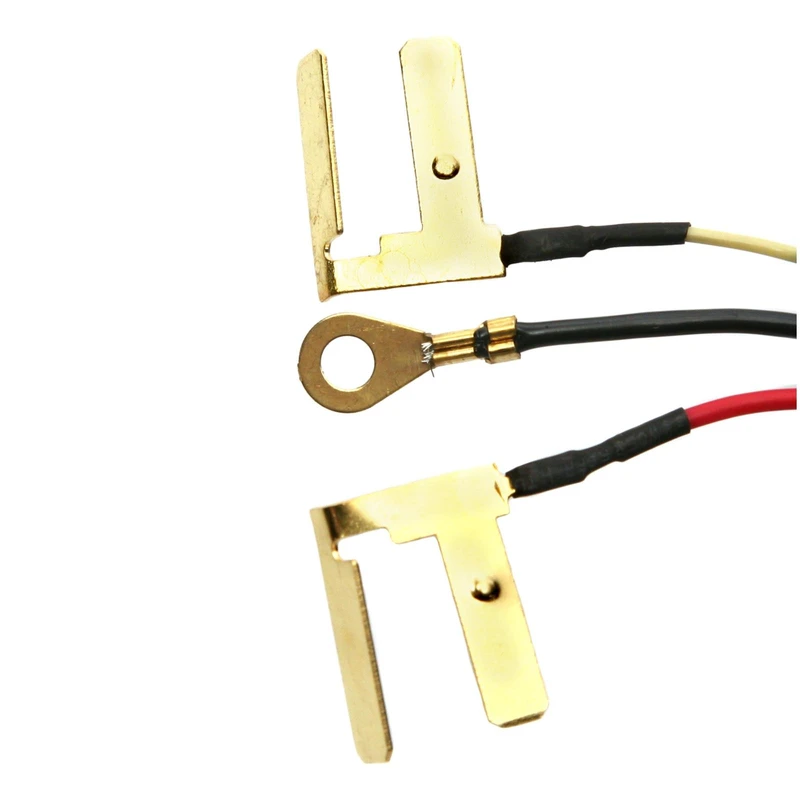

3 Wire Connectors
Black has Ring Terminal
Red & Yellow have U shape Terminals
About this item
The ignition coil plays an essential role in generating the high-voltage spark needed to ignite the air-fuel mixture within a vehicle's engine. Delphi's ignition coils are meticulously designed and thoroughly tested to endure the typical stresses that can lead to failure. With this robust engineering, you can rely on Delphi ignition coils for consistent performance and reliability in your vehicle.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 9253 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
1985473 - CADILLAC, AVANTI, GENERAL MOTORS, OLDSMOBILE, JEEP, PONTIAC, AMERICAN MOTORS, BUICK, GMC, CHEVROLET, ACDELCO, CHECKER
12498335 - CADILLAC, AVANTI, GENERAL MOTORS, OLDSMOBILE, JEEP, PONTIAC, AMERICAN MOTORS, BUICK, GMC, CHEVROLET, ACDELCO, CHECKER
E42, E-42 - BWD SELECT, BORGWARNER, BWD
C614, C-614 - RICHPORTER, SPECTRA PREMIUM, UNITED AUTOMOTIVE ENGINE PRODUCTS
9201003, 920-1003 - WALKER PRODUCTS, THUNDERSPARK, E3
C834, C-834 - DURALAST, SPECTRA PREMIUM, WELLS
DR31T, DR-31T - STANDARD MOTOR PRODUCTS, SMP, T SERIES
DR31, DR-31 - STANDARD MOTOR PRODUCTS, SMP, BLUE STREAK
IC19SB - NAPA, ECHLIN
25193, 2-5193 - MASTERPRO, MASTERPRO IGNITION
CLS1132 - TPI TRUE PARTS INCORPORATED, IMC
26196 - CARQUEST, DRIVEWORKS
5C1024 - WVE, AIRTEX
CDR31 - WPS WORLD POWER SYSTEMS, WAI
IC19, IC-19 - ECHLIN
521911, 521-911, 52-1911 - CARQUEST
E42P - BWD
7B9 - ADVANTECH
GN10189 - DELPHI
26C1065 - CARQUEST
D504A - ACDELCO

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (130)vehicles
All
Cadillac
Chevrolet
GMC
Pontiac
1985 - 1985CadillacCommercial Chassis
1985 - 1985CadillacDeVille
1985 - 1985CadillacEldorado
1985 - 1985CadillacSeville
1985 - 1986CadillacFleetwood
1986 - 1990CadillacCommercial Chassis
1986 - 1990CadillacDeVille
1987 - 1990CadillacFleetwood
1985 - 1985ChevroletAstro
1985 - 1985ChevroletG30
1985 - 1985ChevroletImpala
1985 - 1985ChevroletImpala
1985 - 1985ChevroletK20
1985 - 1985ChevroletK20
1985 - 1985ChevroletK20 Suburban
1985 - 1986ChevroletC10
1985 - 1986ChevroletC10
1985 - 1986ChevroletC10
1985 - 1986ChevroletC10 Suburban
1985 - 1986ChevroletC10 Suburban
