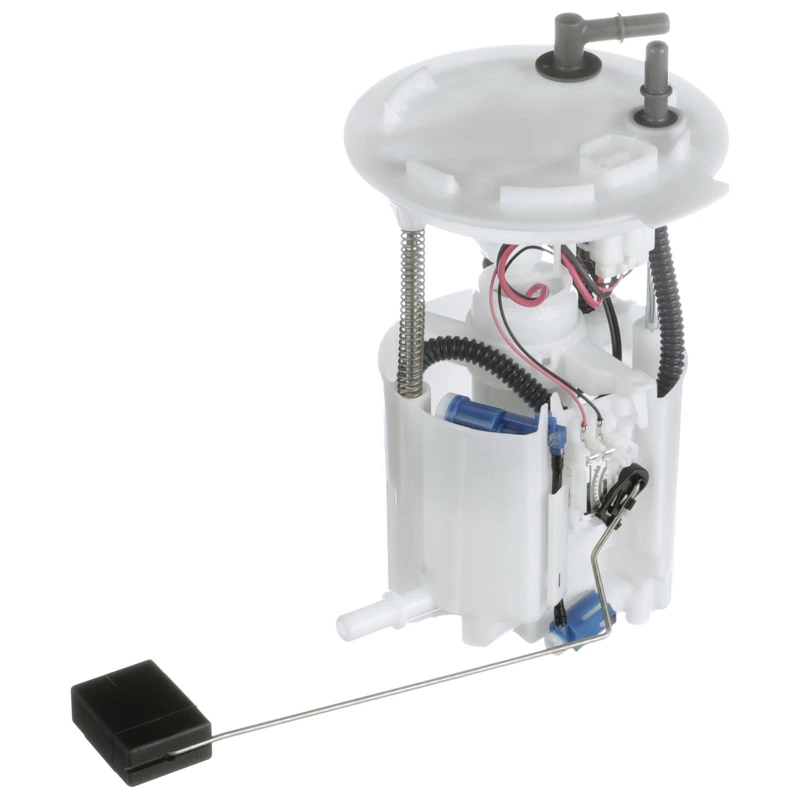

Fuel Pump Module Assembly - Left Driver Side - Delphi FG2453
Part # FG2453
Item # 1001X3WY
$656.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Left Driver Side
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 13
- Average Flow Rating (gph)
- 18
- Connector Gender
- Female
- Connector Quantity
- 1

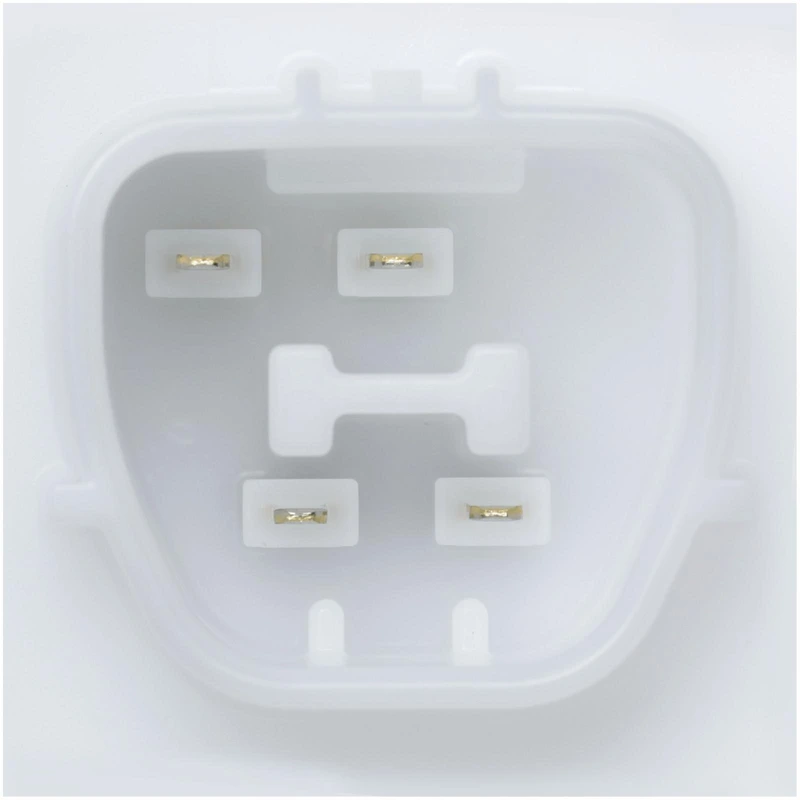

- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 93
- Minimum Pressure (PSI)
- 90
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 180
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps offer the convenience of free shipping and the protection of a warranty of up to 3 years.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Optimized Fuel Delivery: Delphi fuel pumps are designed to improve pumping efficiency, lower energy consumption, and have a negligible effect on the vehicle's electrical system.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Validated Vehicle Fit: Delphi's parts are thoroughly validated and matched to the correct vehicle application for optimal fit.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps offer the convenience of free shipping and the protection of a warranty of up to 3 years.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Optimized Fuel Delivery: Delphi fuel pumps are designed to improve pumping efficiency, lower energy consumption, and have a negligible effect on the vehicle's electrical system.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Validated Vehicle Fit: Delphi's parts are thoroughly validated and matched to the correct vehicle application for optimal fit.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
DG9Z9H307J, DG9Z 9H307-J - FORD
PFS1003, PFS-1003 - MOTORCRAFT
DG9Z9H307AB, DG9Z-9H307AB, DG9Z 9H307-AB - FORD
FG2453 - DELPHI
E2609M - AIRTEX
PFS1129 - MOTORCRAFT
DG9Z9H307V, DG9Z 9H307-V - FORD
DFG2453 - AUTOZONE
E2653M - AIRTEX
FP5Z9H307B, FP5Z 9H307-B - FORD
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Ford
Lincoln
| 2014 - 2016 | Ford | Fusion |
| 2015 - 2015 | Ford | Fusion |
| 2015 - 2016 | Ford | Fusion |
| 2013 - 2014 | Lincoln | MKZ |
| 2013 - 2014 | Lincoln | MKZ |
| 2013 - 2014 | Lincoln | MKZ |
