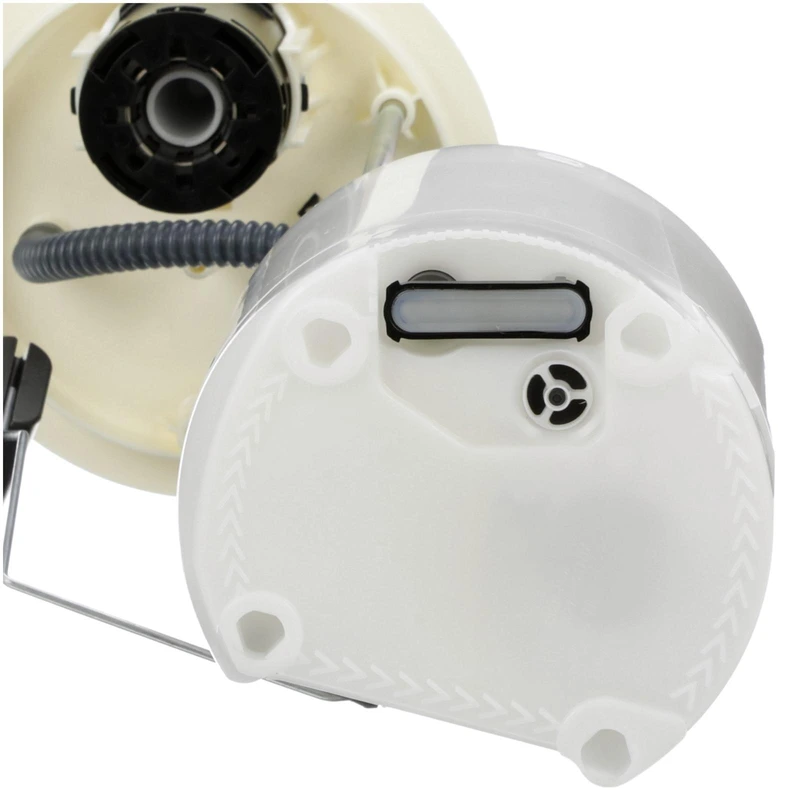

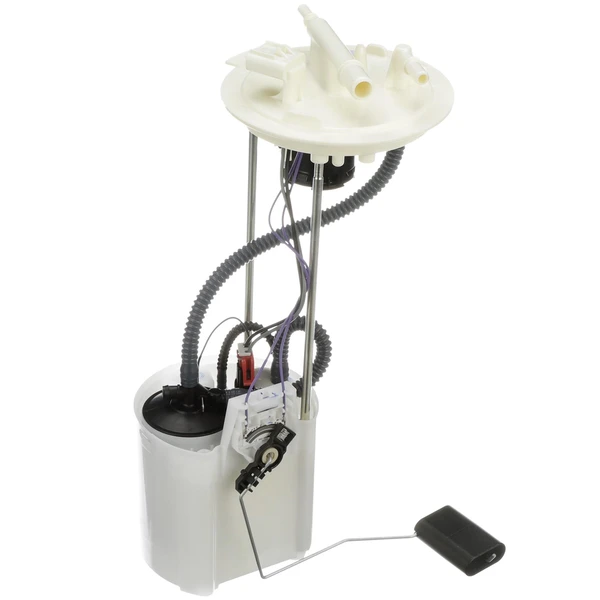

Fuel Pump Module Assembly - Delphi FG2326
Part # FG2326
Item # 1001X3A0
$282.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 49
- Fuel Type
- Gas
- Gasket Or Seal Included
- No
- Grade Type
- Premium
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 75
- Minimum Pressure (PSI)
- 58
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Pressure Sensor included
- No
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 180
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Validated Vehicle Fit: Delphi's validation and testing protocols guarantee that their parts will fit the correct vehicle application.
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Validated Vehicle Fit: Delphi's validation and testing protocols guarantee that their parts will fit the correct vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
PFS1225, PFS-1225 - MOTORCRAFT, FORD
DFG2326 - AUTOZONE
FG2326, FG-2326 - DELPHI
JL3Z9H307C, JL3Z 9H307-C - FORD
JL3Z9H307G, JL3Z 9H307-G - FORD
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (10)vehicles
All
Ford
| 2018 - 2018 | Ford | F-150 |
| 2018 - 2018 | Ford | F-150 |
| 2018 - 2020 | Ford | F-150 |
| 2018 - 2020 | Ford | F-150 |
| 2018 - 2020 | Ford | F-150 |
| 2018 - 2020 | Ford | F-150 |
| 2018 - 2020 | Ford | F-150 |
| 2018 - 2020 | Ford | F-150 |
| 2019 - 2020 | Ford | F-150 |
| 2019 - 2020 | Ford | F-150 |
