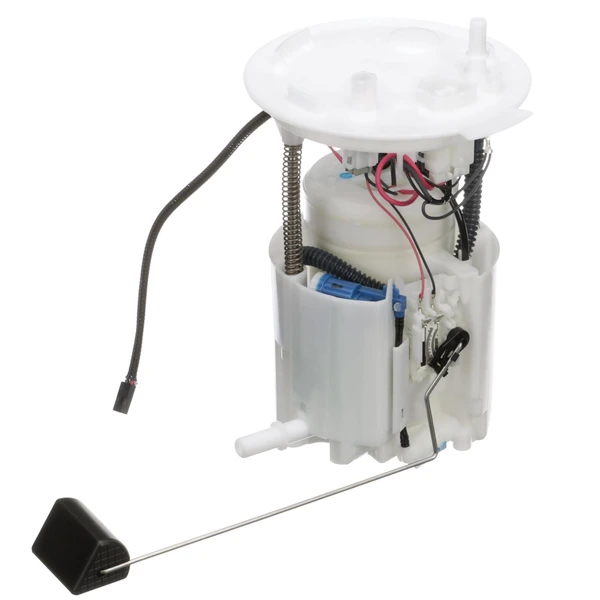

Fuel Pump Module Assembly - Delphi FG2313
Part # FG2313
Item # 1001X4ZE
$211.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 18
- Average Flow Rating (gph)
- 23
- Connector Gender
- Female
- Connector Quantity
- 2
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 94
- Minimum Pressure (PSI)
- 65
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 180
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Committed to exceptional service, A-Premium ensures that every Delphi fuel pump comes with free shipping and a 3-year warranty.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Committed to exceptional service, A-Premium ensures that every Delphi fuel pump comes with free shipping and a 3-year warranty.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
DFG2313 - AUTOZONE
FG2313, FG-2313, FG 2313 - DELPHI
PFS1103, PFS-1103 - MOTORCRAFT
HG9Z9H307A, HG9Z 9H307-A - FORD
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (14)vehicles
All
Ford
Lincoln
| 2017 - 2017 | Ford | Fusion |
| 2017 - 2018 | Ford | Fusion |
| 2017 - 2020 | Ford | Fusion |
| 2017 - 2020 | Ford | Fusion |
| 2019 - 2019 | Ford | Fusion |
| 2017 - 2018 | Lincoln | MKZ |
| 2017 - 2018 | Lincoln | MKZ |
| 2017 - 2019 | Lincoln | MKZ |
| 2017 - 2019 | Lincoln | MKZ |
| 2019 - 2019 | Lincoln | MKZ |
| 2019 - 2019 | Lincoln | MKZ |
| 2019 - 2019 | Lincoln | MKZ |
| 2020 - 2020 | Lincoln | MKZ |
| 2020 - 2020 | Lincoln | MKZ |
