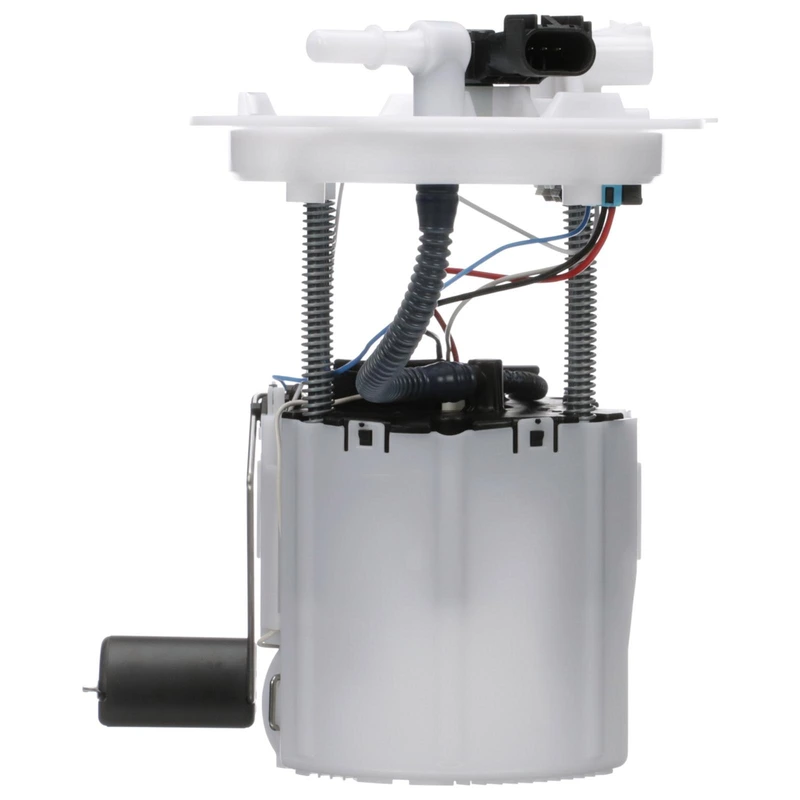

Fuel Pump Module Assembly - Delphi FG2305
Part # FG2305
Item # 1001X1HZ
$357.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 13
- Average Flow Rating (gph)
- 21
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 85
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents

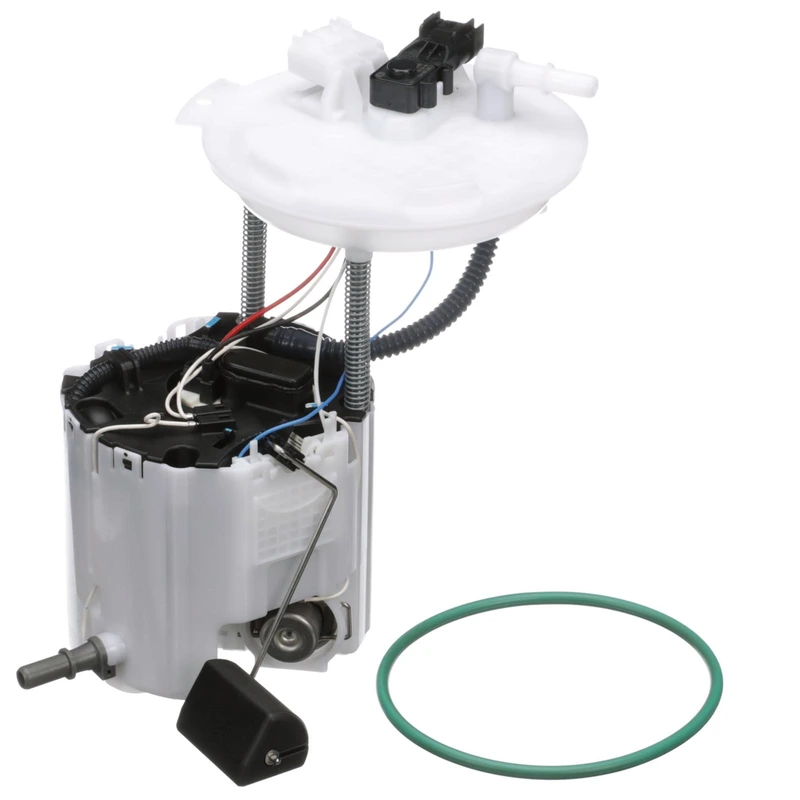

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 250
- Resistance Ohms Full (Ohms)
- 40
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Committed to exceptional service, A-Premium ensures that every Delphi fuel pump comes with free shipping and a 3-year warranty.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Replacement Tips: Check and clean the fuel tank to prevent unnecessary returns after installation.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps give new car owners peace of mind, knowing they can find the right part at a great price.
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Committed to exceptional service, A-Premium ensures that every Delphi fuel pump comes with free shipping and a 3-year warranty.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Replacement Tips: Check and clean the fuel tank to prevent unnecessary returns after installation.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps give new car owners peace of mind, knowing they can find the right part at a great price.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
FG2305 - DELPHI
M100214 - ACDELCO
13512606 - GENERAL MOTORS
13507247 - GENERAL MOTORS
CFG2305 - AUTOZONE
MU2273 - ACDELCO
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Buick
| 2016 - 2020 | Buick | Envision |
