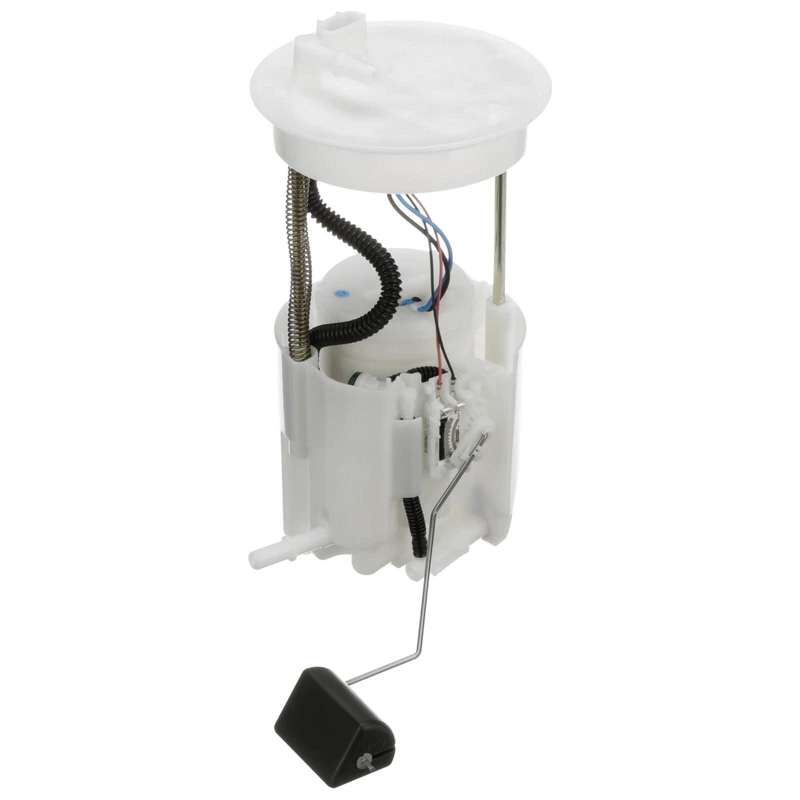

Fuel Pump Module Assembly - Delphi FG2252
Part # FG2252
Item # 1001WLUV
$369.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 8
- Average Flow Rating (gph)
- 26

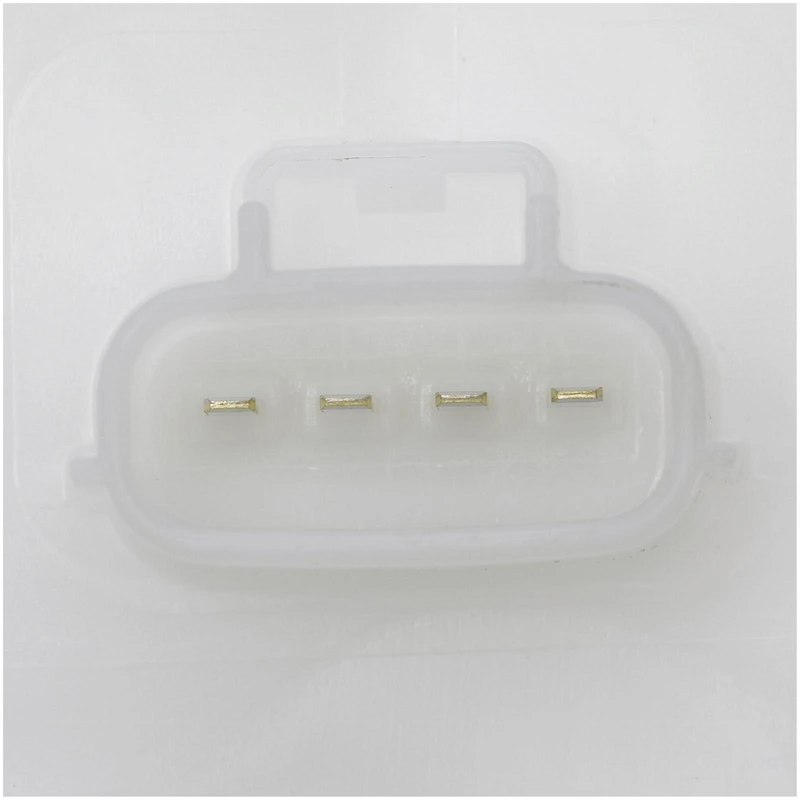

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 65
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 200
- Resistance Ohms Full (Ohms)
- 20
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Committed to exceptional service, A-Premium ensures that every Delphi fuel pump comes with free shipping and a 3-year warranty.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to precisely match the OE specifications for empty float height and float retention, ensuring your fuel gauge functions accurately.
● Validated Vehicle Fit: Delphi's parts are thoroughly validated and matched to the correct vehicle application for optimal fit.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Committed to exceptional service, A-Premium ensures that every Delphi fuel pump comes with free shipping and a 3-year warranty.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to precisely match the OE specifications for empty float height and float retention, ensuring your fuel gauge functions accurately.
● Validated Vehicle Fit: Delphi's parts are thoroughly validated and matched to the correct vehicle application for optimal fit.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A46770 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
CFG2252 - AUTOZONE
SP4192M - SPECTRA PREMIUM
PELL1335Z, PELL-13-35Z - MAZDA
PELL1335ZA, PELL-13-35ZA - MAZDA
FG2252 - DELPHI
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Mazda
| 2016 - 2021 | Mazda | CX-3 |
