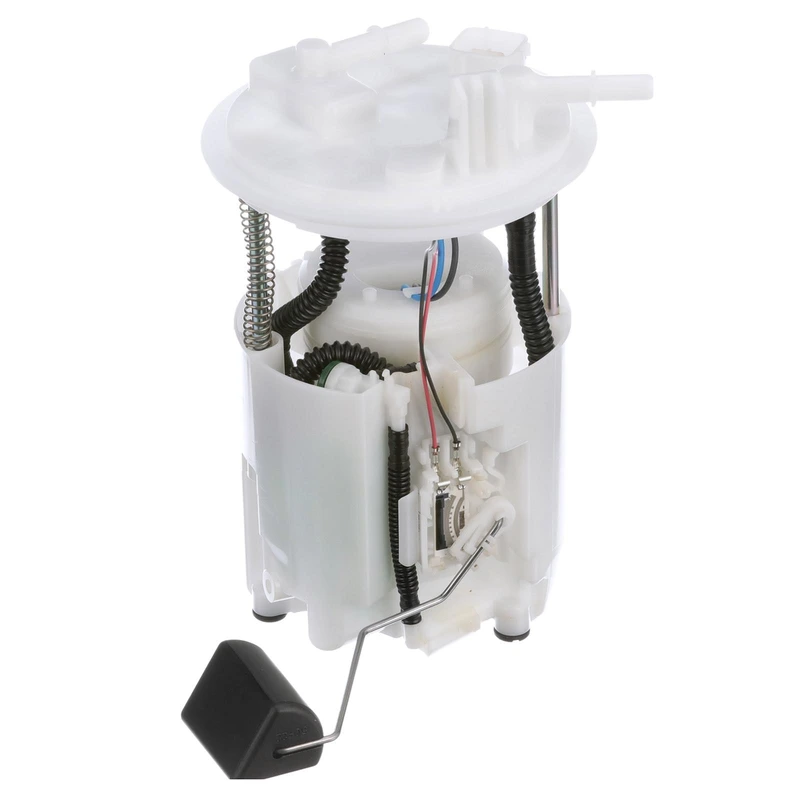

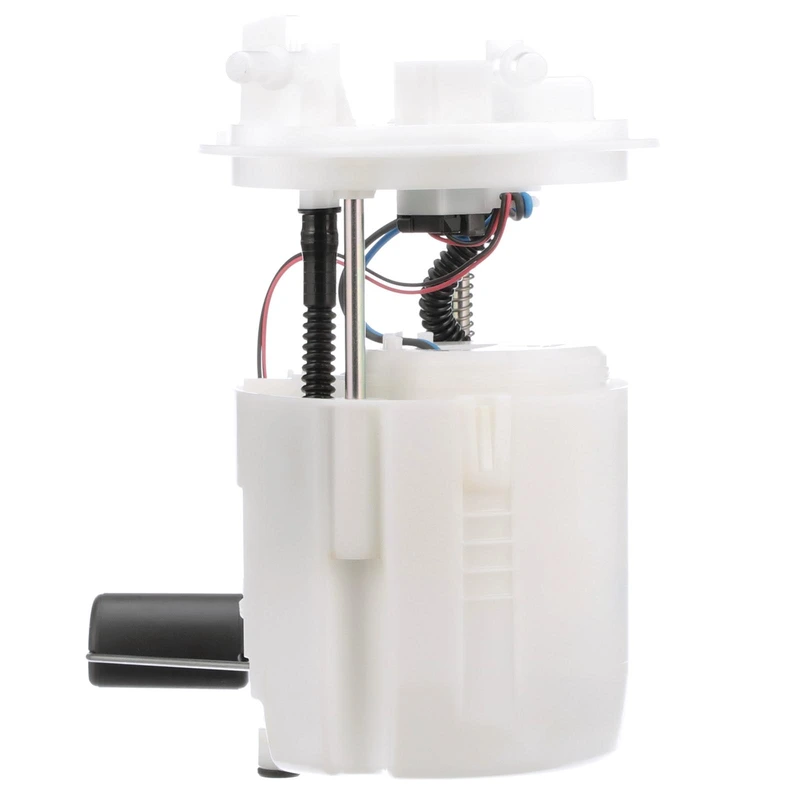

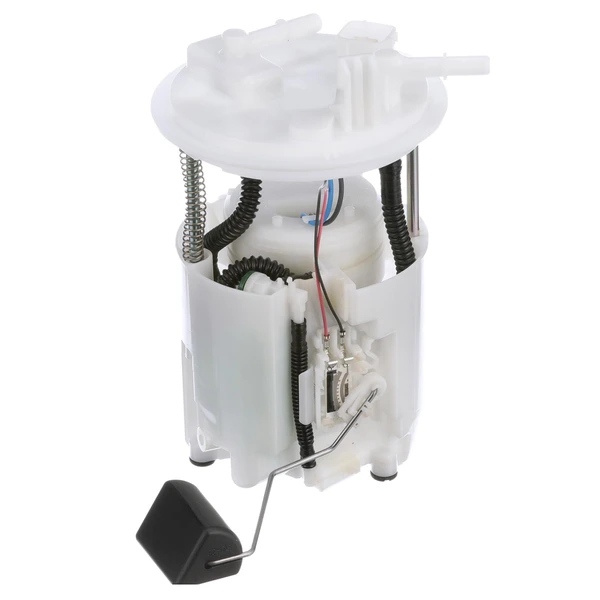

Fuel Pump Module Assembly - Delphi FG2200
Part # FG2200
Item # 1001WPKW
$654.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 23
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Square
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 54
- Minimum Pressure (PSI)
- 44
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 138
- Resistance Ohms Full (Ohms)
- 8
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty with every Delphi fuel pump purchase.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Validated Vehicle Fit: Delphi's parts are validated and tested to ensure a perfect match for the intended vehicle application.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to precisely match the OE specifications for empty float height and float retention, ensuring your fuel gauge functions accurately.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty with every Delphi fuel pump purchase.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Validated Vehicle Fit: Delphi's parts are validated and tested to ensure a perfect match for the intended vehicle application.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to precisely match the OE specifications for empty float height and float retention, ensuring your fuel gauge functions accurately.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
42021SG020, 42021 SG020 - SUBARU
42021VA020, 42021 VA020 - SUBARU
42021SG010, 42021 SG010 - SUBARU
42021VA010, 42021 VA010 - SUBARU
42021SG000, 42021 SG000 - SUBARU
42021SG080, 42021 SG080 - SUBARU
SP4158M - SPECTRA PREMIUM
42021SG070, 42021 SG070 - SUBARU
42021SG060, 42021 SG060 - SUBARU
P77107M - CARTER
CFG2200 - AUTOZONE
FG2200 - DELPHI
42022AJ140, 42022 AJ140 - SUBARU
42022SG000, 42022 SG000 - SUBARU
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (14)vehicles
All
Subaru
| 2014 - 2014 | Subaru | Forester |
| 2014 - 2014 | Subaru | XV Crosstrek |
| 2014 - 2014 | Subaru | XV Crosstrek |
| 2015 - 2015 | Subaru | Impreza |
| 2015 - 2015 | Subaru | XV Crosstrek |
| 2015 - 2016 | Subaru | Impreza |
| 2015 - 2016 | Subaru | Impreza |
| 2015 - 2016 | Subaru | Impreza |
| 2015 - 2016 | Subaru | Impreza |
| 2015 - 2016 | Subaru | Impreza |
| 2015 - 2016 | Subaru | Impreza |
| 2015 - 2016 | Subaru | WRX |
| 2015 - 2018 | Subaru | Forester |
| 2017 - 2021 | Subaru | WRX |
