Fuel Pump Module Assembly - Delphi FG2103
Part # FG2103
Item # 1001WHXS
$372.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 9
- Average Flow Rating (gph)
- 34

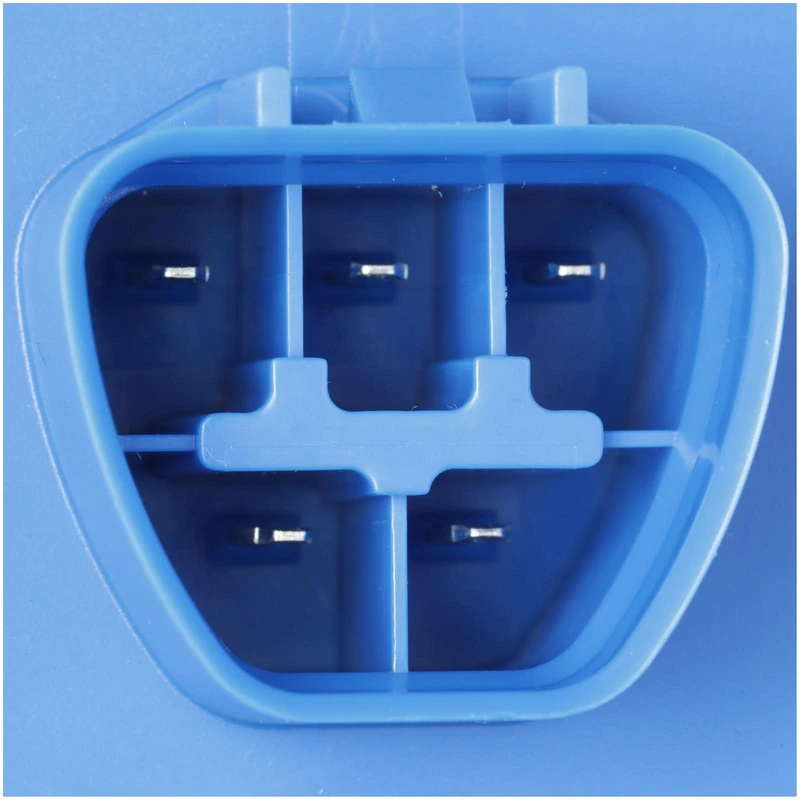

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- Yes
- Maximum Pressure (PSI)
- 101
- Minimum Pressure (PSI)
- 38
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents

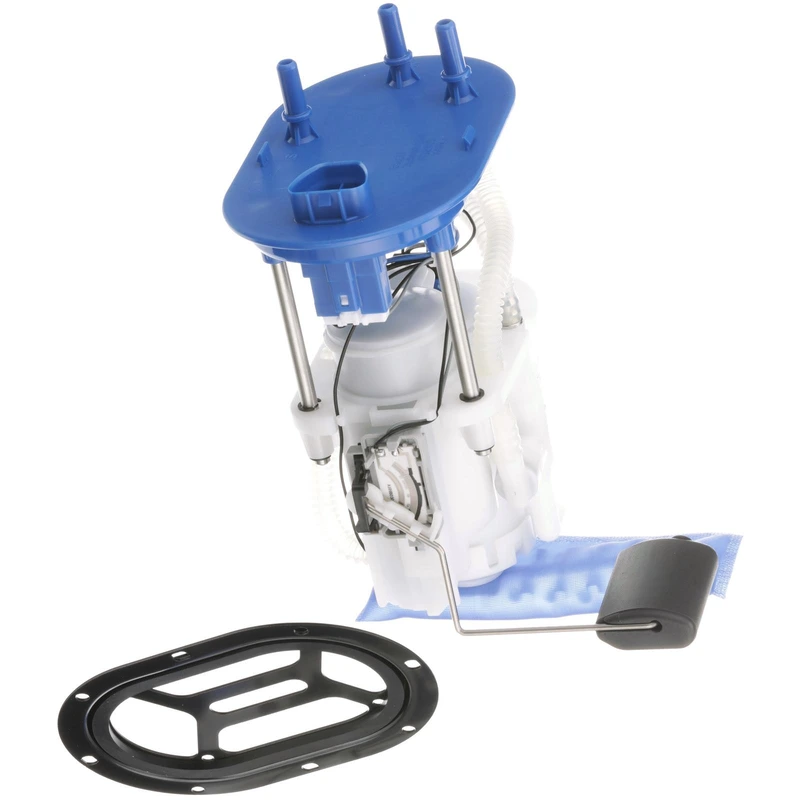

- Fuel Pump Module Assembly with Float Arm, Seal, Lock Ring, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 123
- Resistance Ohms Full (Ohms)
- 4
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Experience the benefits of free shipping and an exclusive warranty of up to 3 years when you select a Delphi fuel pump.
● Large Volume Reservoir: Committed to exceptional service, A-Premium ensures that every Delphi fuel pump comes with free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps are designed to closely replicate the OE requirements for empty float height and float retention, providing you with reliable fuel gauge readings.
● Optimized Fuel Delivery: Delphi's fuel pumps restore rapid pressure performance, preserve system integrity, and enhance pumping efficiency with reduced energy consumption and electrical system impact.
● Replacement Tips: Always examine the fuel filter when replacing the fuel pump.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Experience the benefits of free shipping and an exclusive warranty of up to 3 years when you select a Delphi fuel pump.
● Large Volume Reservoir: Committed to exceptional service, A-Premium ensures that every Delphi fuel pump comes with free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps are designed to closely replicate the OE requirements for empty float height and float retention, providing you with reliable fuel gauge readings.
● Optimized Fuel Delivery: Delphi's fuel pumps restore rapid pressure performance, preserve system integrity, and enhance pumping efficiency with reduced energy consumption and electrical system impact.
● Replacement Tips: Always examine the fuel filter when replacing the fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
9510008, 951-0008 - DENSO AUTO PARTS
FG2103 - DELPHI
67919 - BOSCH
CFG2103 - AUTOZONE
3111226050, 31112-26050 - HYUNDAI
E16014, E160.14 - IMPORT DIRECT
3111026510DS - HYUNDAI
3111026510, 31110-26510 - HYUNDAI
3111226055, 31112-26055 - HYUNDAI
SP3012M - SPECTRA PREMIUM
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Hyundai
| 2003 - 2003 | Hyundai | Santa Fe |
