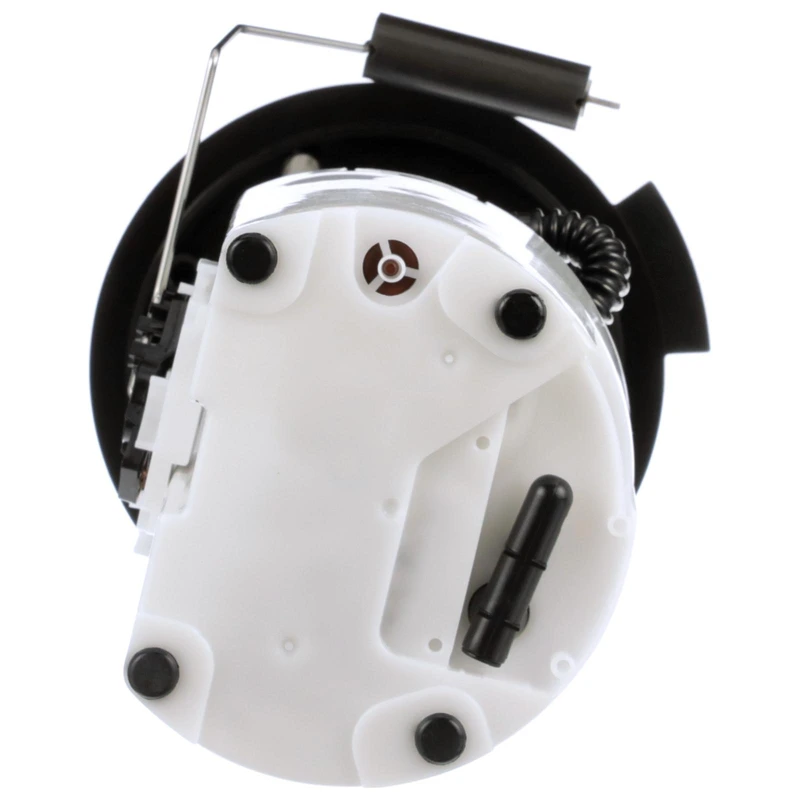

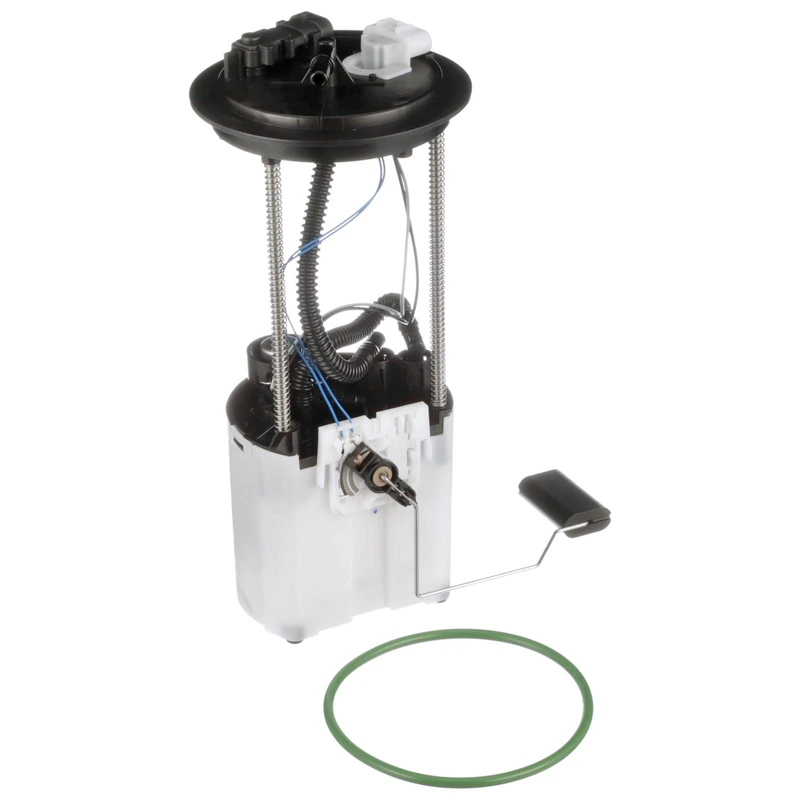

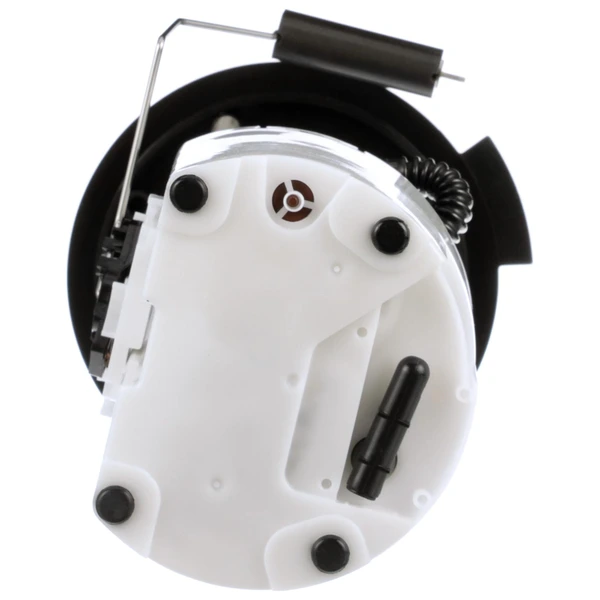

Fuel Pump Module Assembly - Delphi FG2098
Part # FG2098
Item # 1001WHRN
$335.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 33
- Connector Gender
- FEMALE
- Connector Quantity
- 1
- Connector Shape
- OVAL
- Fuel Filter Included
- YES
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 61
- Minimum Pressure (PSI)
- 55
- Mounting Hardware Included
- NO
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- TURBINE
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 250
- Resistance Ohms Full (Ohms)
- 40
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- NO
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Experience the benefits of free shipping and an exclusive warranty of up to 3 years when you select a Delphi fuel pump.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Gauge Accuracy: Delphi's fuel pumps are engineered to precisely replicate the OE specifications for empty float height and float retention, providing reliable fuel gauge accuracy.
● Comprehensive Late-Model Coverage: Delphi fuel pumps offer extensive coverage for late-model applications.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Experience the benefits of free shipping and an exclusive warranty of up to 3 years when you select a Delphi fuel pump.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Gauge Accuracy: Delphi's fuel pumps are engineered to precisely replicate the OE specifications for empty float height and float retention, providing reliable fuel gauge accuracy.
● Comprehensive Late-Model Coverage: Delphi fuel pumps offer extensive coverage for late-model applications.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3844M - CARQUEST, AIRTEX
M100140 - ACDELCO
19179795 - GENERAL MOTORS
23120358 - GENERAL MOTORS
19179796 - GENERAL MOTORS
DFG2098 - AUTOZONE
MU2172 - ACDELCO
SP6643M - SPECTRA PREMIUM
M10165 - ACDELCO
19301262 - GENERAL MOTORS
FG2098 - DELPHI
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Buick
Cadillac
| 2008 - 2008 | Buick | Lucerne |
| 2008 - 2008 | Cadillac | DTS |
