Delphi

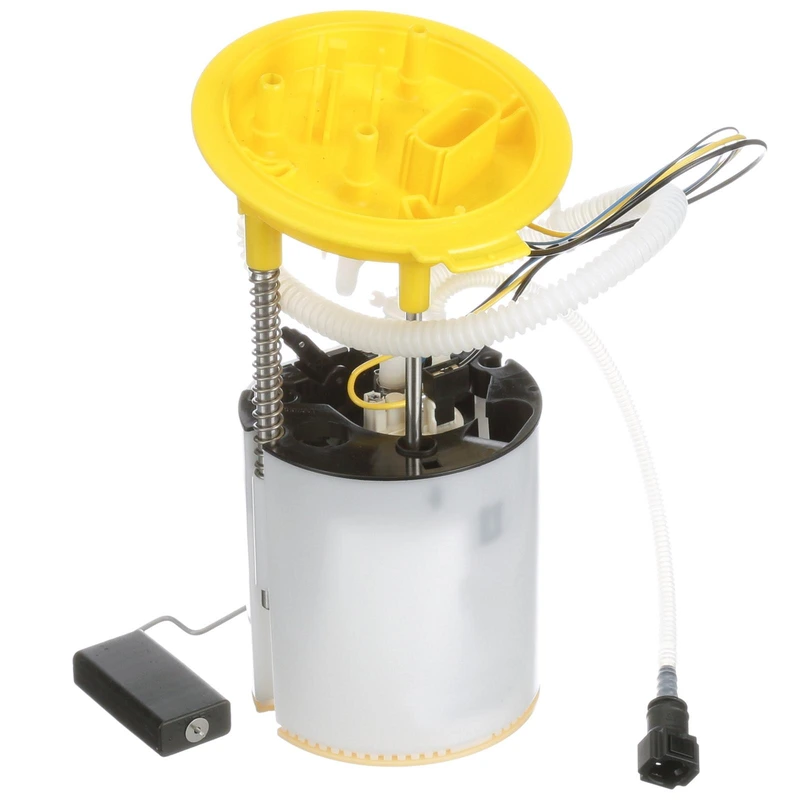

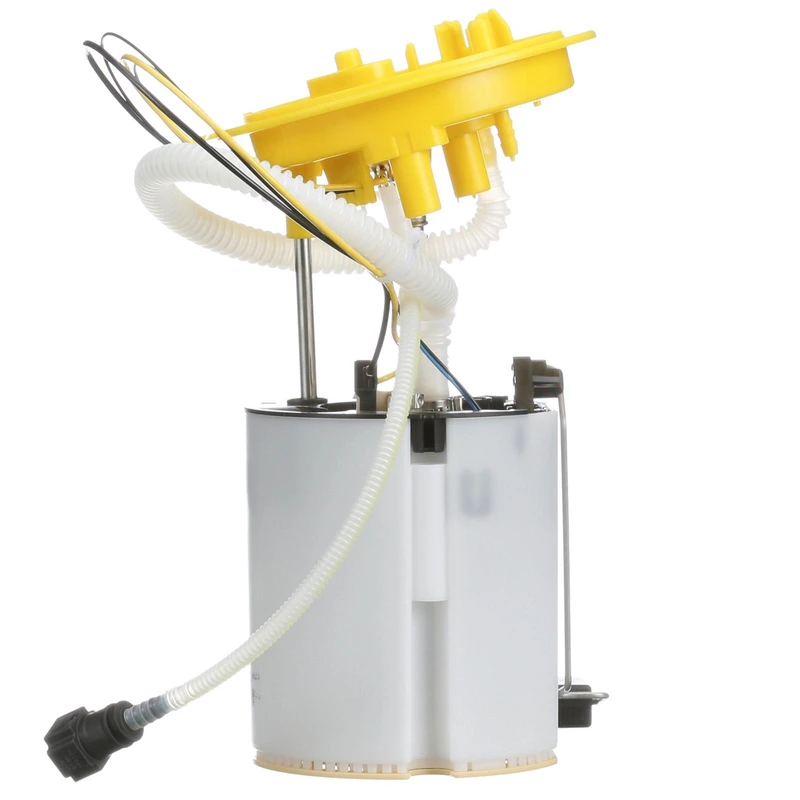

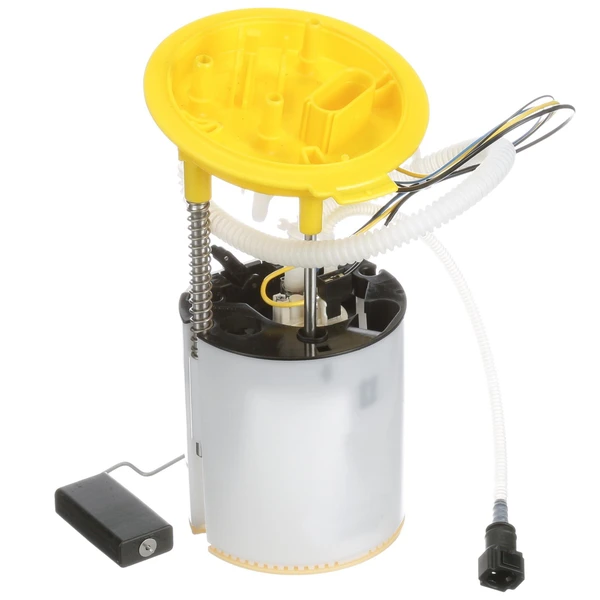

Fuel Pump Module Assembly - Delphi FG2086

Part # FG2086
Item # 1001WH9R
$917.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Sending Unit Included
YES
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
YES
Average Current Draw (A)
10
Average Flow Rating (gph)
24
Connector Gender
FEMALE
Connector Quantity
1
Connector Shape
OVAL
Fuel Filter Included
NO
Fuel Type
Gas
Gasket Or Seal Included
No
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
58
Minimum Pressure (PSI)
36
Mounting Hardware Included
NO
Outlet Outside Diameter (in)
0.375
Outlet Quantity
2
Outlet Type
Quick Connect
Pressure Sensor included
NO
Pump Design
TURBINE
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty (Ohms)
300
Resistance Ohms Full (Ohms)
46
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
NO
Show all

Features

About this item
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Gauge Accuracy: Delphi's fuel pumps are engineered to precisely replicate the OE specifications for empty float height and float retention, providing reliable fuel gauge accuracy.
● Replacement Tips: Always check the condition of the fuel filter during pump replacements.
● Validated Vehicle Fit: Delphi's parts are thoroughly validated and matched to the correct vehicle application for optimal fit.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
8E0 919 051 AQ
CFG2086
8E0 919 051 BQ
FG2086

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Audi
2005 - 2006AudiS4
2007 - 2007AudiS4
2007 - 2007AudiS4
2008 - 2008AudiS4
2008 - 2008AudiS4
