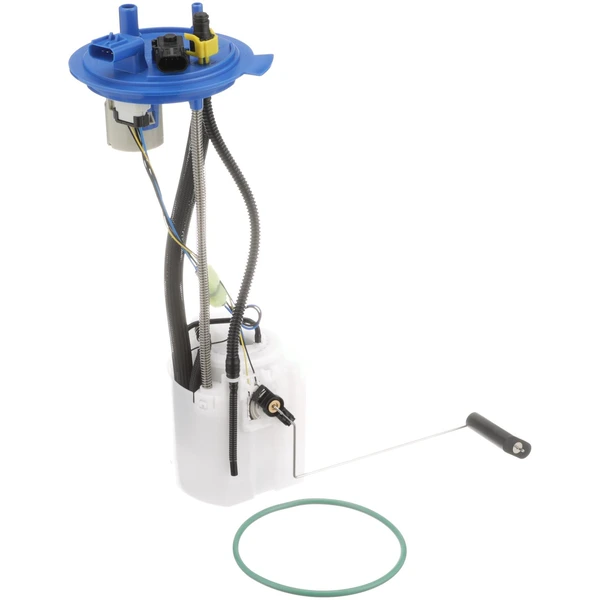

Fuel Pump Module Assembly - Delphi FG1983
Part # FG1983
Item # 1001WHW9
$554.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- YES
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- YES
- Average Current Draw (A)
- 13
- Average Flow Rating (gph)
- 39
- Connector Gender
- FEMALE
- Connector Quantity
- 1
- Connector Shape
- RECTANGLE
- Fuel Filter Included
- YES
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 64
- Minimum Pressure (PSI)
- 55
- Mounting Hardware Included
- NO
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- YES
- Pump Design
- TURBINE
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 180
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- NO
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Experience the benefits of free shipping and an exclusive warranty of up to 3 years when you select a Delphi fuel pump.
● Comprehensive accessories: Delphi's fuel pump package features a carefully curated selection of premium accessories, including the fuel sending unit, filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to precisely match the OE specifications for empty float height and float retention, ensuring your fuel gauge functions reliably.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Validated Vehicle Fit: Delphi's extensive validation and testing processes ensure their parts are a perfect match for the target vehicle.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Experience the benefits of free shipping and an exclusive warranty of up to 3 years when you select a Delphi fuel pump.
● Comprehensive accessories: Delphi's fuel pump package features a carefully curated selection of premium accessories, including the fuel sending unit, filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to precisely match the OE specifications for empty float height and float retention, ensuring your fuel gauge functions reliably.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Validated Vehicle Fit: Delphi's extensive validation and testing processes ensure their parts are a perfect match for the target vehicle.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2586M - CARQUEST, AIRTEX
P76581M - CARTER
DFG1983 - AUTOZONE
SP2483M - SPECTRA PREMIUM
PFS972, PFS-972 - MOTORCRAFT
FG1983 - DELPHI
A43028 - PRECISION FUEL
AC2Z9H307A, AC2Z-9H307A, AC2Z 9H307-A - FORD
AC2Z9H307C, AC2Z-9H307C, AC2Z 9H307-C - FORD
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (9)vehicles
All
Ford
| 2010 - 2011 | Ford | E-450 Super Duty |
| 2010 - 2011 | Ford | E-450 Super Duty |
| 2010 - 2014 | Ford | E-350 Super Duty |
| 2011 - 2014 | Ford | E-350 Super Duty |
| 2012 - 2014 | Ford | E-450 Super Duty |
| 2015 - 2016 | Ford | E-350 Super Duty |
| 2015 - 2016 | Ford | E-450 Super Duty |
| 2015 - 2019 | Ford | E-350 Super Duty |
| 2015 - 2019 | Ford | E-450 Super Duty |
