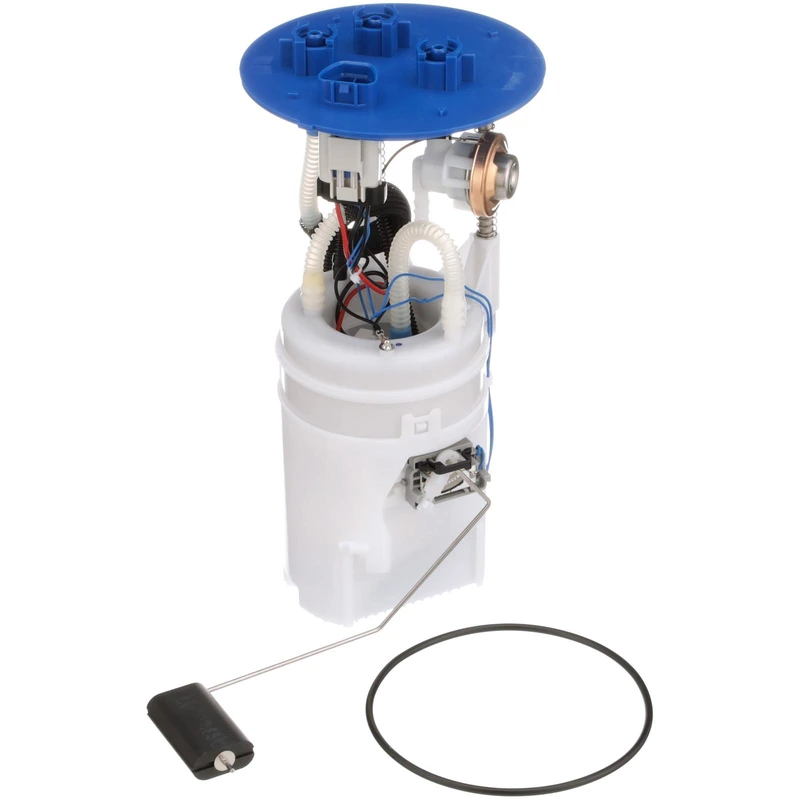

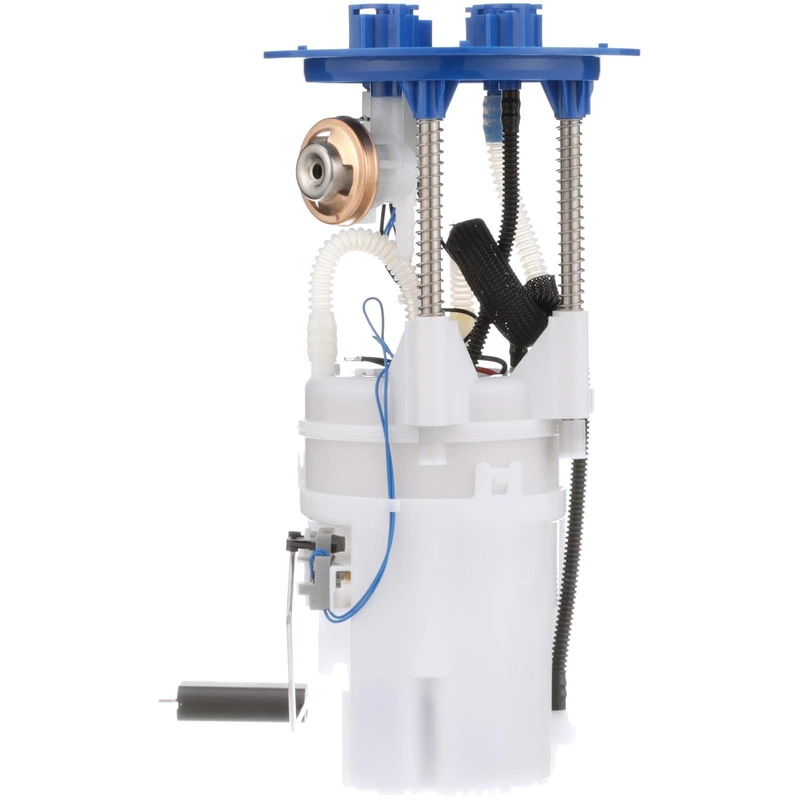

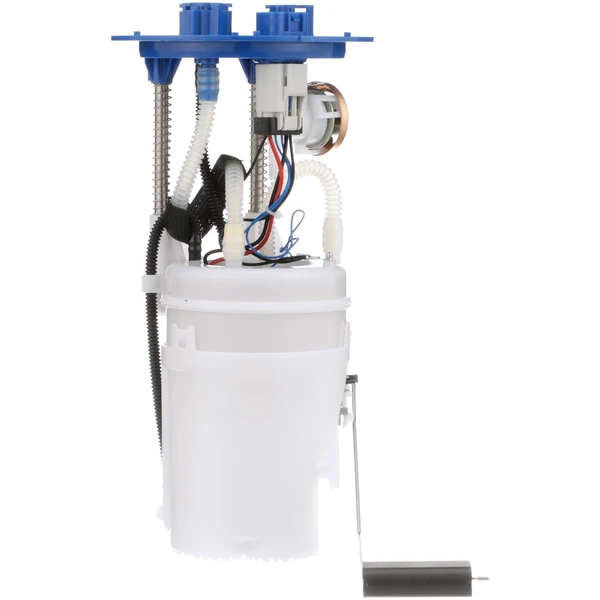

Fuel Pump Module Assembly - Delphi FG1980
Part # FG1980
Item # 1001WGLA
$570.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- YES
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- YES
- Average Current Draw (A)
- 15
- Average Flow Rating (gph)
- 46
- Connector Gender
- FEMALE
- Connector Quantity
- 1
- Connector Shape
- TRAPEZOID
- Fuel Filter Included
- YES
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 52
- Minimum Pressure (PSI)
- 44
- Mounting Hardware Included
- NO
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 3
- Outlet Type
- Push In
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- TURBINE
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 410
- Resistance Ohms Full (Ohms)
- 15
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- NO
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds meticulous OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● OE-design Connector: With an OE-design connector and body harness, Delphi fuel pumps deliver outstanding performance.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully aligned to OE standards, guaranteeing precise and accurate fuel gauge readings.
● Comprehensive Late-Model Coverage: With wide coverage, Delphi fuel pumps are ideal for late-model vehicle needs.
● Replacement Tips: Always verify the fuel filter condition when installing a new fuel pump.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds meticulous OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● OE-design Connector: With an OE-design connector and body harness, Delphi fuel pumps deliver outstanding performance.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully aligned to OE standards, guaranteeing precise and accurate fuel gauge readings.
● Comprehensive Late-Model Coverage: With wide coverage, Delphi fuel pumps are ideal for late-model vehicle needs.
● Replacement Tips: Always verify the fuel filter condition when installing a new fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30432 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
770200C090, 77020-0C090 - TOYOTA
E8789 - AIRTEX
FG1980 - DELPHI
E8942M - AIRTEX
SP9011M - SPECTRA PREMIUM
P76839M - CARTER
DFG1980 - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Toyota
| 2009 - 2009 | Toyota | Sequoia |
| 2009 - 2011 | Toyota | Tundra |
| 2010 - 2011 | Toyota | Sequoia |
| 2010 - 2011 | Toyota | Sequoia |
| 2010 - 2011 | Toyota | Sequoia |
