Delphi

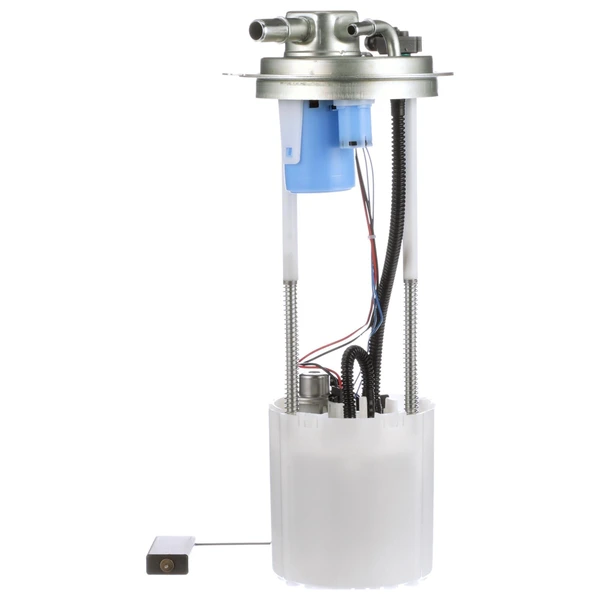

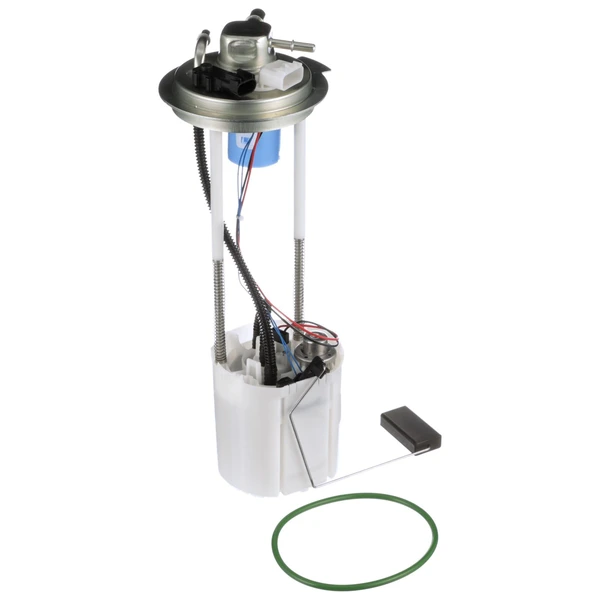

Fuel Pump Module Assembly - Delphi FG1832

Part # FG1832
Item # 1001VR3K
$368.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
14
Average Flow Rating (gph)
40
Connector Gender
Female
Connector Quantity
1
Connector Shape
Oval
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
90
Minimum Pressure (PSI)
72
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
3
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
Pressure Sensor included
Yes
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
250
Resistance Ohms Full (Ohms)
40
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all
About this item
Delphi - A Century of OE Expertise
As a leading global OE manufacturer with over 100 years of experience, Delphi crafts all its fuel pumps to the same exacting OE standards. Each Delphi aftermarket unit incorporates the latest OE technology advancements, making them a trusted choice among the world's top automakers. Delphi OE replacement fuel pumps deliver exceptional pumping capability, generate excellent pressure, and consume less electrical power.
!● Free Shipping & Extended Warranty - Enjoy complimentary shipping and up to 3 years of warranty coverage, unlike competitors with high shipping fees.
!● Precise Fuel Gauge Performance - Delphi fuel pumps are precisely engineered to match OE specifications for empty float height and float retention, ensuring reliable fuel gauge readings.
!● Guaranteed Vehicle Compatibility - Rigorous validation and testing guarantee Delphi parts will perfectly fit the designated vehicle application. Their innovative design and superior durability contribute to low failure rates.
!● Premium Accessories Included - Our Delphi fuel pump comes fully equipped with a comprehensive suite of top-tier supporting components, such as the fuel sending unit, filter, and regulator.
!● Optimized Fuel Delivery System - Delphi fuel pumps restore rapid pressure performance and system integrity, providing better pumping with less energy and minimal impact on the vehicle's electrical system.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
13513407 - GENERAL MOTORS, GMC, CHEVROLET
A33220 - PRECISION FUEL PUMPS, PRECISION FUEL
M100264 - ACDELCO
FG1832 - DELPHI
M100102 - ACDELCO
MU2194 - ACDELCO
P76892M - CARTER
13582491 - GENERAL MOTORS
EFG1832 - AUTOZONE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (20)vehicles
All
Chevrolet
GMC
2014 - 2014ChevroletSilverado 1500
2014 - 2014ChevroletSilverado 1500
2014 - 2014ChevroletSilverado 1500
2014 - 2014ChevroletSilverado 1500
2015 - 2015ChevroletSilverado 1500
2016 - 2016ChevroletSilverado 1500
2016 - 2016ChevroletSilverado 1500
2016 - 2016ChevroletSilverado 1500
2016 - 2016ChevroletSilverado 1500
2016 - 2016ChevroletSilverado 1500
2016 - 2017ChevroletSilverado 1500
2017 - 2017ChevroletSilverado 1500
2017 - 2017ChevroletSilverado 1500
2017 - 2017ChevroletSilverado 1500
2017 - 2017ChevroletSilverado 1500
2018 - 2018ChevroletSilverado 1500
2014 - 2017GMCSierra 1500
2017 - 2017GMCSierra 1500
2017 - 2017GMCSierra 1500
2018 - 2018GMCSierra 1500
