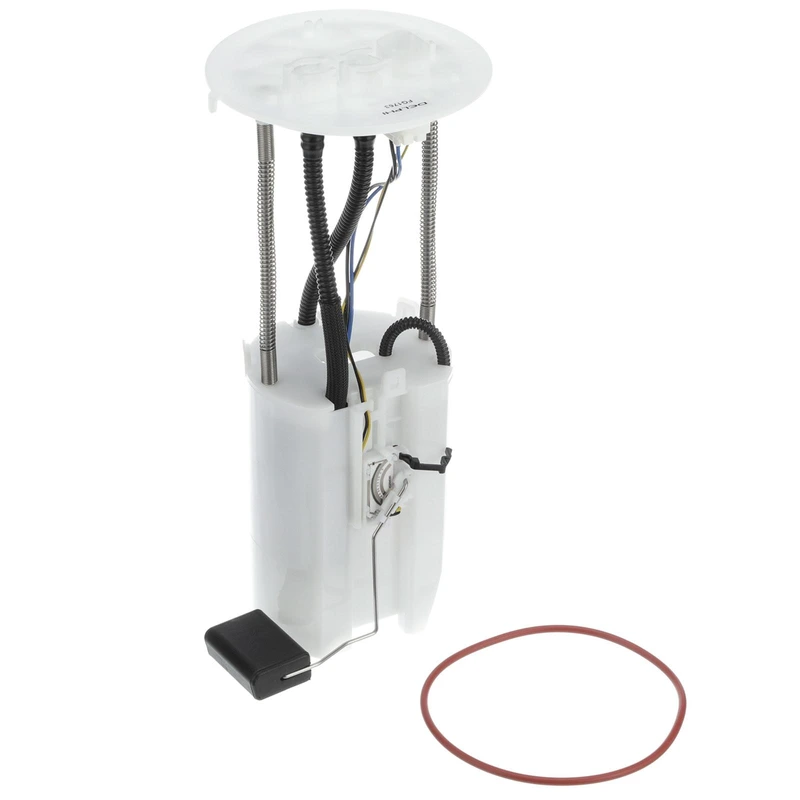

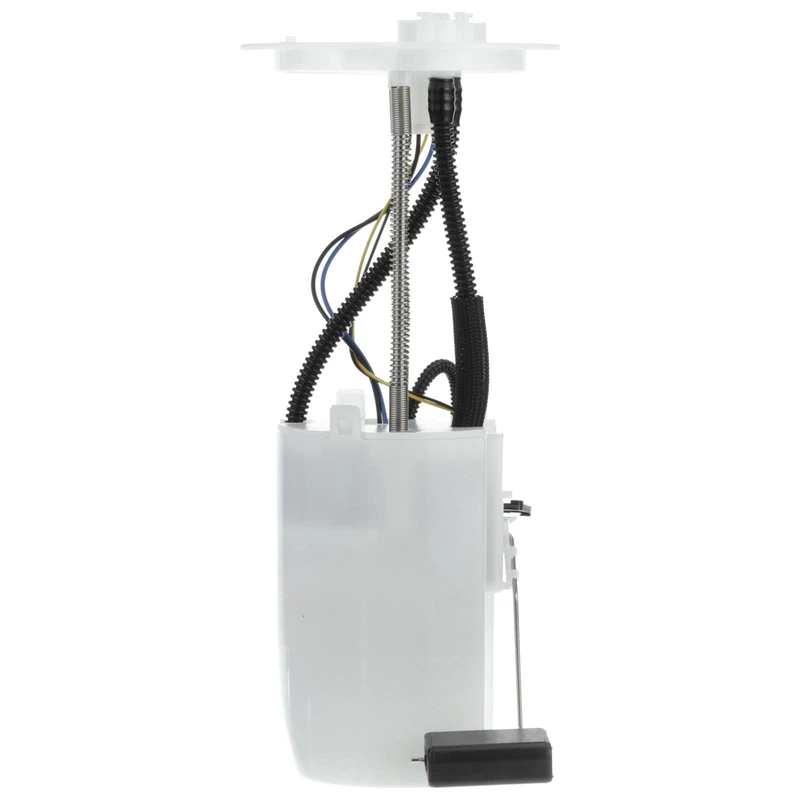

Fuel Pump Module Assembly - Delphi FG1763
Part # FG1763
Item # 1001VR4W
$864.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 57
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 80
- Minimum Pressure (PSI)
- 47
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 2
- Outlet Type
- Push In
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 408
- Resistance Ohms Full (Ohms)
- 13
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a globally renowned OEM manufacturer with over a century of professional expertise, Delphi applies the same stringent OEM standards to the production of all its fuel pumps, and integrates the latest OEM technology advancements into every aftermarket replacement pump. Delphi OEM replacement fuel pumps are guaranteed to provide outstanding pumping capability and excellent pressure performance, using less electrical power, making them a favored choice of the world's top automakers.
● Free Shipping & Exclusive Warranty: Unlike competitors who charge high shipping fees, we offer free shipping and up to 3 years of warranty for your Delphi fuel pump.
● Precise Fuel Gauge Readings: Delphi's fuel pumps are meticulously aligned with OEM specifications for empty float height and float retention, ensuring accurate fuel gauge readings.
● Validated Vehicle Fit: Delphi parts undergo comprehensive validation, testing, and matching to the correct vehicle application. Their innovative design and excellent durability also help reduce failure rates.
● Premium Accessories: Our Delphi fuel pump comes equipped with a full suite of top-tier components, including the fuel sending unit, fuel filter, and regulator.
● Optimized Fuel Delivery: Delphi fuel pumps can quickly restore pressure performance, maintain system integrity, provide enhanced pumping while reducing power consumption, and have minimal impact on the vehicle's electrical system.
As a globally renowned OEM manufacturer with over a century of professional expertise, Delphi applies the same stringent OEM standards to the production of all its fuel pumps, and integrates the latest OEM technology advancements into every aftermarket replacement pump. Delphi OEM replacement fuel pumps are guaranteed to provide outstanding pumping capability and excellent pressure performance, using less electrical power, making them a favored choice of the world's top automakers.
● Free Shipping & Exclusive Warranty: Unlike competitors who charge high shipping fees, we offer free shipping and up to 3 years of warranty for your Delphi fuel pump.
● Precise Fuel Gauge Readings: Delphi's fuel pumps are meticulously aligned with OEM specifications for empty float height and float retention, ensuring accurate fuel gauge readings.
● Validated Vehicle Fit: Delphi parts undergo comprehensive validation, testing, and matching to the correct vehicle application. Their innovative design and excellent durability also help reduce failure rates.
● Premium Accessories: Our Delphi fuel pump comes equipped with a full suite of top-tier components, including the fuel sending unit, fuel filter, and regulator.
● Optimized Fuel Delivery: Delphi fuel pumps can quickly restore pressure performance, maintain system integrity, provide enhanced pumping while reducing power consumption, and have minimal impact on the vehicle's electrical system.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
7702035151, 77020-35151 - LEXUS, TOYOTA
A46538 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
7702035150, 77020-35150 - LEXUS, TOYOTA
SP9018M - SPECTRA PREMIUM
DFG1763 - AUTOZONE
E8789 - AIRTEX
FG1763 - DELPHI
E9068M - AIRTEX
P76902 - CARTER
SP1386 - SPECTRA PREMIUM
2307031010, 23070-31010 - TOYOTA
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Lexus
Toyota
| 2012 - 2022 | Lexus | GX460 |
| 2010 - 2010 | Toyota | 4Runner |
| 2011 - 2022 | Toyota | 4Runner |
