Delphi

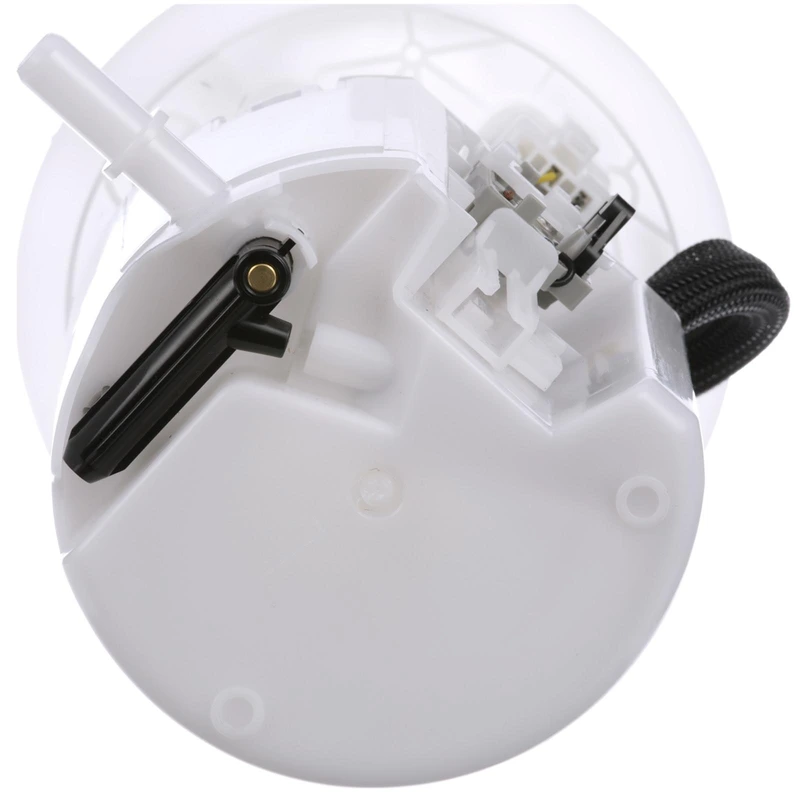

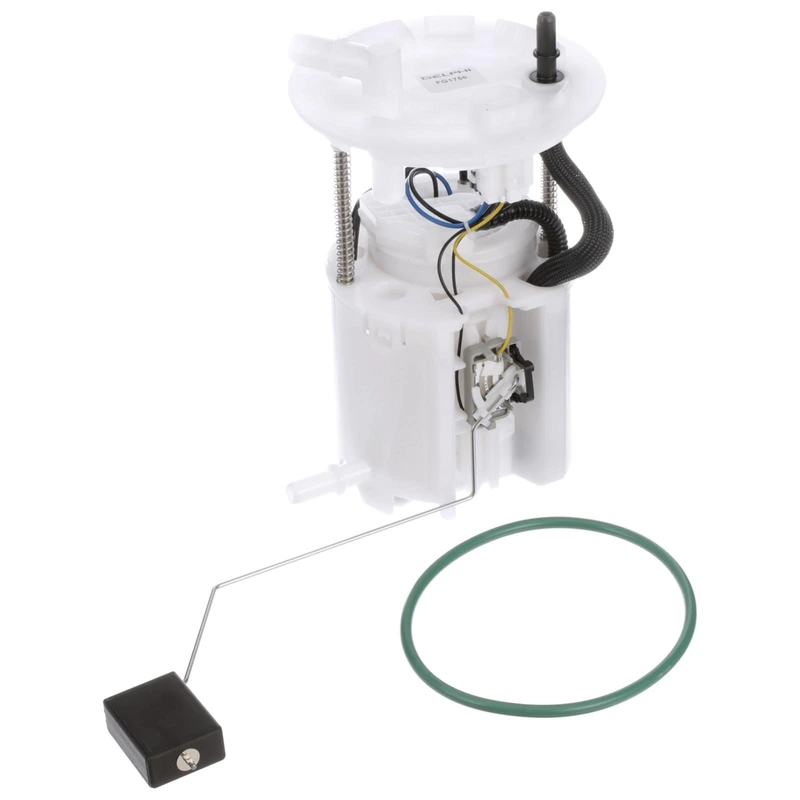

Fuel Pump Module Assembly - Right Passenger Side - Delphi FG1756

Part # FG1756
Item # 1001VNV9
$288.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Right Passenger Side
Sending Unit Included
Yes
Average Current Draw (A)
14
Average Flow Rating (gph)
34
Connector Gender
Female
Connector Quantity
1
Connector Shape
Trapezoid
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
64
Minimum Pressure (PSI)
55
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
2
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
180
Resistance Ohms Full (Ohms)
10
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all
About this item
As a globally renowned OEM manufacturer with over a century of expertise, Delphi applies the same stringent OEM standards to the production of all its fuel pumps, and integrates the latest OEM technology advancements into every aftermarket replacement pump. Delphi OEM replacement fuel pumps are guaranteed to provide outstanding pumping ability and excellent pressure performance, using less electrical power, making them a trusted choice for the world's top automakers.

● Free Shipping & Exclusive Warranty: Unlike competitors who charge high shipping fees, we offer free shipping and up to 3 years of warranty for your Delphi fuel pump.
● Precision Fuel Gauge: Delphi's fuel pumps are meticulously aligned with OEM specifications for empty float height and float retention, ensuring accurate fuel gauge readings.
● Validated Fit: Delphi parts undergo comprehensive validation, testing, and matching to the correct vehicle application. Their innovative design and excellent durability also help reduce failure rates.
● Premium Accessories: Our Delphi fuel pump comes equipped with a full suite of top-tier components, including the fuel sending unit, fuel filter, and regulator.
● Optimized Performance: Delphi fuel pumps can quickly restore pressure performance, maintain system integrity, provide enhanced pumping while reducing power consumption, and have minimal impact on the vehicle's electrical system.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2605M - CARQUEST, AIRTEX
P77048M - CARTER
DFG1756 - AUTOZONE
SP2509M - SPECTRA PREMIUM
DA8Z9H307J, DA8Z 9H30-7J, DA8Z 9H307-J, DA8Z-9H307J - FORD
FG1756 - DELPHI
A47003 - PRECISION FUEL
PFS1027, PFS-1027 - MOTORCRAFT

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Ford
Lincoln
2013 - 2013FordFlex
2014 - 2014FordExplorer
2014 - 2014FordFlex
2014 - 2014FordPolice Interceptor Utility
2015 - 2015FordExplorer
2015 - 2015FordPolice Interceptor Utility
2013 - 2013LincolnMKT
2014 - 2014LincolnMKT
