Delphi

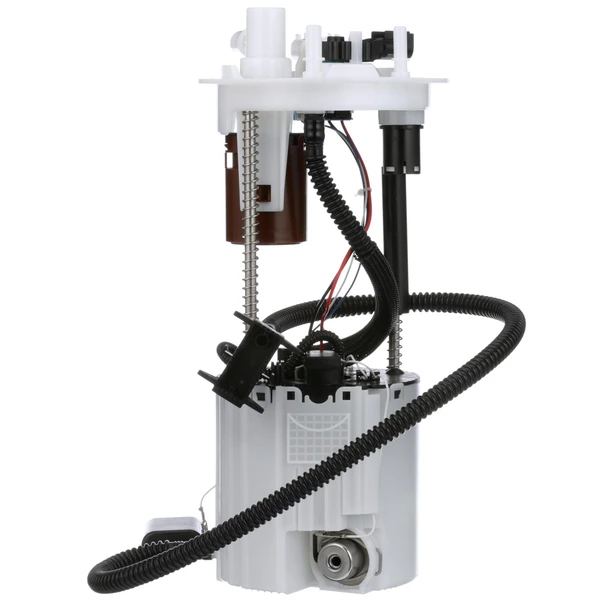

Fuel Pump Module Assembly - Left Driver Side - Delphi FG1740

Part # FG1740
Item # 1001VP90
$298.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Left Driver Side
Sending Unit Included
Yes
Average Current Draw (A)
7
Average Flow Rating (gph)
26

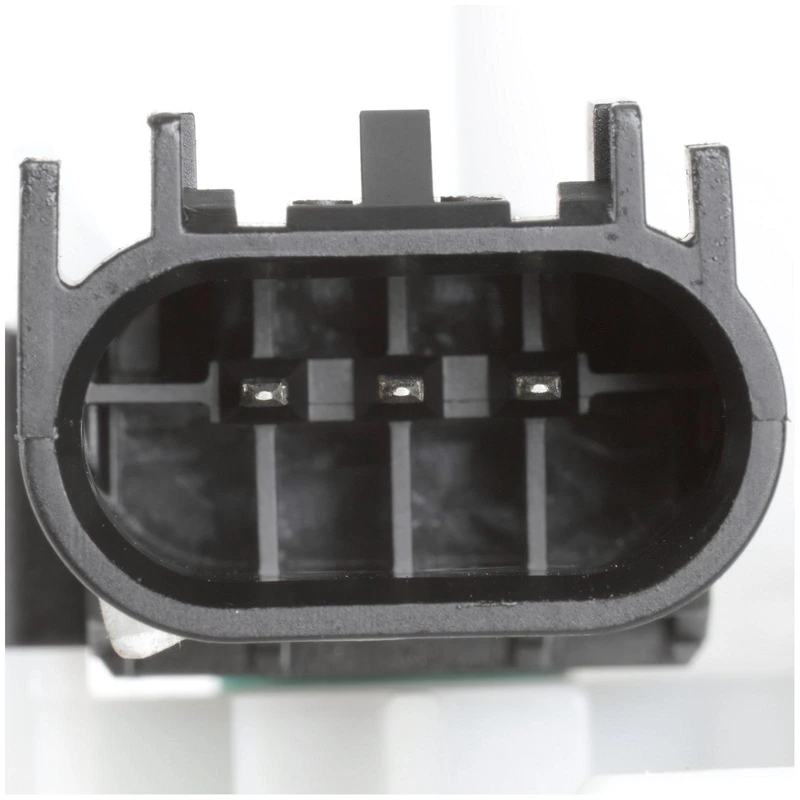

Connector Gender
Female
Connector Quantity
1
Connector Shape
Rectangle
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
80
Minimum Flow Rating (gph)
26
Minimum Pressure (PSI)
58
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
3
Outlet Type
Quick Connect
Package Contents

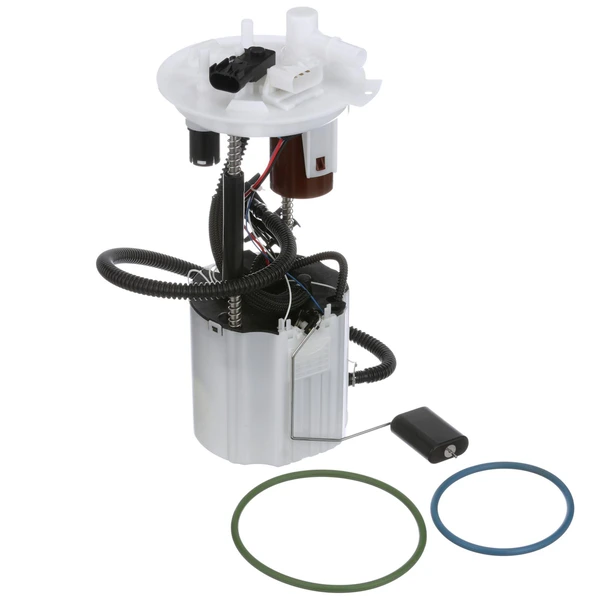

Fuel Pump Module Assembly with Float Arm, Seals, Instruction Sheet
Pressure Sensor included
Yes
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
250
Resistance Ohms Full (Ohms)
40
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all
About this item
Delphi, a globally renowned OE manufacturer with over a century of expertise, constructs all its fuel pumps to the same rigorous OE standards, incorporating the latest OE technology enhancements into every aftermarket unit. Delphi OE replacement fuel pumps are guaranteed to deliver outstanding pumping ability and excellent pressure performance using less electrical power, making them a trusted choice for the world's top automakers.

● Free Shipping & Exclusive Guarantee: In contrast to competitors' websites with high shipping costs, we offer free shipping and up to 3 years of warranty protection for your Delphi fuel pump.
● Gauge Accuracy: Delphi's fuel pumps are meticulously aligned with OE specifications for empty float height and float retention, ensuring accurate fuel gauge readings.
● Validated Vehicle Fit: Delphi parts undergo comprehensive validation, testing, and matching to the correct vehicle application. Their innovative design and superior durability also result in low failure rates.
● Premium Components: Our Delphi fuel pump comes equipped with a full suite of top-tier accessories, including the fuel sending unit, fuel filter, and regulator.
● Optimized Fuel Delivery: Delphi fuel pumps restore rapid pressure performance and maintain system integrity, delivering enhanced pumping with reduced energy input, while their lowered current draw has minimal impact on the vehicle's electrical system.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
19153219 - GENERAL MOTORS, SATURN, ACDELCO
19257480 - GENERAL MOTORS, SATURN
19153222 - GENERAL MOTORS, SATURN
19300286 - GENERAL MOTORS, SATURN
19300283 - GENERAL MOTORS, SATURN
FG1740 - DELPHI
M100097 - ACDELCO
SP6645M - SPECTRA PREMIUM
M10226 - ACDELCO
E3845M - AIRTEX
E3846M - AIRTEX
SP6642M - SPECTRA PREMIUM
DFG1740 - AUTOZONE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Saturn
2008 - 2009SaturnVue
2008 - 2009SaturnVue
2008 - 2009SaturnVue
2009 - 2009SaturnVue
2010 - 2010SaturnVue
