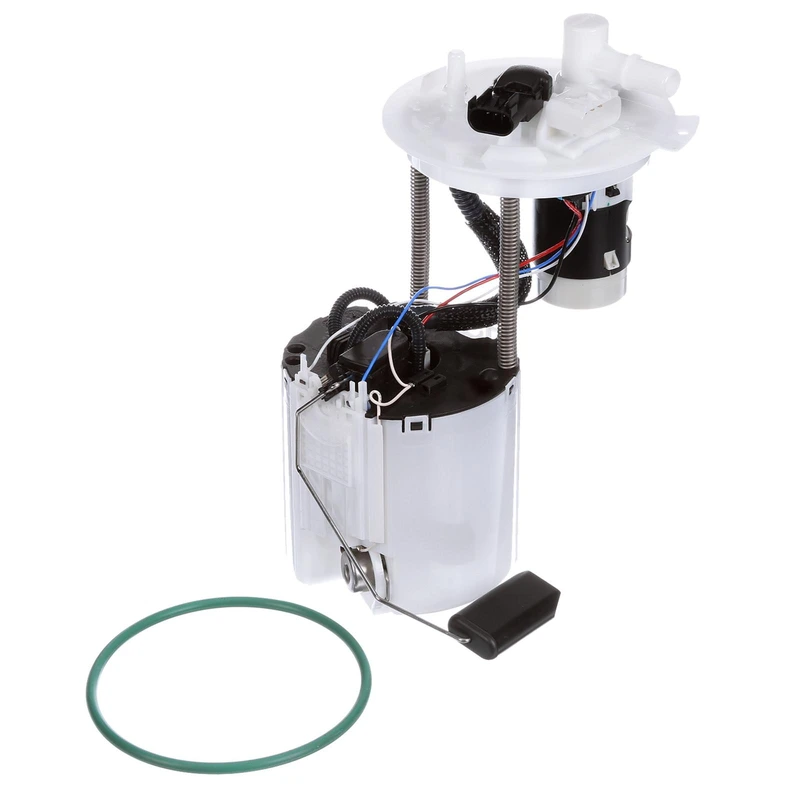

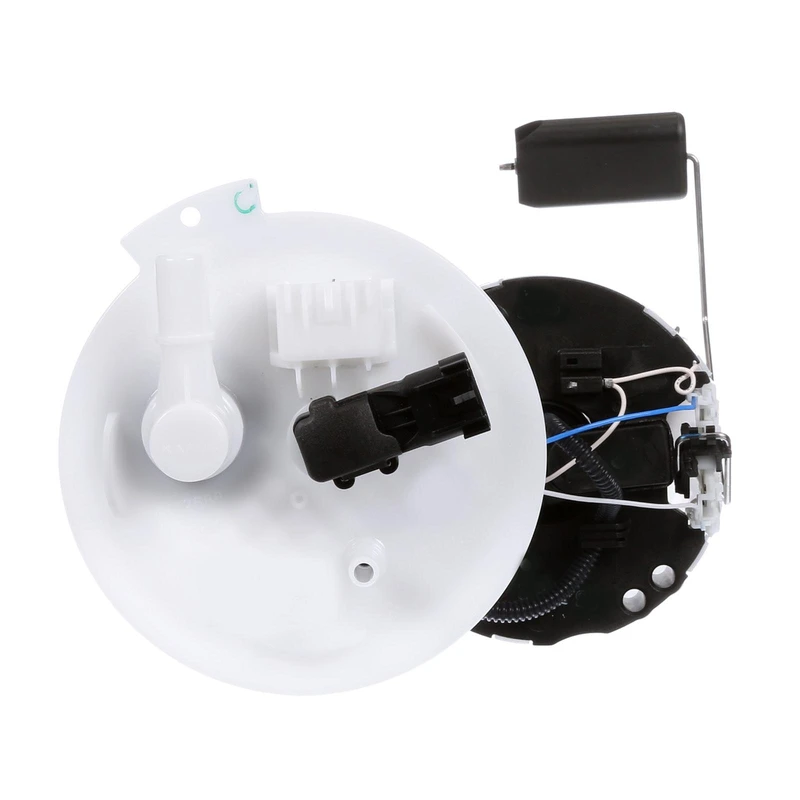

Fuel Pump Module Assembly - Delphi FG1737
Part # FG1737
Item # 1001VN5V
$353.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 11
- Average Flow Rating (gph)
- 35
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 84
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 250
- Resistance Ohms Full (Ohms)
- 40
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a global OE manufacturer with over a century of expertise, builds all its fuel pumps to the same rigorous OE standards, incorporating the latest OE technology enhancements into every aftermarket unit. Delphi OE replacement fuel pumps are guaranteed to deliver outstanding pump ability and generate excellent pressure using less electrical power, making them a trusted choice for the world's top automakers.
● Free Shipping & Exclusive Guarantee: In contrast to websites charging high shipping fees, we provide free shipping and up to 3 years of warranty service for your Delphi fuel pump.
● Gauge Accuracy: Delphi's fuel pumps are meticulously aligned with OE specifications for empty float height and float retention, ensuring accurate fuel gauge readings.
● Validated Vehicle Fit: Delphi parts undergo comprehensive validation, testing, and matching to the correct vehicle application. Their innovative design and superior durability also result in low failure rates.
● Premium Components: Our Delphi fuel pump offers a full suite of top-tier accessories, including the fuel sending unit, fuel filter, and regulator.
● Optimized Fuel Delivery: Delphi fuel pumps restore rapid pressure performance and maintain system integrity, delivering enhanced pumping with reduced energy input, while their lowered current draw has minimal impact on the vehicle's electrical system.
Delphi, a global OE manufacturer with over a century of expertise, builds all its fuel pumps to the same rigorous OE standards, incorporating the latest OE technology enhancements into every aftermarket unit. Delphi OE replacement fuel pumps are guaranteed to deliver outstanding pump ability and generate excellent pressure using less electrical power, making them a trusted choice for the world's top automakers.
● Free Shipping & Exclusive Guarantee: In contrast to websites charging high shipping fees, we provide free shipping and up to 3 years of warranty service for your Delphi fuel pump.
● Gauge Accuracy: Delphi's fuel pumps are meticulously aligned with OE specifications for empty float height and float retention, ensuring accurate fuel gauge readings.
● Validated Vehicle Fit: Delphi parts undergo comprehensive validation, testing, and matching to the correct vehicle application. Their innovative design and superior durability also result in low failure rates.
● Premium Components: Our Delphi fuel pump offers a full suite of top-tier accessories, including the fuel sending unit, fuel filter, and regulator.
● Optimized Fuel Delivery: Delphi fuel pumps restore rapid pressure performance and maintain system integrity, delivering enhanced pumping with reduced energy input, while their lowered current draw has minimal impact on the vehicle's electrical system.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A33163 - PRECISION FUEL PUMPS, PRECISION FUEL
E4033M - CARQUEST, AIRTEX
MU2103 - ACDELCO
13510673 - GENERAL MOTORS
DFG1737 - AUTOZONE
M100035 - ACDELCO
FG1737 - DELPHI
P76788M - CARTER
13580532 - GENERAL MOTORS
SP4079M - SPECTRA PREMIUM
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Chevrolet
| 2011 - 2013 | Chevrolet | Cruze |
| 2014 - 2015 | Chevrolet | Cruze |
| 2016 - 2016 | Chevrolet | Cruze Limited |
