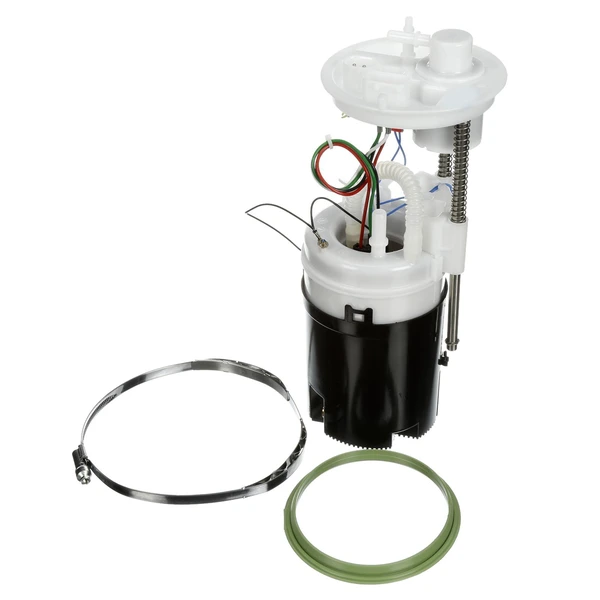

Fuel Pump Module Assembly - Delphi FG1689
Part # FG1689
Item # 1001VLS4
$475.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 13
- Average Flow Rating (gph)
- 55
- Connector Gender
- Female
- Connector Quantity
- 2
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 43
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Clamp, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 990
- Resistance Ohms Full (Ohms)
- 51
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a global OE manufacturer with over 100 years of experience, builds all its fuel pumps to the same rigorous OE standards, incorporating the latest OE technology enhancements into every aftermarket unit. Delphi OE replacement fuel pumps are guaranteed to deliver outstanding pump ability and generate excellent pressure using less electrical power, making them a trusted choice for the world's top automakers.
● Free shipping & Exclusive Guarantee: Unlike other websites with high shipping costs, we offer free shipping and up to 3 years of warranty service for your Delphi fuel pump.
● Gauge Accuracy: Delphi's fuel pumps precisely match OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Validated Vehicle Fit: Delphi parts are thoroughly validated, tested, and matched to the correct vehicle application. Their innovative design and superior durability also result in low failure rates.Precise Fuel
● Premium components: Our Delphi fuel pump offers a full suite of top-tier accessories, including the fuel sending unit, fuel filter, and regulator.
● Optimized Fuel Delivery: Delphi fuel pumps restore fast pressure performance and system integrity, delivering better pumping with less energy, while their lower current draw has a minimal impact on the vehicle's electrical system.
Delphi, a global OE manufacturer with over 100 years of experience, builds all its fuel pumps to the same rigorous OE standards, incorporating the latest OE technology enhancements into every aftermarket unit. Delphi OE replacement fuel pumps are guaranteed to deliver outstanding pump ability and generate excellent pressure using less electrical power, making them a trusted choice for the world's top automakers.
● Free shipping & Exclusive Guarantee: Unlike other websites with high shipping costs, we offer free shipping and up to 3 years of warranty service for your Delphi fuel pump.
● Gauge Accuracy: Delphi's fuel pumps precisely match OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Validated Vehicle Fit: Delphi parts are thoroughly validated, tested, and matched to the correct vehicle application. Their innovative design and superior durability also result in low failure rates.Precise Fuel
● Premium components: Our Delphi fuel pump offers a full suite of top-tier accessories, including the fuel sending unit, fuel filter, and regulator.
● Optimized Fuel Delivery: Delphi fuel pumps restore fast pressure performance and system integrity, delivering better pumping with less energy, while their lower current draw has a minimal impact on the vehicle's electrical system.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
DFG1689 - AUTOZONE
16117195474, 16 11 7 195 474 - BMW
E8960M - AIRTEX
FG1689 - DELPHI
16117212585, 16 11 7 212 585 - BMW
16117212633, 16 11 7 212 633 - BMW
16114858372, 16 11 4 858 372 - BMW
SP5155M - SPECTRA PREMIUM
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (13)vehicles
All
BMW
| 2008 - 2014 | BMW | X6 |
| 2010 - 2010 | BMW | X5 |
| 2011 - 2013 | BMW | X5 |
| 2011 - 2016 | BMW | X5 |
| 2015 - 2016 | BMW | X5 |
| 2015 - 2016 | BMW | X6 |
| 2015 - 2016 | BMW | X6 |
| 2017 - 2017 | BMW | X5 |
| 2017 - 2017 | BMW | X6 |
| 2018 - 2018 | BMW | X5 |
| 2018 - 2018 | BMW | X5 |
| 2018 - 2019 | BMW | X6 |
| 2018 - 2019 | BMW | X6 |
