Delphi

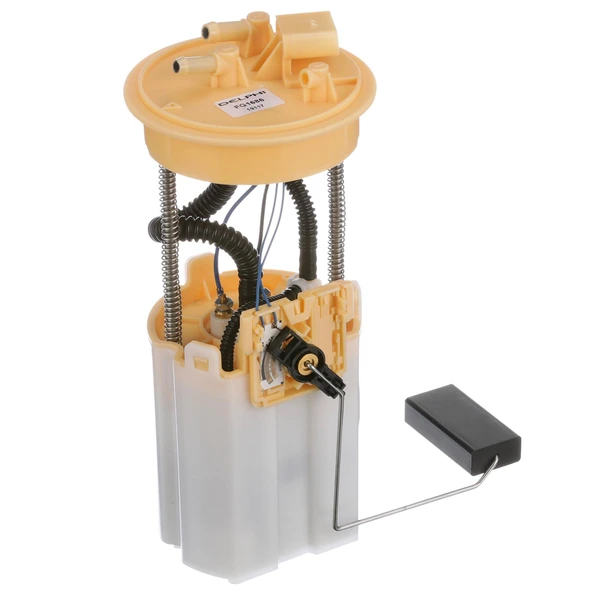

Fuel Pump Module Assembly - Delphi FG1686

Part # FG1686
Item # 1001VRD1
$486.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
10
Average Flow Rating (gph)
37

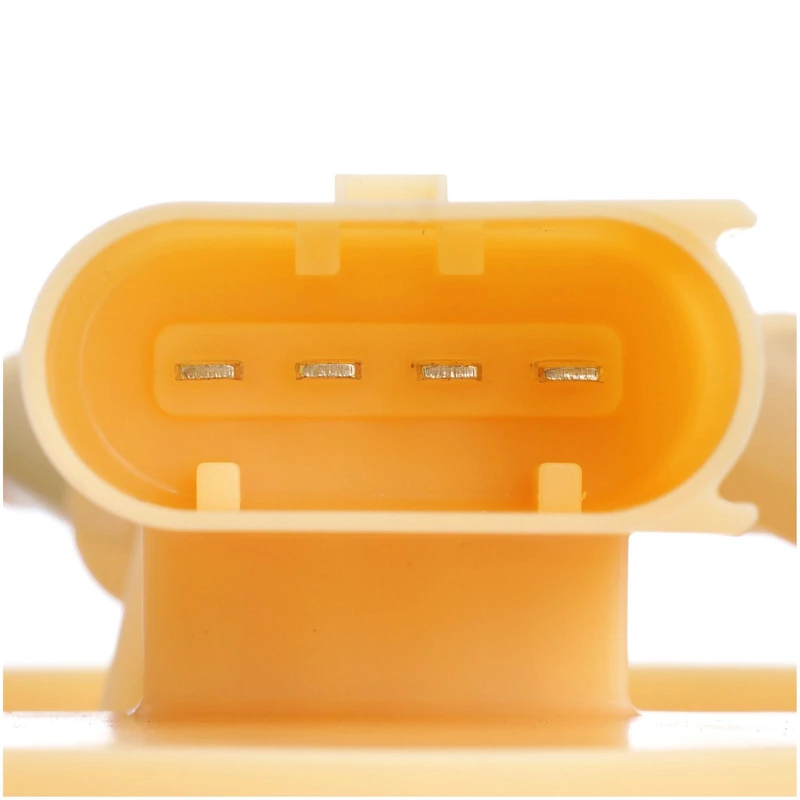

Connector Gender
Female
Connector Quantity
1
Connector Shape
Oval
Fuel Filter Included
No
Fuel Type
Diesel
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
101
Minimum Pressure (PSI)
62
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.313
Outlet Quantity
2
Outlet Type
Hose Bead
Package Contents

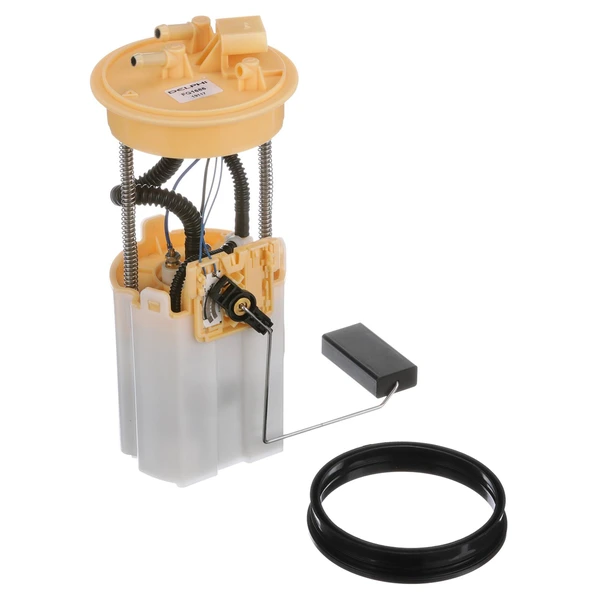

Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty (Ohms)
550
Resistance Ohms Full (Ohms)
51
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all

About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free Shipping & Exclusive Guarantee: Enjoy the convenience of free shipping and the assurance of our 3-year exclusive warranty on your Delphi fuel pump.
● Comprehensive Accessories: The Delphi fuel pump includes a full selection of high-quality accessories like as the fuel-sending unit.
● Gauge Accuracy: Delphi's fuel pumps are meticulously aligned with OE standards for empty float height and retention, ensuring accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps recover rapid pressure performance and maintain system integrity, offering enhanced pumping with reduced energy input, while their lowered current draw has minimal impact on the vehicle's electrical system.
● OE-Design Connector: The OE-design connector and body harness are optimized to ensure exceptional performance.
● Validated Vehicle Fit: Delphi's validated parts result from their rigorous matching to your specific vehicle.

Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30318 - PRECISION FUEL PUMPS, PRECISION FUEL
E7201M - AIRTEX
DFG1686 - AUTOZONE
69366 - BOSCH
FG1686 - DELPHI
P76502M - CARTER
SP7043M - SPECTRA PREMIUM
5119605AA, 5119 605AA - CHRYSLER

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Dodge
2003 - 2006DodgeSprinter 2500
2003 - 2006DodgeSprinter 3500
