Delphi

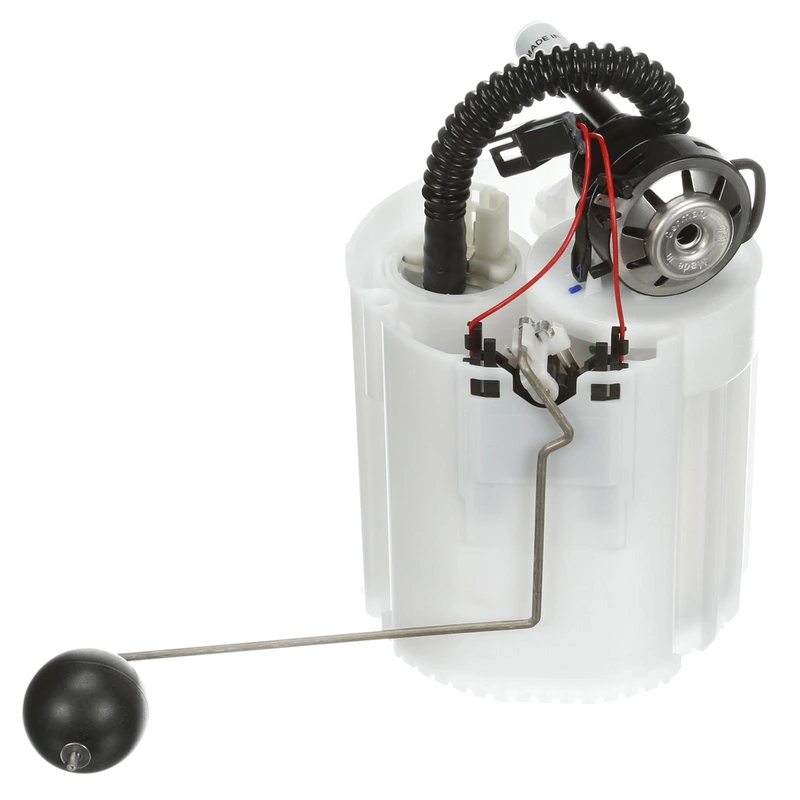

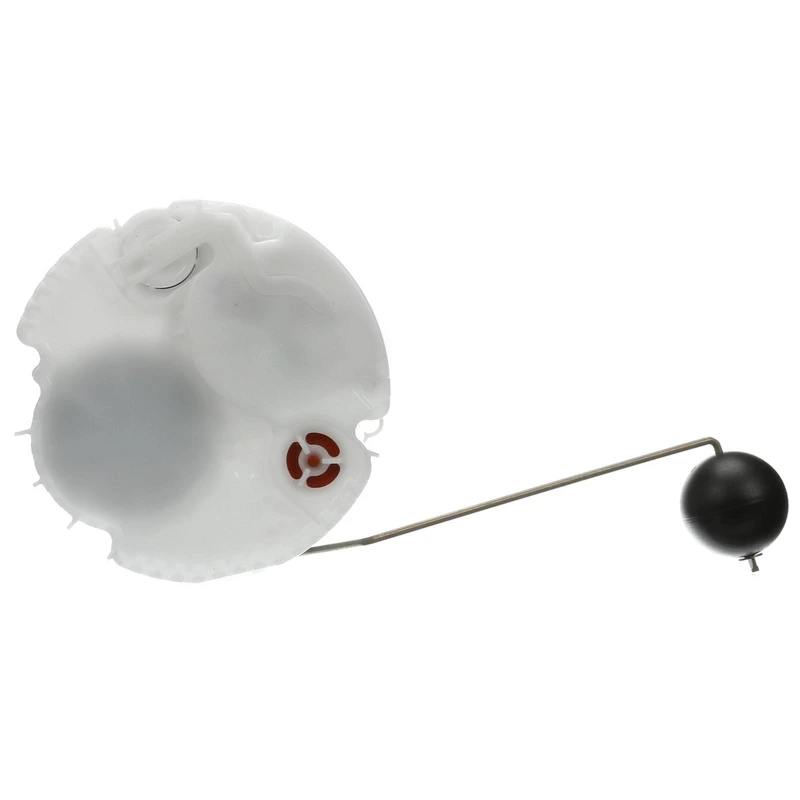

Fuel Pump Module Assembly - Delphi FG1682

Part # FG1682
Item # 1001VNSD
$672.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
12
Average Flow Rating (gph)
26
Connector Gender
Female
Connector Quantity
2
Connector Shape
Rectangle
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
75
Minimum Pressure (PSI)
73
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.313
Outlet Quantity
1
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
386
Resistance Ohms Full (Ohms)
16
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
2
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all
About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free Shipping & Exclusive Guarantee: Enjoy the convenience of free shipping and the assurance of our 3-year exclusive warranty when you choose a Delphi fuel pump.
● Comprehensive Accessories: The Delphi fuel pump features a full selection of high-quality accessories, including the fuel-sending unit, fuel filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps are meticulously aligned with OE standards for empty float height and retention, delivering accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps recover rapid pressure performance and maintain system integrity, offering enhanced pumping with reduced energy input, while their lowered current draw has minimal impact on the vehicle's electrical system.
● OE-Design Connector: The OE-design connector and body harness are optimized to ensure exceptional performance.
● Validated Vehicle Fit: Delphi's validated parts are the result of their rigorous matching to your specific vehicle.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
69742 - BOSCH
FG1682 - DELPHI
P76365M - CARTER
307947580, 30794758-0 - VOLVO
67946 - BOSCH
30794758 - VOLVO
E8847M - AIRTEX
307928790, 30792879-0 - VOLVO
SP5126M - SPECTRA PREMIUM
30792879 - VOLVO
DFG1682 - AUTOZONE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (14)vehicles
All
Volvo
2001 - 2003VolvoS60
2001 - 2003VolvoV70
2001 - 2004VolvoS60
2001 - 2004VolvoV70
2002 - 2002VolvoS60
2002 - 2002VolvoV70
2003 - 2003VolvoV70
2004 - 2004VolvoS60
2004 - 2006VolvoS60
2005 - 2005VolvoV70
2005 - 2006VolvoS60
2006 - 2006VolvoV70
2007 - 2007VolvoS60
2008 - 2009VolvoS60
